Headlamp Bracket Replacement

WARNING: This page is about a different car, the 2007 Pontiac Montana SV6, 2007 Chevrolet Uplander, and 2007 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

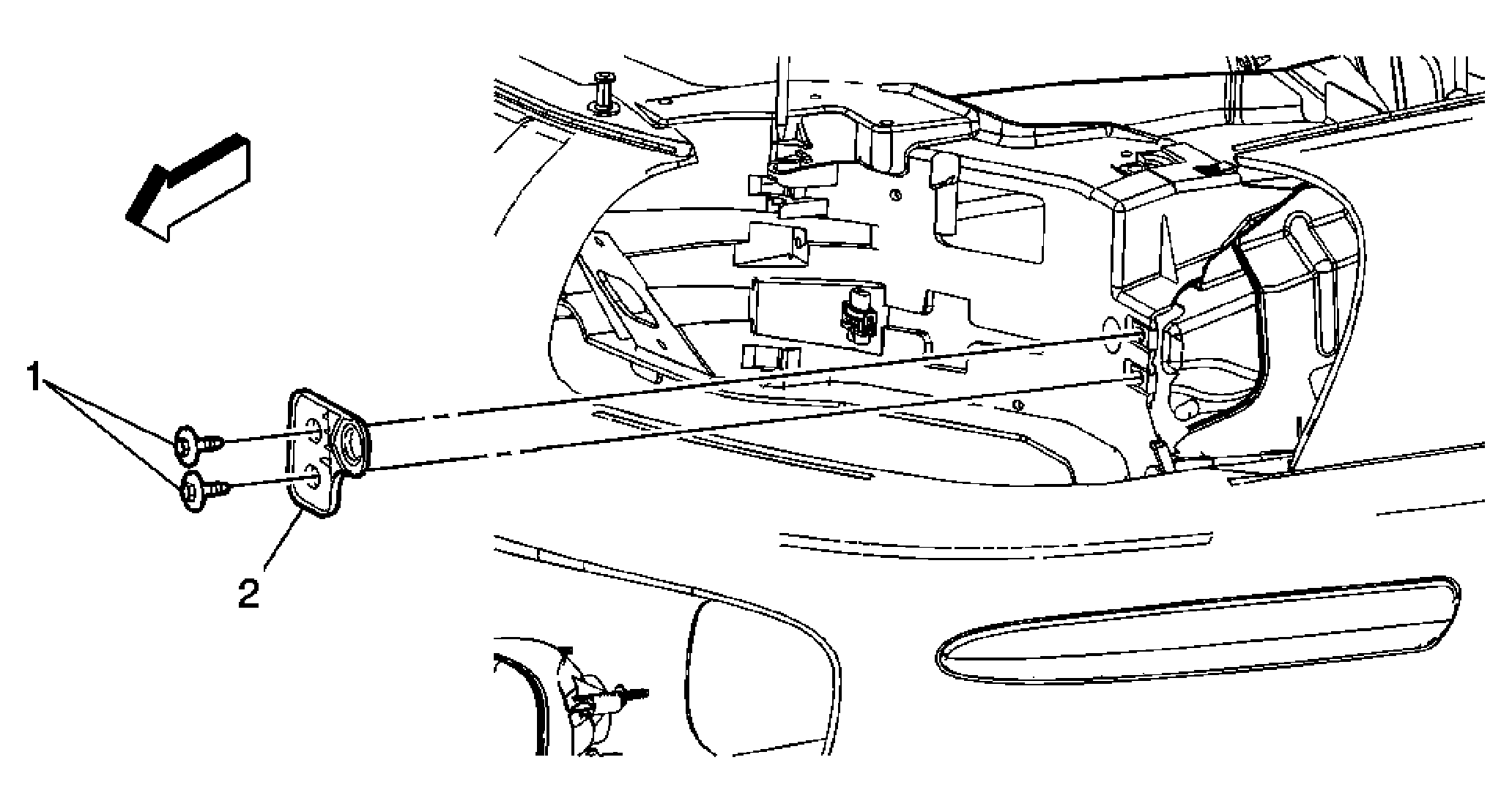

Fig 1: Headlamp Bracket

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove either the LF or RF headlamp assembly. Refer to Headlamp Assembly or Headlamp Bulb and/or Cornering, Sidemarker, Park, Turn Signal Bulb Replacement . Use a wax type marking pencil to outline the bracket assembly to the fender flange prior to removing the damaged bracket.
1	Headlamp Bracket Screws (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: Tighten the screws to 4.7 N.m (42 lb in)
2	Headlamp Bracket Tip: Use a wax type marking pencil to outline the bracket assembly to the fender flange prior to removing the damaged bracket.

Callout

Component Name

Preliminary Procedure

Remove either the LF or RF headlamp assembly. Refer to Headlamp Assembly or Headlamp Bulb and/or Cornering, Sidemarker, Park, Turn Signal Bulb Replacement .
Use a wax type marking pencil to outline the bracket assembly to the fender flange prior to removing the damaged bracket.

Headlamp Bracket Screws (Qty: 2)

NOTE: Refer to Fastener Notice .

Tighten: Tighten the screws to 4.7 N.m (42 lb in)

Headlamp Bracket
Tip: Use a wax type marking pencil to outline the bracket assembly to the fender flange prior to removing the damaged bracket.
