Console Front Trim Plate Replacement

WARNING: This page is about a different car, the 2007 Pontiac Montana SV6, 2007 Chevrolet Uplander, and 2007 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

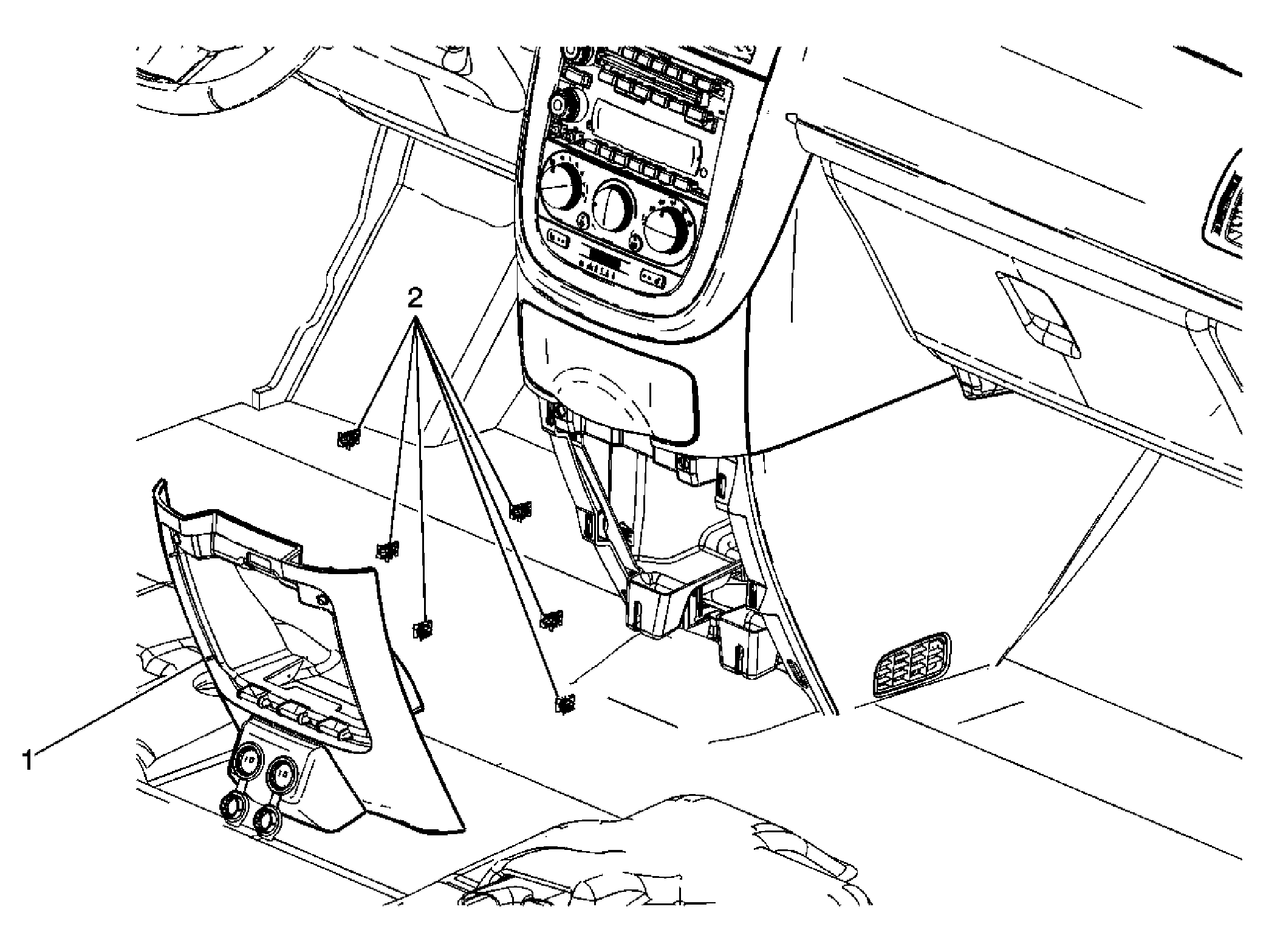

Fig 1: Console Front Trim Plate
GM1751089Courtesy of GENERAL MOTORS CORP.
Console Front Trim Plate Replacement

Callout Component Name
Preliminary Procedure:
Remove the front floor console compartment. Refer to Front Floor Console Compartment Replacement .
1 Console Front Trim Plate
Tip:  Disconnect the electrical connections.
2 Retainer Clips (Qty: 6)
