Installation Procedure

WARNING: This page is about a different car, the 2007 Pontiac Montana SV6, 2007 Chevrolet Uplander, and 2007 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

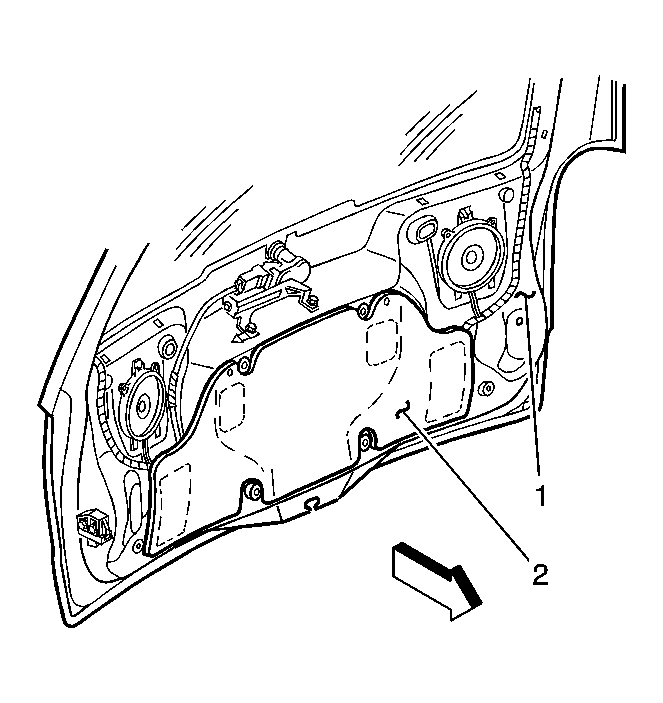

    Fig 1: View Of Liftgate Water Deflector
    GM1480611Courtesy of GENERAL MOTORS CORP.
  1. Position the water deflector (2) to the liftgate structure (1).
  2. Firmly press the sealing adhesive in order to secure the water deflector (2) to the liftgate structure (1).
  3. Install the liftgate trim panel to the liftgate. Refer to Liftgate Trim Panel Replacement .
