Installation Procedure

WARNING: This page is about a different car, the 2007 Pontiac Montana SV6, 2007 Chevrolet Uplander, and 2007 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

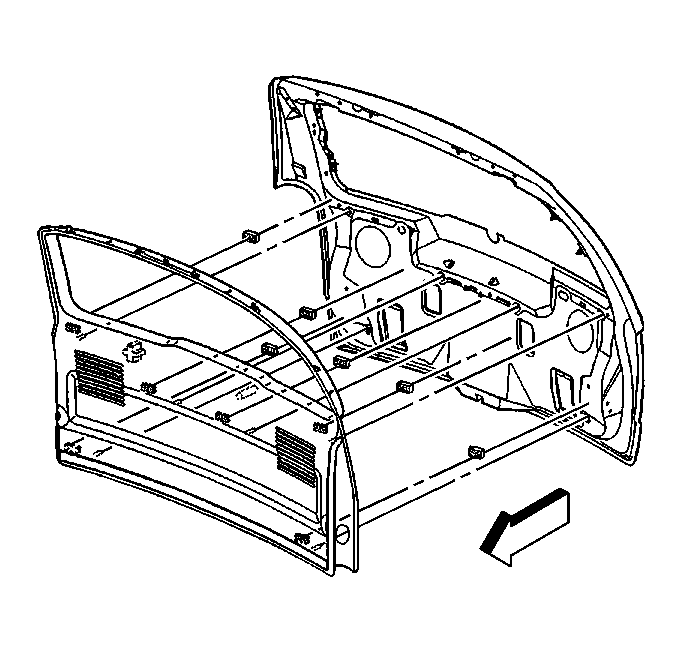

    Fig 1: View Of Trim Panel For Lift Gate
    GM313624Courtesy of GENERAL MOTORS CORP.
  1. Align the liftgate trim panel studs to the holes in the liftgate.
  2. Align the upper edge of the liftgate trim panel to the top center of the liftgate.
  3. Install the upper edge of the liftgate trim panel to the top center of the liftgate.
  4. Push on the liftgate trim panel in the four corners and center to secure the trim panel retainers.
  5. Install the liftgate pull strap. Refer to Liftgate Pull Strap Replacement .
  6. Install the right and left wedges on the liftgate.
  7. Close the liftgate.
