Data Link Connector (DLC) Schematics

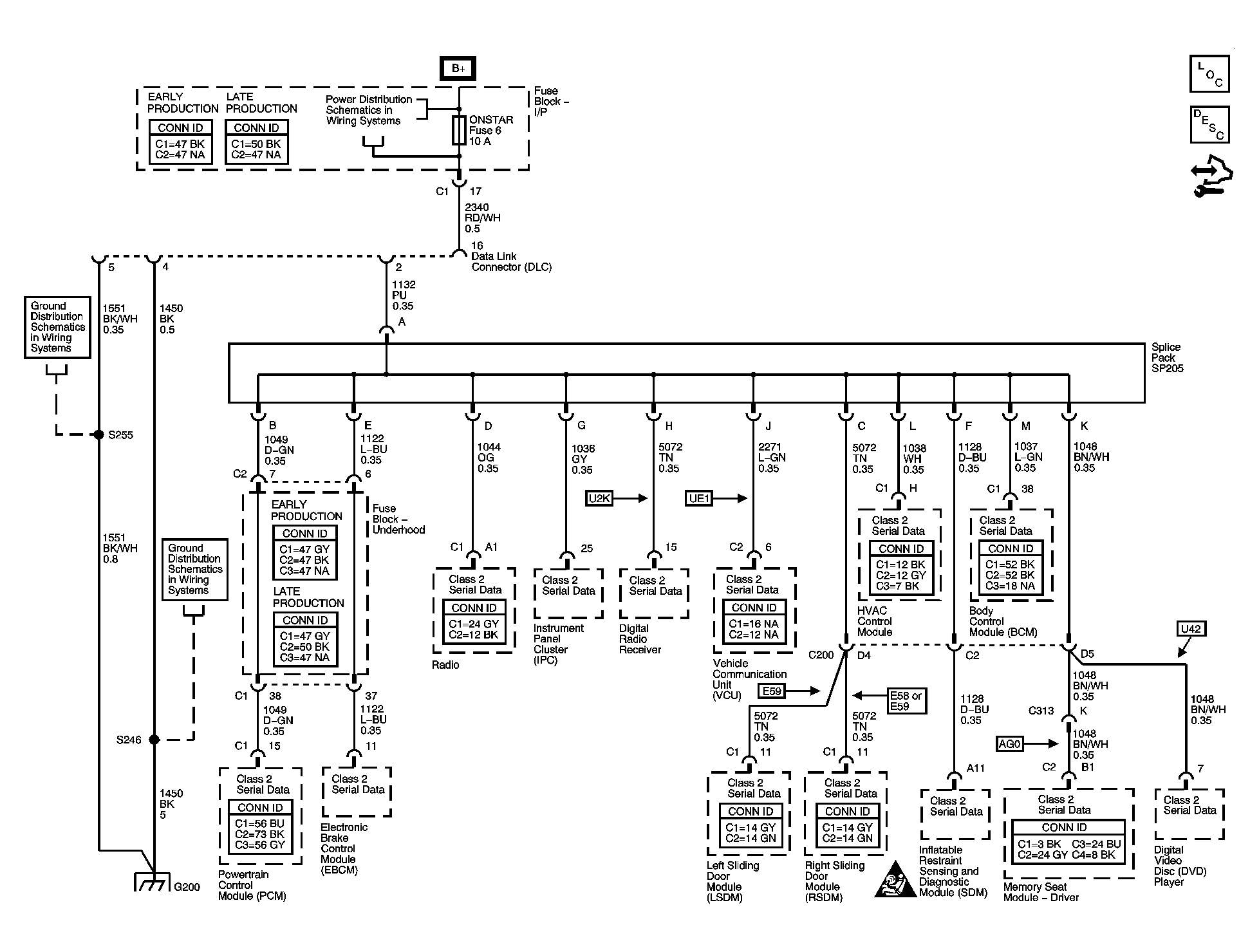

Fig 1: Data Link Connector (DLC) Schematic

GM1486386

Courtesy of GENERAL MOTORS CORP.
