Installation Procedure

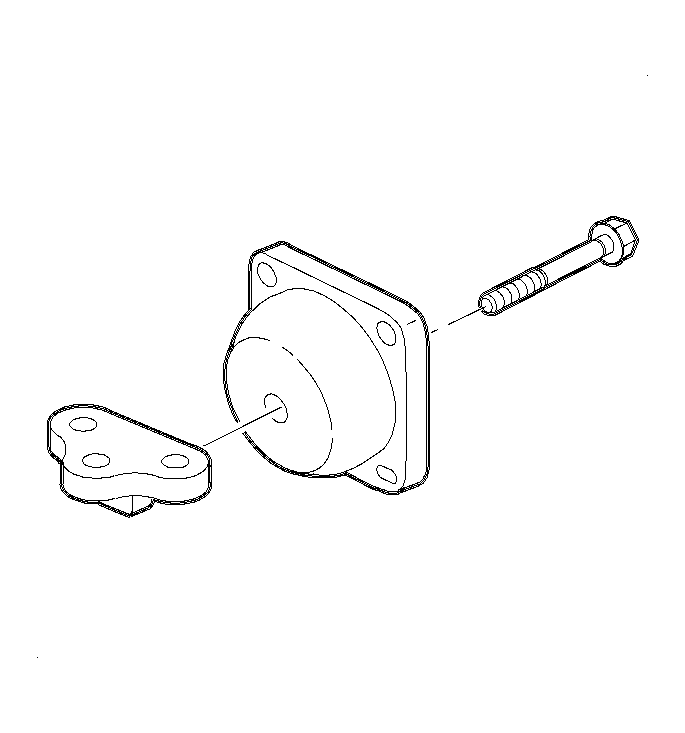

    Fig 1: Disassembling/Assembling Left Transaxle Mount
    GM892543Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Position the mount to the bracket and install the bolt.

    Tighten:  Tighten the mount bolt to 60 N.m (44 lb ft).

    2. Fig 2: Removing & Installing Rear Transaxle Mount
    GM891641Courtesy of GENERAL MOTORS CORP.
  2. Install the left transmission mount to the vehicle.

    Tighten:  Tighten the left transmission mount to body bolts to 20 N.m (15 lb ft).

    3. Fig 3: Locating Transmission Mount-To-Transmission Bolts
    GM891639Courtesy of GENERAL MOTORS CORP.
  3. Install the left transmission mount to body bolts.

    Tighten:  Tighten the bolts to 55 N.m (41 lb ft).

  4. Remove the engine support fixture.
    5. Fig 4: Removing & Installing Battery Tray
    GM886646Courtesy of GENERAL MOTORS CORP.
  5. Install the battery tray.

    Tighten:  Tighten the battery tray bolts to 15 N.m (11 lb ft).

  6. Install the underhood junction block. Refer to Underhood Electrical Center or Junction Block Replacement in Wiring Systems.
    7. Fig 5: View Of Battery, Fan Control Module & Battery Hold-Down Bracket
    GM886658Courtesy of GENERAL MOTORS CORP.
  7. Install the battery. Refer to Battery Replacement in Engine Electrical.
