Intermediate/Fourth Servo Removal

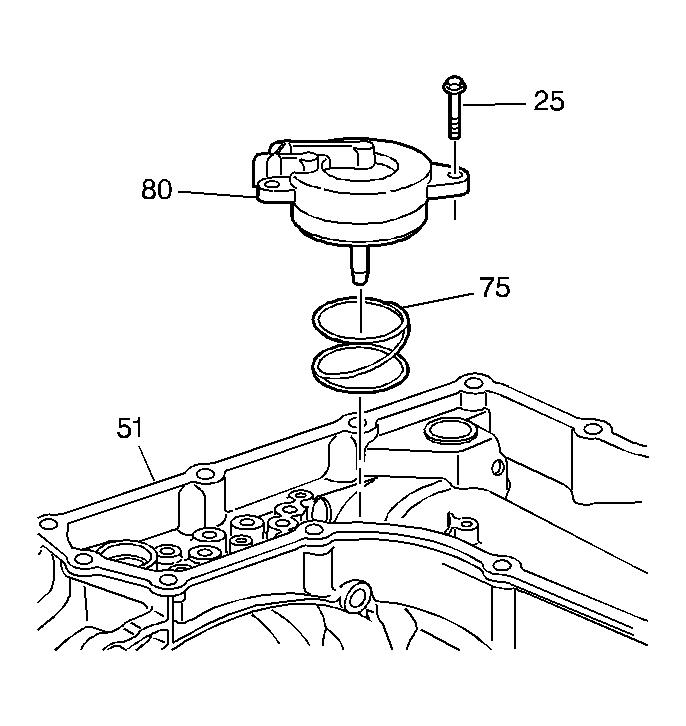

    Fig 1: Identifying Servo Components Inspection Areas
    GM20168Courtesy of GENERAL MOTORS CORP.
    NOTE: Remove bolts evenly, to prevent bore damage.
  1. Remove the three servo cover bolts (25).
  2. Remove the servo cover (Intermediate/Fourth) (80) assembly.
  3. Remove the servo return spring (75).
