Final Drive and Differential Assembly Install

Tools Required

J 36850  TRANSJEL™. See Special Tools .

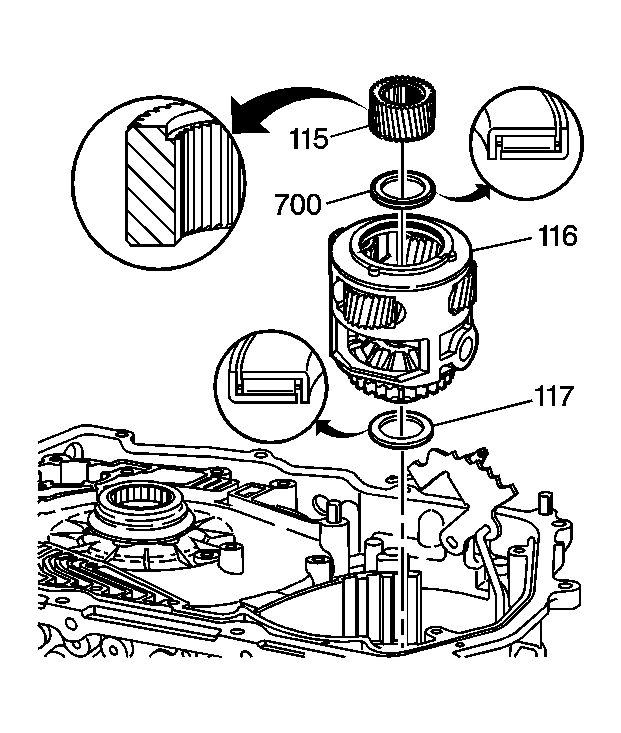

    Fig 1: Identifying Sun Gear Grooved Side Up
    GM20234Courtesy of GENERAL MOTORS CORP.
  1. Install the final drive carrier to case thrust bearing (117) onto the final drive carrier. Retain the bearing with J 36850  . See Special Tools .
  2. Install the complete final drive carrier assembly (116) into the transmission case (51).
    3. IMPORTANT: Install the sun gear with the grooved side up (flat side down).
  3. Install the final drive sun gear (115) into the final drive carrier (116).
