Driven Sprocket Support Assembly Removal

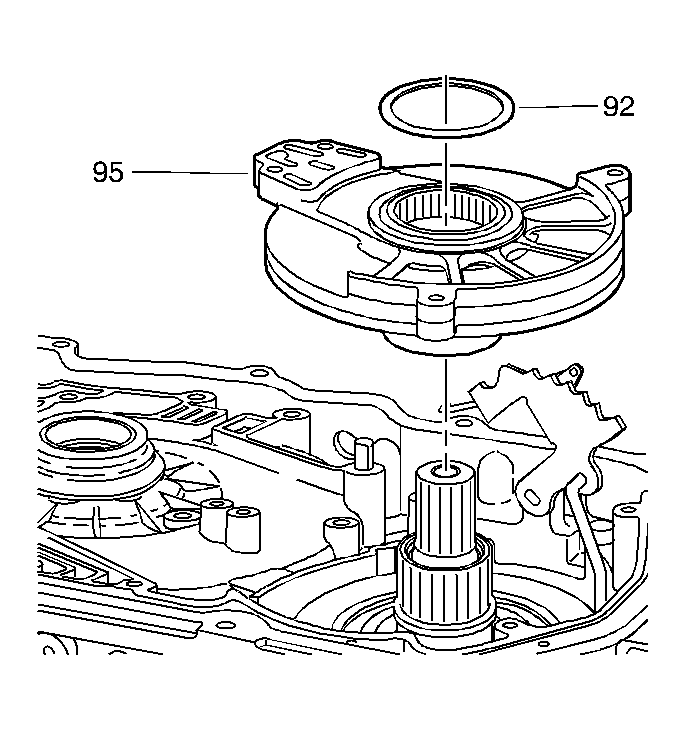

    Fig 1: Locating Driven Sprocket To Driven Sprocket Support Thrust Washer
    GM55108Courtesy of GENERAL MOTORS CORP.
  1. Remove the driven sprocket to driven sprocket support thrust washer (92).
  2. Remove the driven sprocket support assembly (95).
