Power and Grounding Component Views

Fig 1: Identifying Body Harness Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	SP103
2	Fuse Block - Underhood
3	SP105
4	Fuse Block - I/P - Right
5	Window Motor - Front Passenger
6	Window Switch - RR
7	SP401
8	G300
9	Window Switch - Front Passenger
10	Window Switch - Driver
11	Cigar Lighter
12	Window Switch - LR
13	Data Link Communication (DLC) Connector
14	Dimmer/Rear Compartment Lid Release Switch
15	Window Motor - Driver
16	Fuse Block - I/P - Left
17	SP191

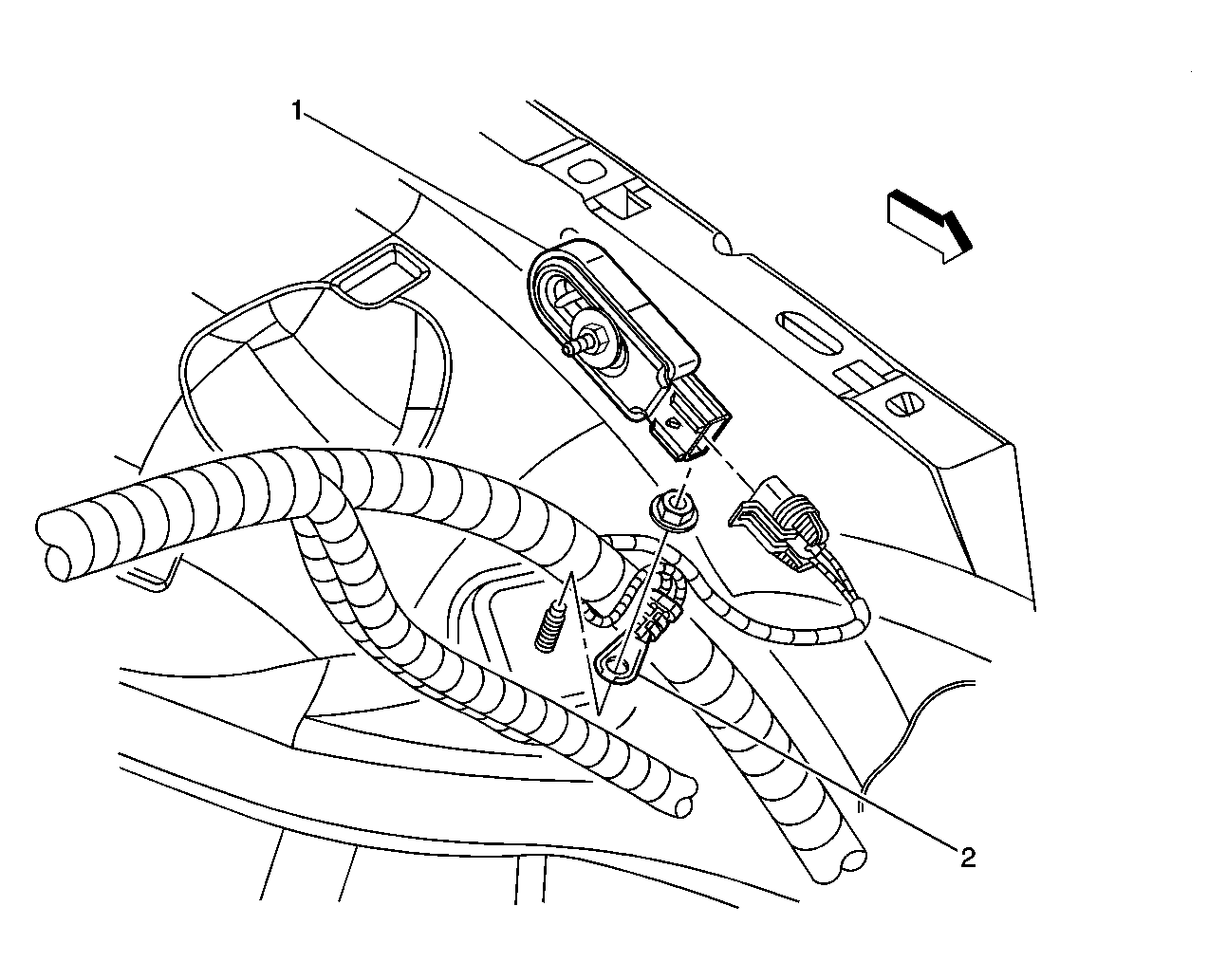

Fig 2: Identifying Components At Left Front Corner Of Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Daytime Running Lamp (DRL) Resistor
2	G105

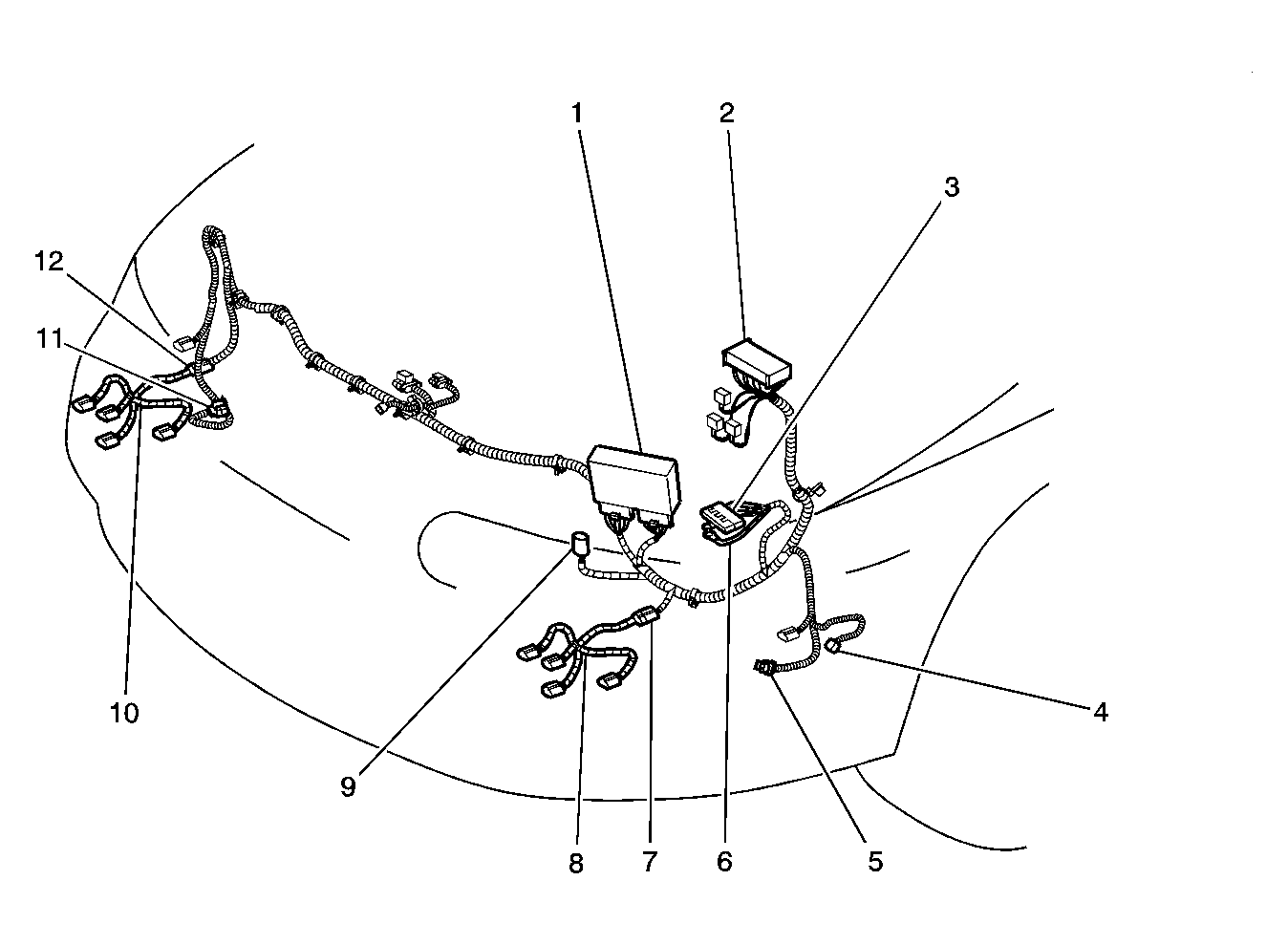

Fig 3: Identifying Forward Lamp Harness Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cooling Fan Control Module
2	Fuse Block - Underhood
3	SP103
4	Windshield Washer Fluid Level Switch Connector
5	Windshield Washer Fluid Pump Connector
6	G105
7	C103
8	Left Headlamp Harness
9	Ambient Air Temperature Sensor Connector
10	Right Headlamp Harness
11	Horn Connector
12	C102

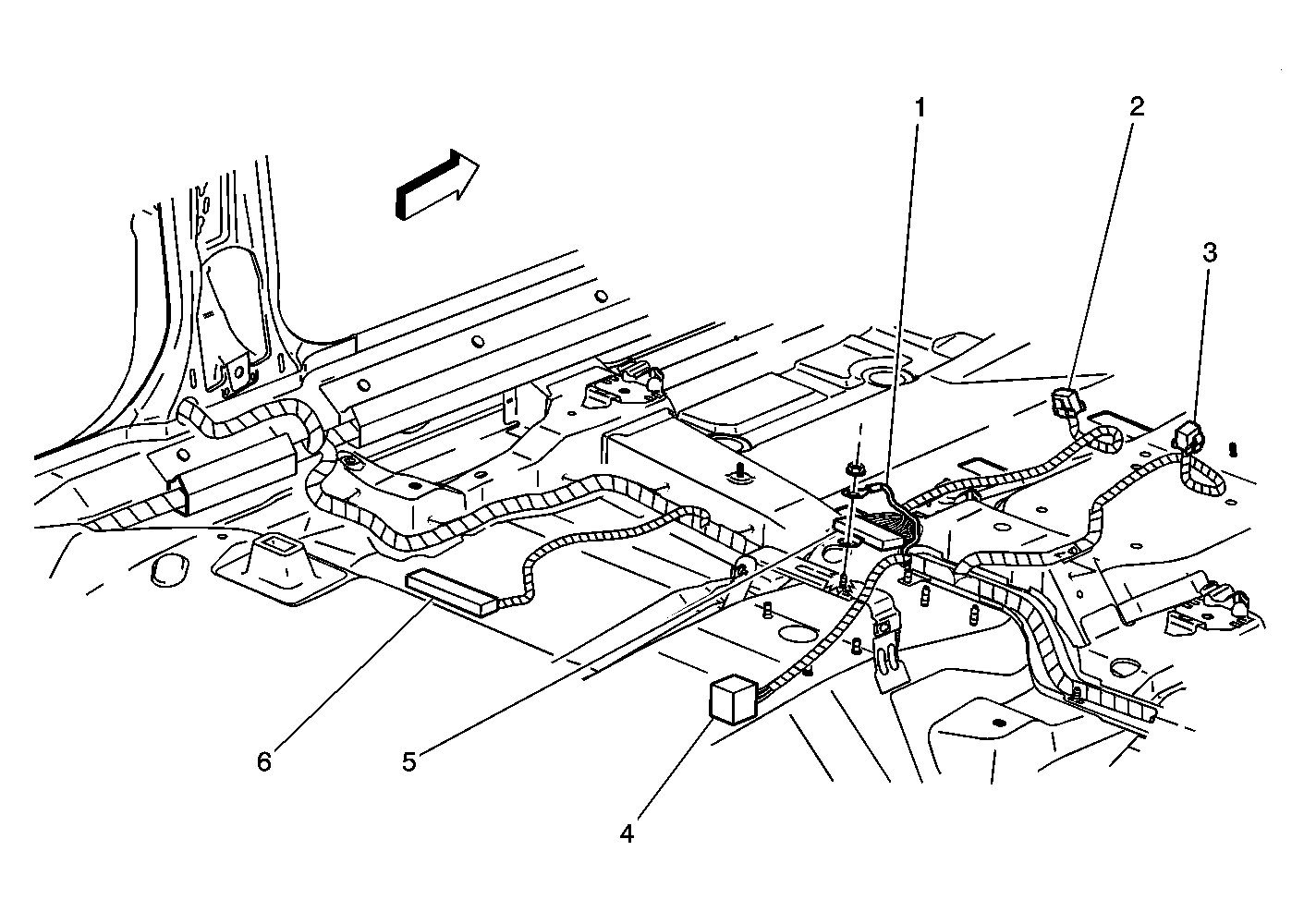

Fig 4: Identifying Components At Center Of Passenger Compartment Floor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G303
2	Window Switch - Driver Connector
3	Window Switch - Front Passenger Connector
4	Inflatable Restraint Sensing and Diagnostic Module (SDM) Connector
5	SP300
6	C305

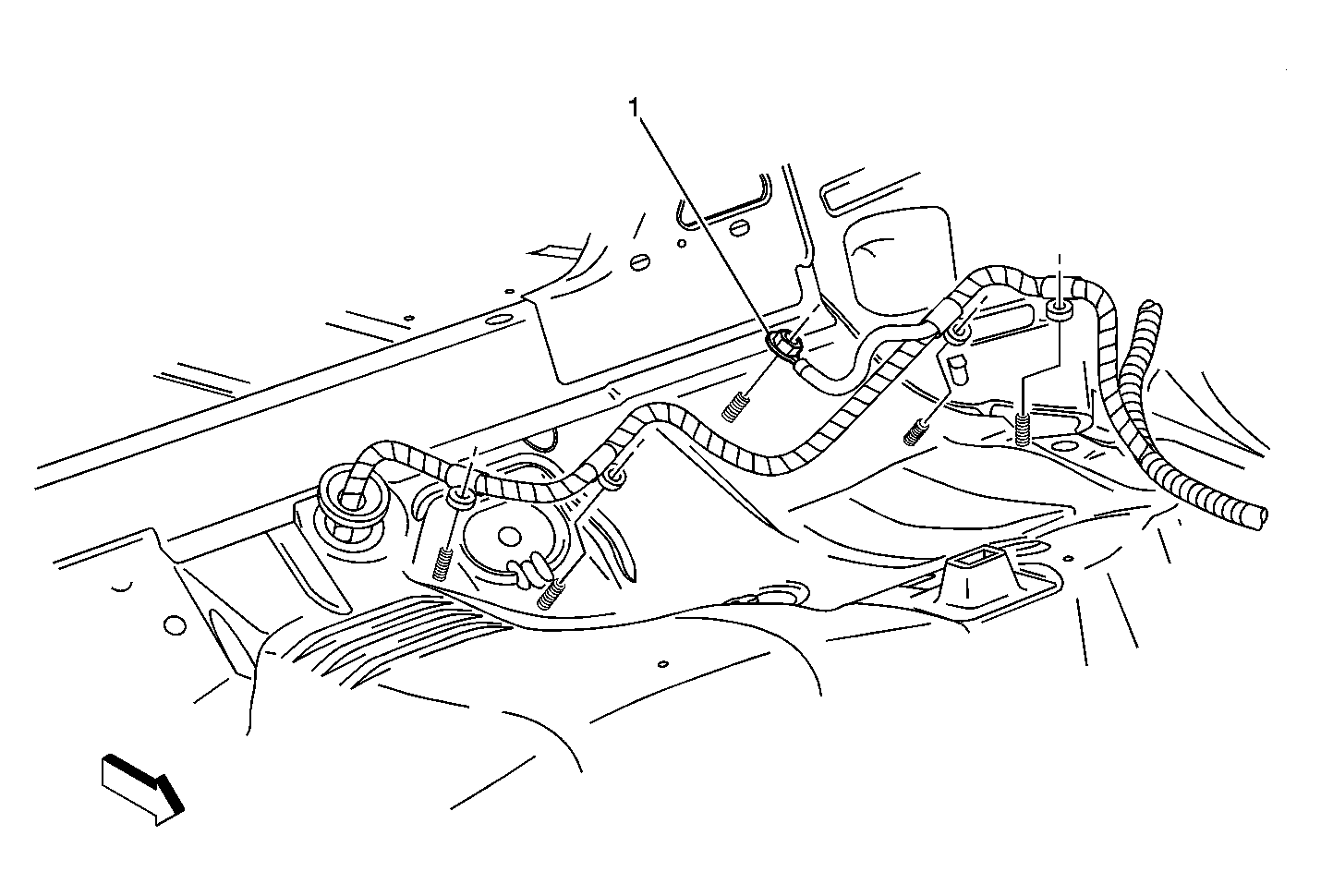

Fig 5: Identifying Components At Rear Of Passenger Compartment (Sedan)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G399

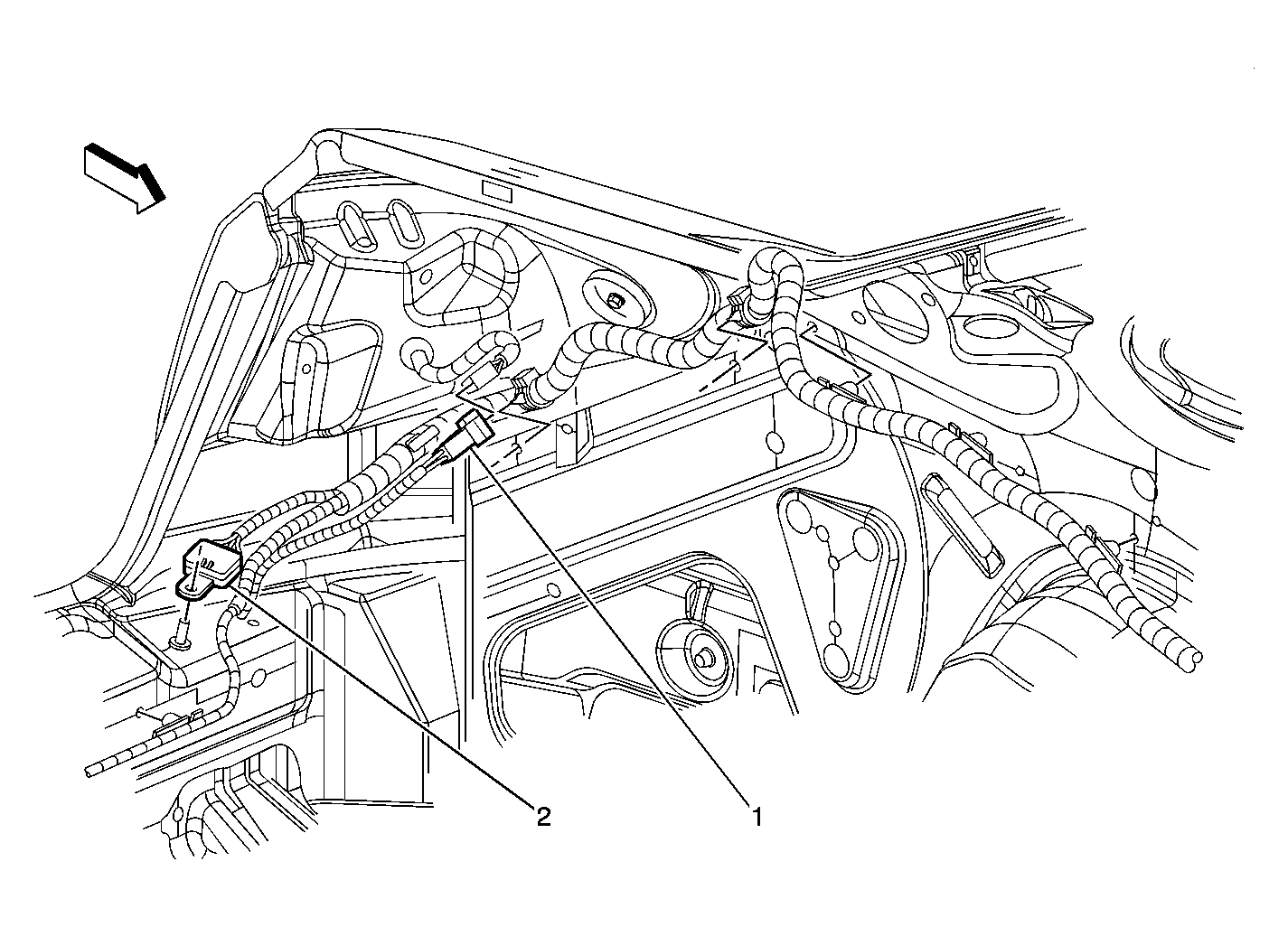

Fig 6: Identifying Components At Left Rear Corner Of Rear Compartment (Sedan)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C499
2	SP401
