Video System Schematics

WARNING: This page is about a different car, the 2004 Saturn L300. However, it is still accessible from the selected car via links, so may be relevant.

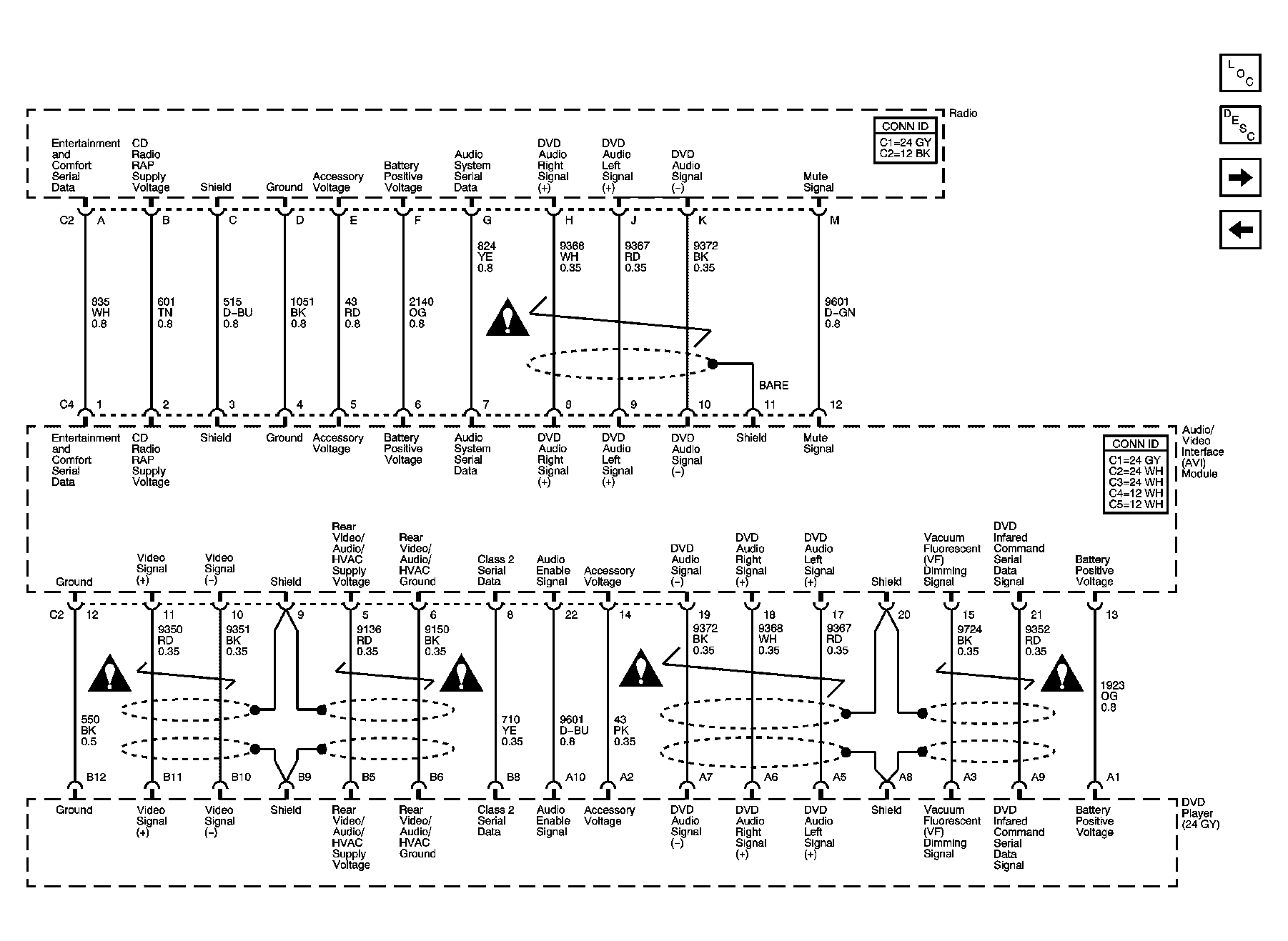

Fig 1: Video System Wiring Schematics

Courtesy of GENERAL MOTORS CORP.

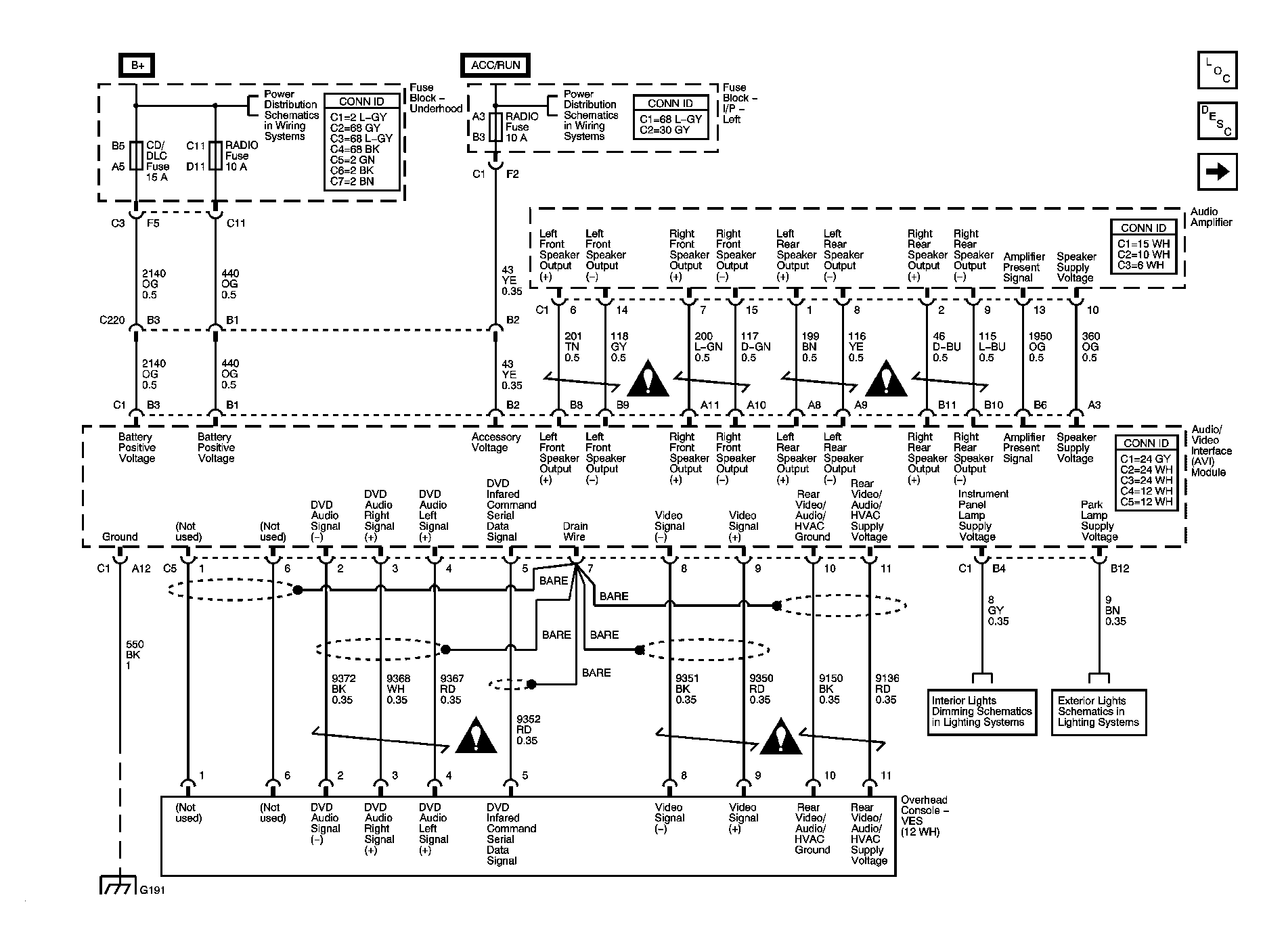

Fig 2: Radio & DVD Player Wiring Schematics

Courtesy of GENERAL MOTORS CORP.

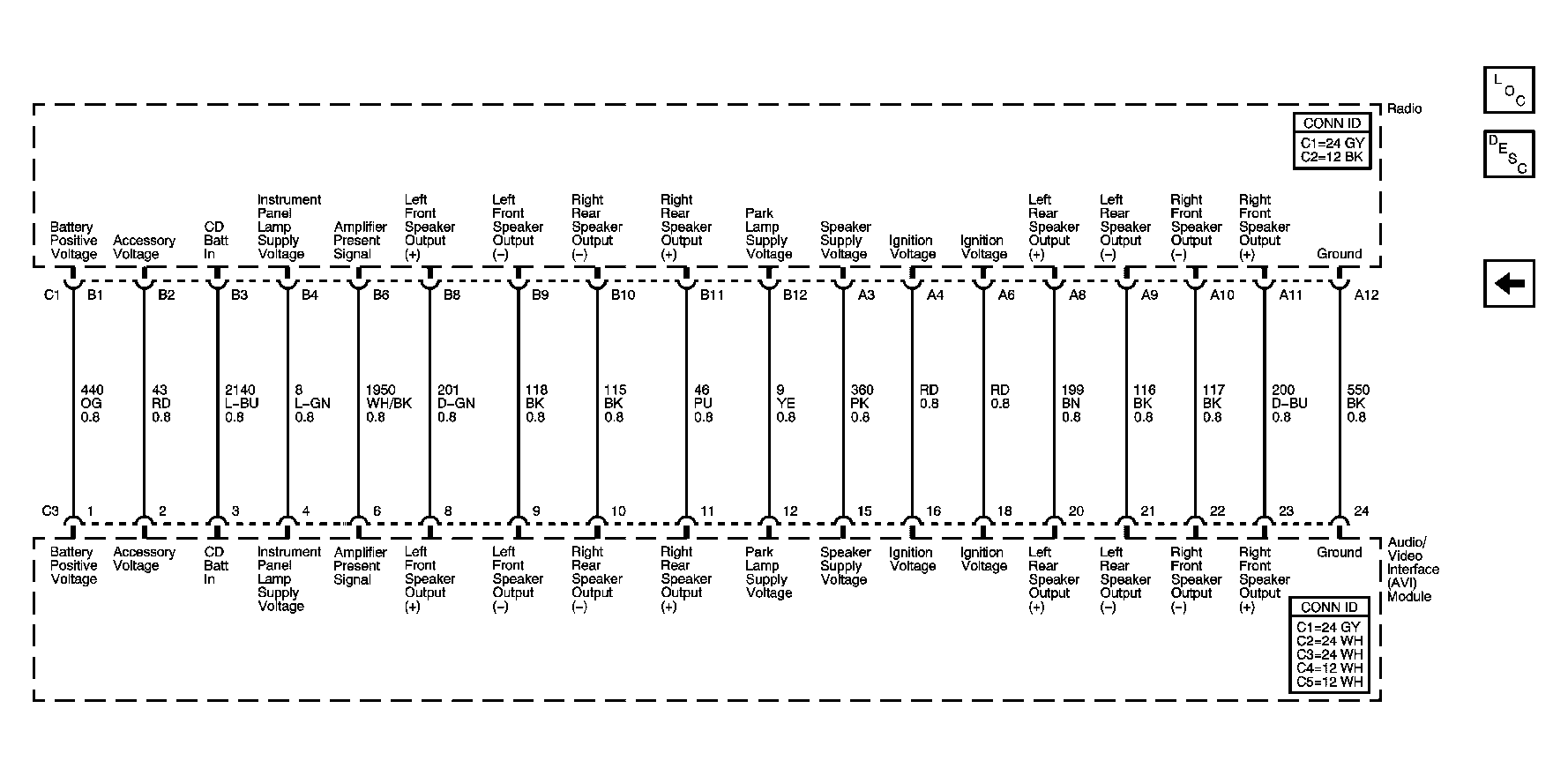

Fig 3: Radio Signals Wiring Schematic

Courtesy of GENERAL MOTORS CORP.
