Removal Procedure

WARNING: This page is about a different car, the 2004 Saturn L300. However, it is still accessible from the selected car via links, so may be relevant.

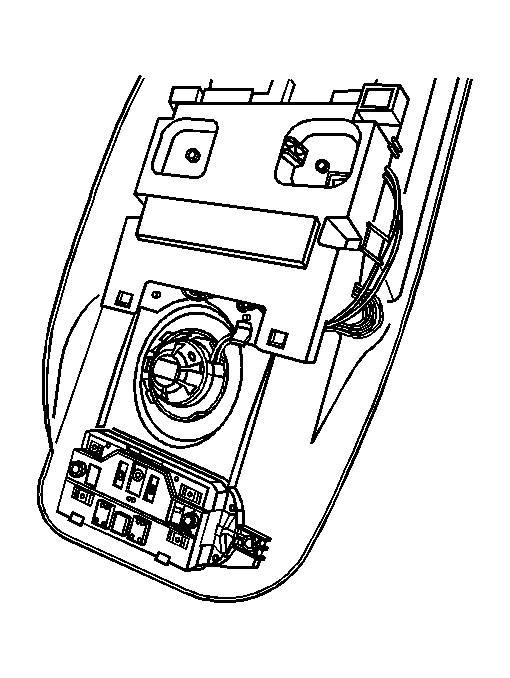

Lower the screen from the console.

Fig 1: Lowering Screen From Overhead Console
Courtesy of GENERAL MOTORS CORP.
Remove the dome light lens cover.

Fig 2: Removing Dome Light Lens Cover
Courtesy of GENERAL MOTORS CORP.
Remove the bulbs from the dome light.

Fig 3: Removing Bulbs From Dome Light
Courtesy of GENERAL MOTORS CORP.
Remove the screws from behind the screen.

Fig 4: Removing Screws From Overhead Console Behind Screen
Courtesy of GENERAL MOTORS CORP.
Remove the screws from the dome light.

Fig 5: Removing Screws From Dome Light
Courtesy of GENERAL MOTORS CORP.
Disconnect the electrical connectors from the overhead console.

Fig 6: Disconnecting Electrical Connectors From Overhead Console
Courtesy of GENERAL MOTORS CORP.
Remove the overhead console from the headliner.

Fig 7: Removing Overhead Console
Courtesy of GENERAL MOTORS CORP.
