DTC P0455: EVAP System Large Leak Detected: Notes

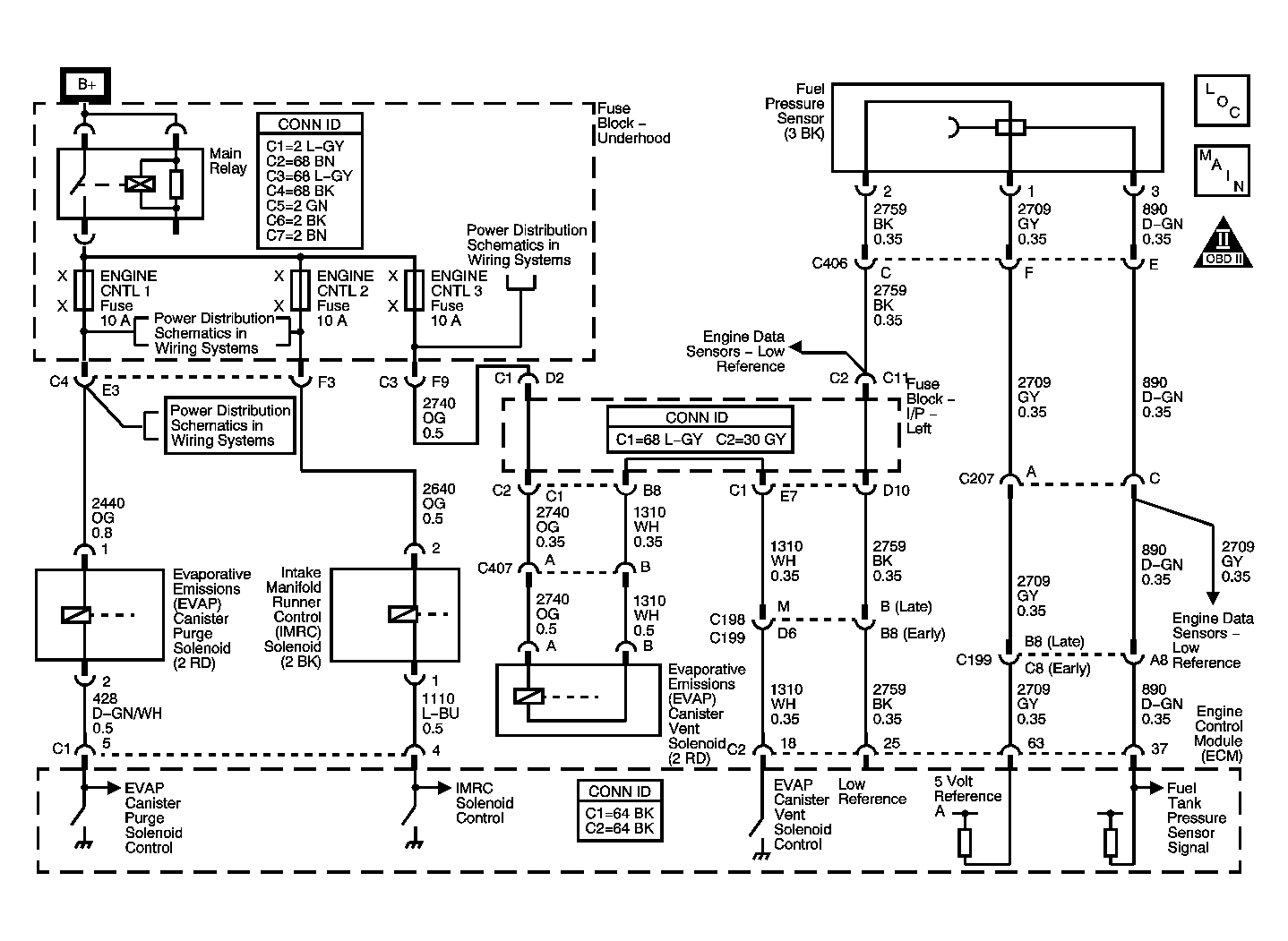

Fig 1: Evaporative Emission (EVAP) System Control Circuit Wiring Schematic

GM1247692

Courtesy of GENERAL MOTORS CORP.
