ABS Schematics

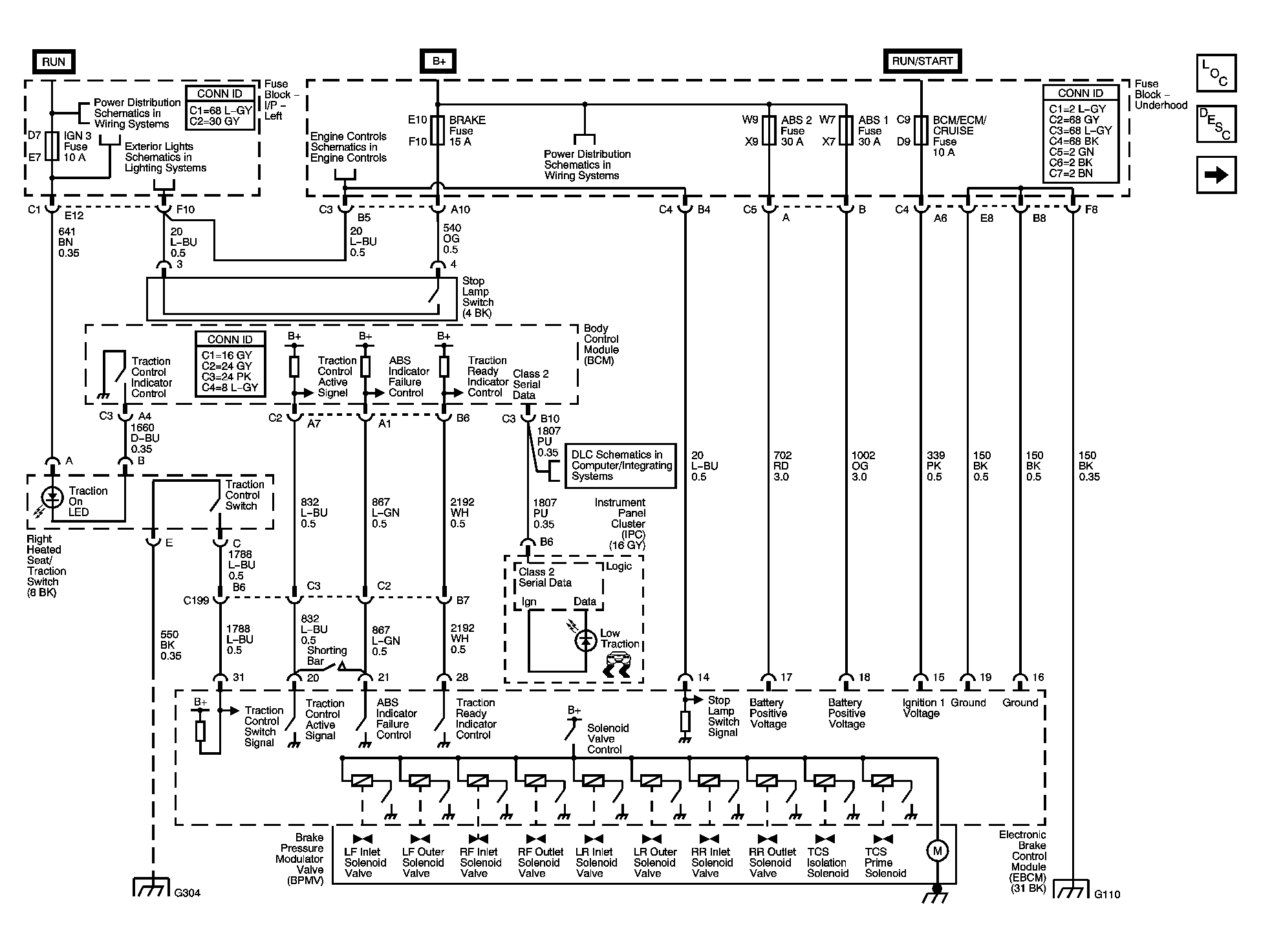

Fig 1: EBCM Power, Ground, Serial Data, and Switches

GM1467889

Courtesy of GENERAL MOTORS CORP.

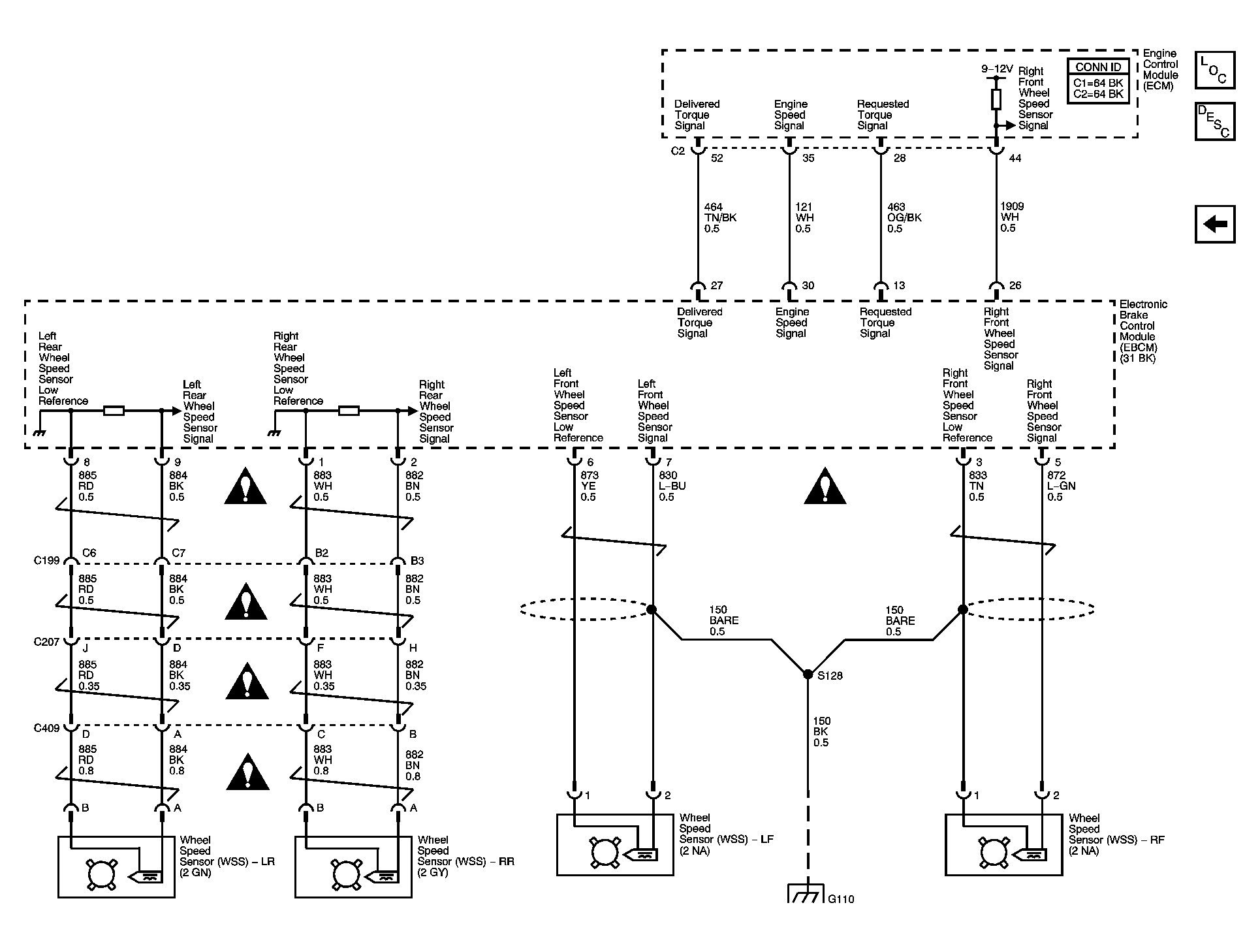

Fig 2: Wheel Speed Sensors

GM1485487

Courtesy of GENERAL MOTORS CORP.
