Outside Mirror Schematics

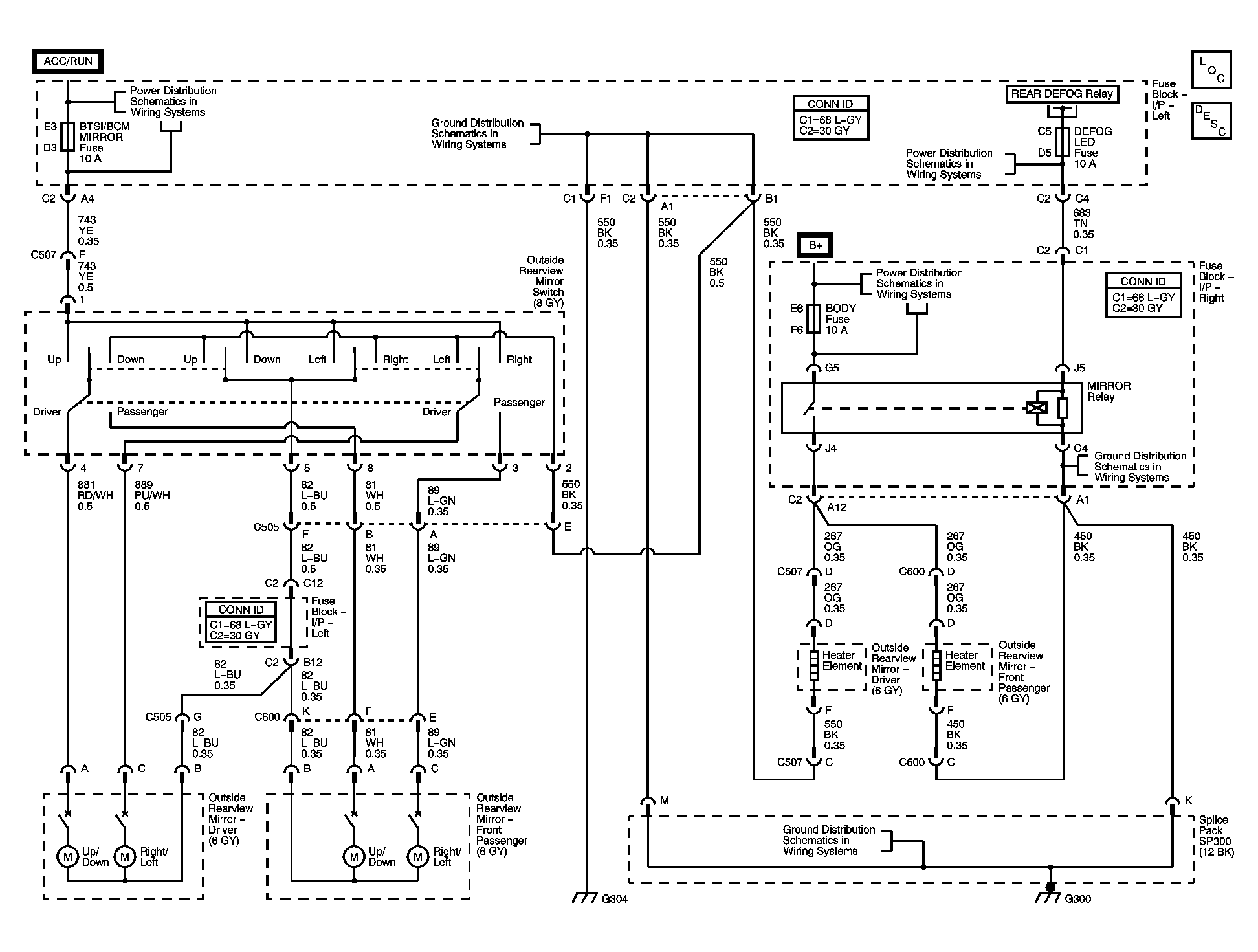

Fig 1: Outside Mirror Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
