Power Steering System Schematics

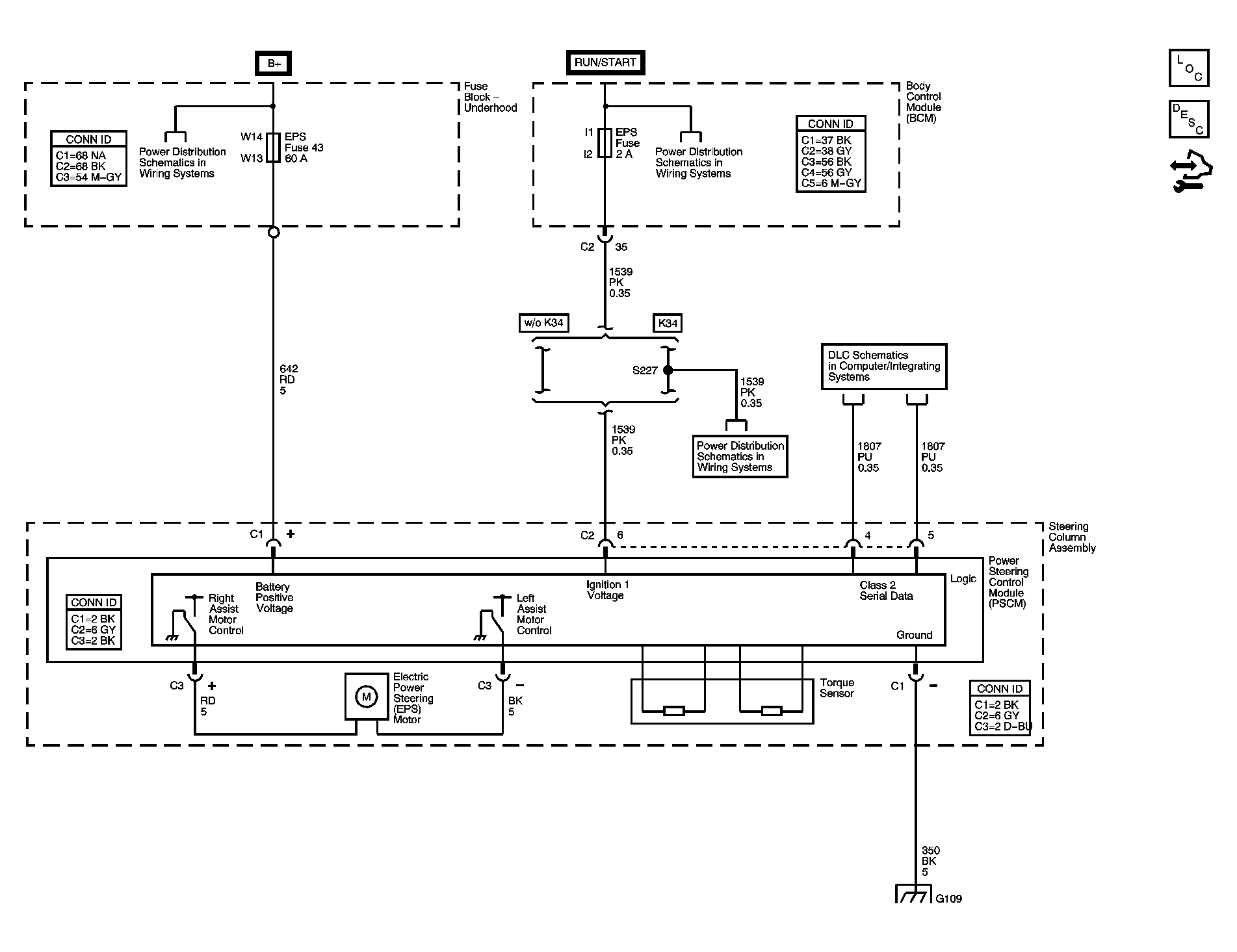

Fig 1: Power Steering System Schematics

GM1434341

Courtesy of GENERAL MOTORS CORP.
