Power Distribution Schematics

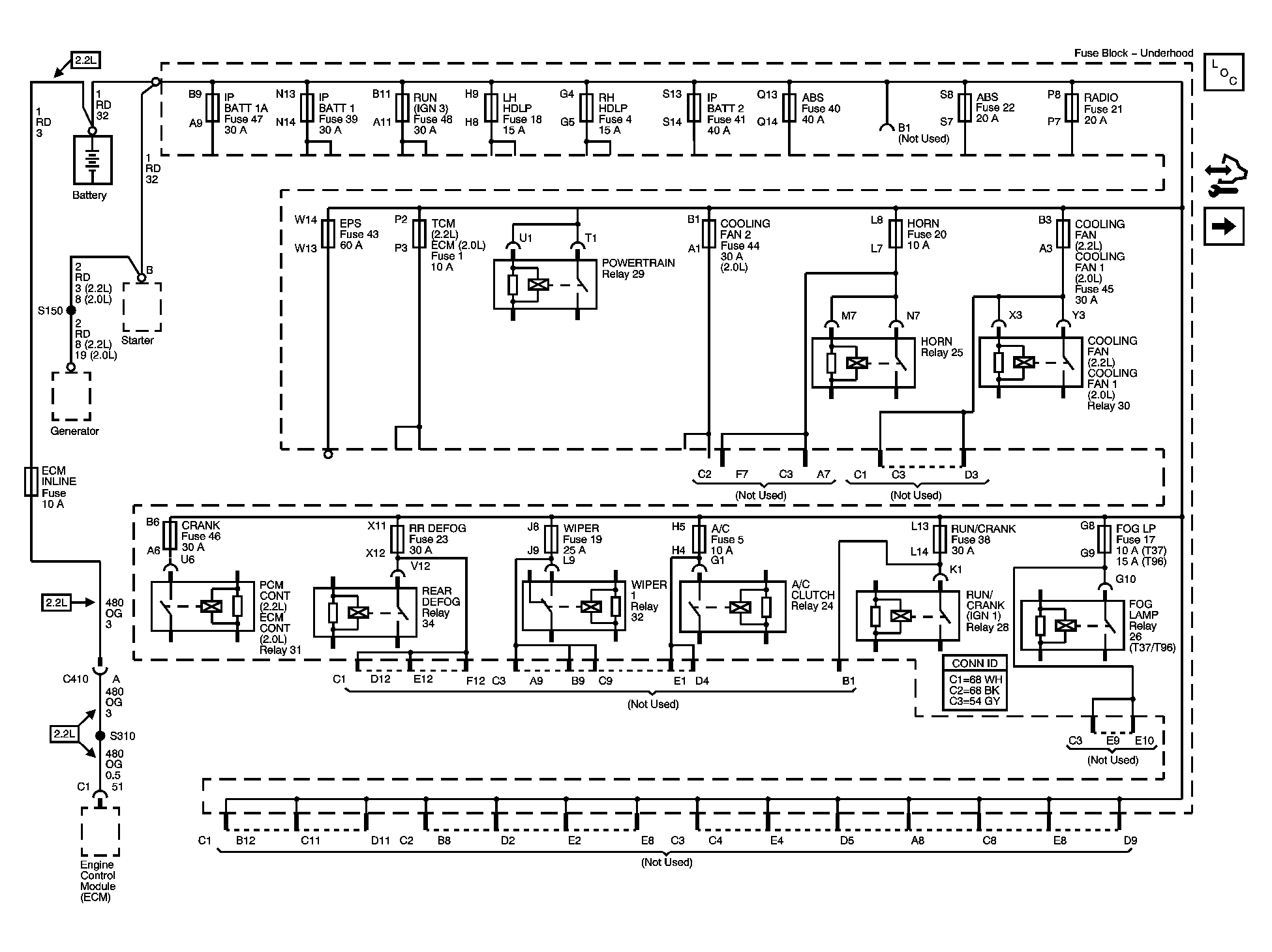

Fig 1: Fuse Block - Underhood Bus Schematics

Courtesy of GENERAL MOTORS CORP.

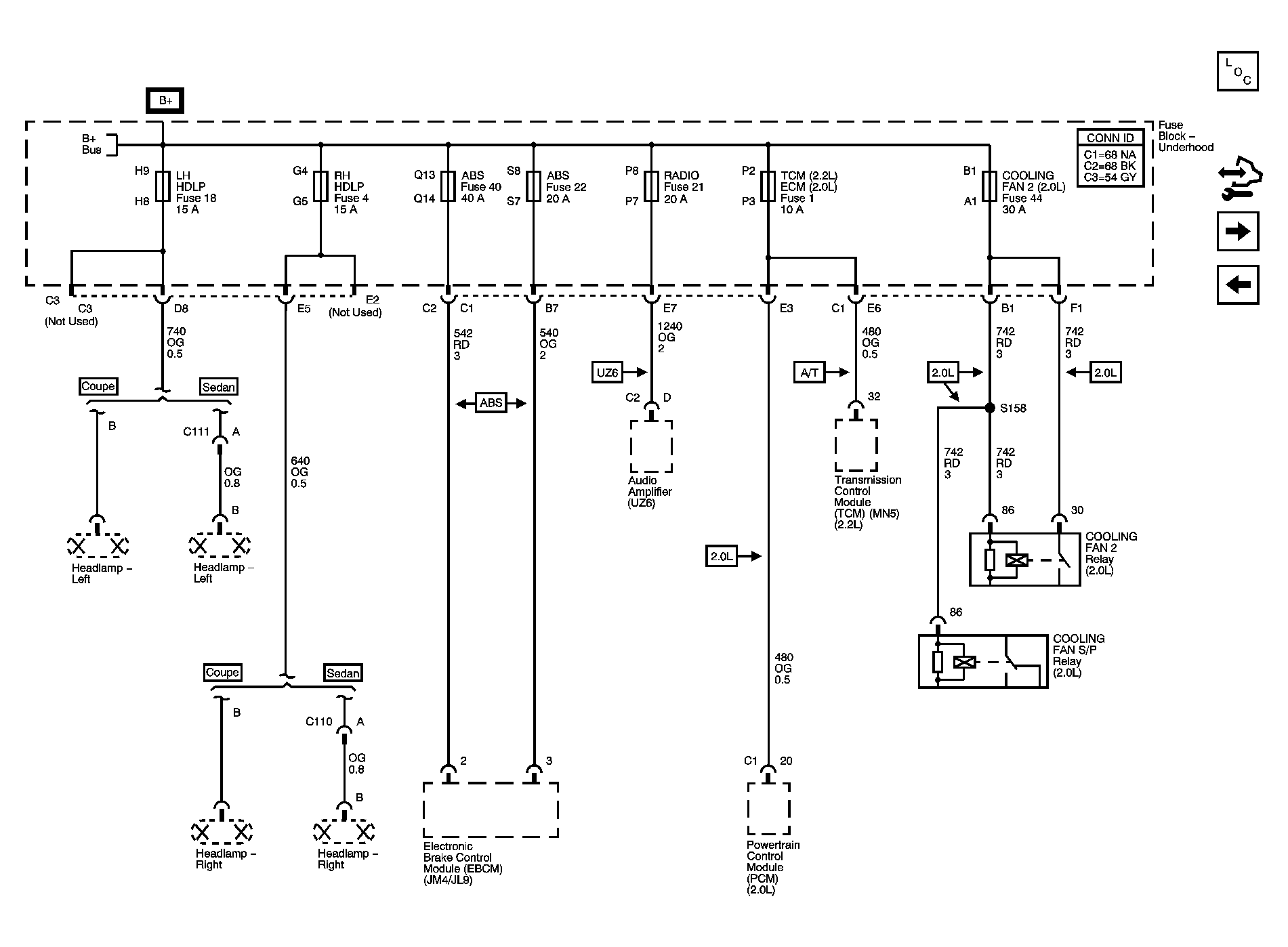

Fig 2: ABS (40A), ABS (20A), COOLING FAN 2, ECM, LH HDLP, RADIO, RH HDLP, and TCM Fuses Schematics

Courtesy of GENERAL MOTORS CORP.

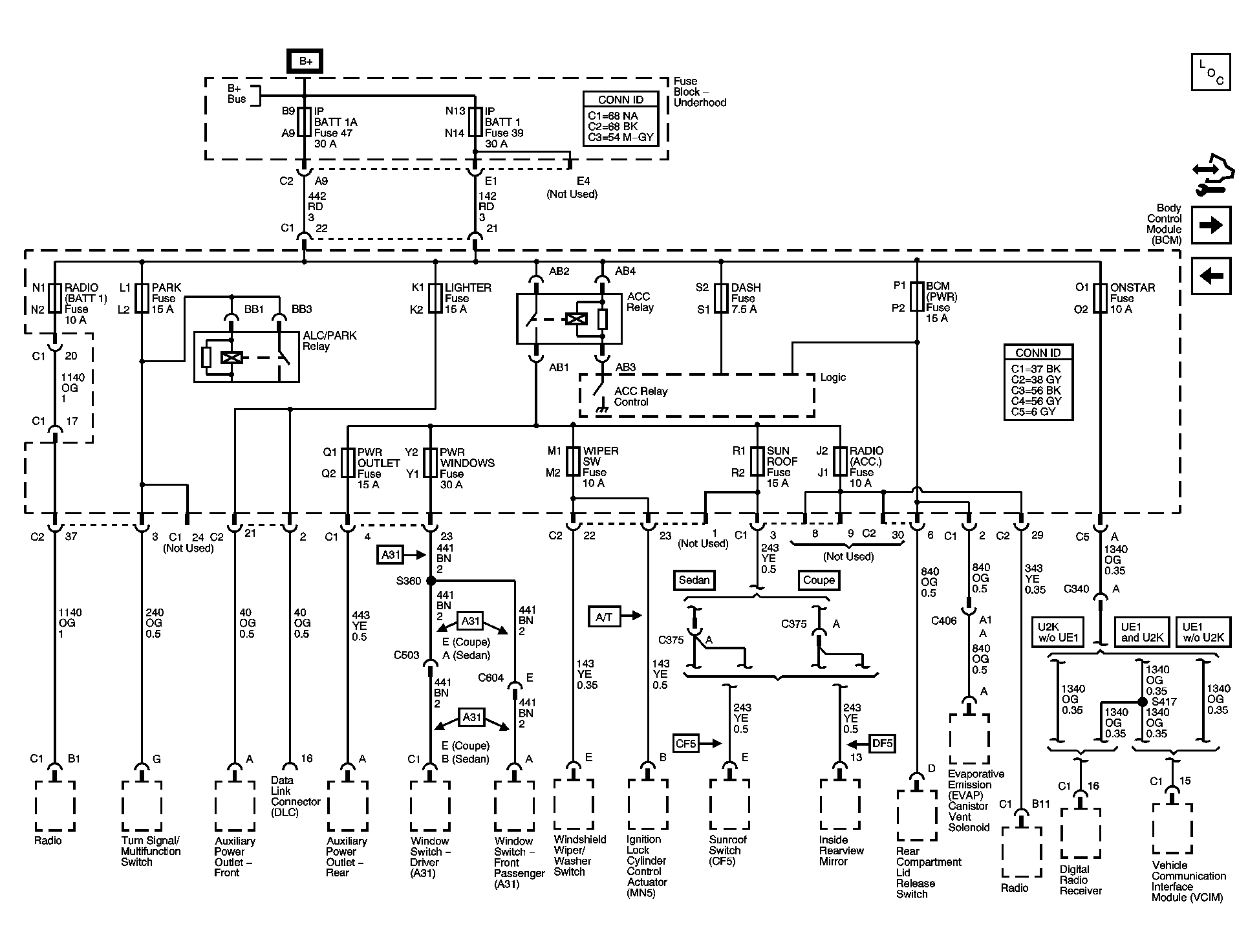

Fig 3: BCM (PWR), DASH, IP BATT 1, IP BATT 1A, LIGHTER, ONSTAR, PARK, PWR OUTLET, PWR WINDOWS, RADIO (ACC.), RADIO (BATT 1), SUN ROOF, and WIPER SW Fuses Schematics

Courtesy of GENERAL MOTORS CORP.

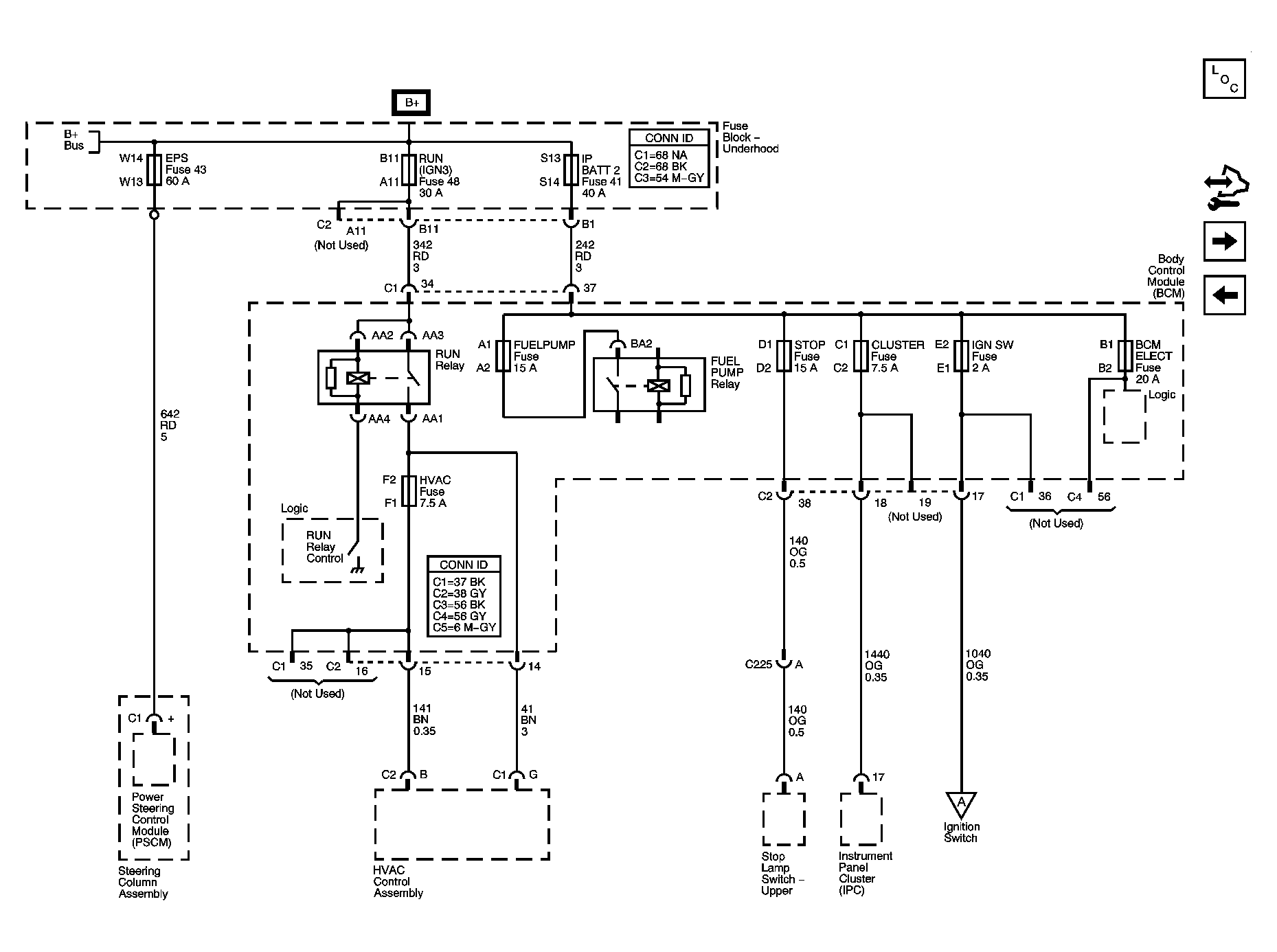

Fig 4: BCM ELECT, CLUSTER, EPS (60A), FUEL PUMP, HVAC, IGN SW, IP BATT 2, RUN (IGN 3), and STOP Fuses Schematics

Courtesy of GENERAL MOTORS CORP.

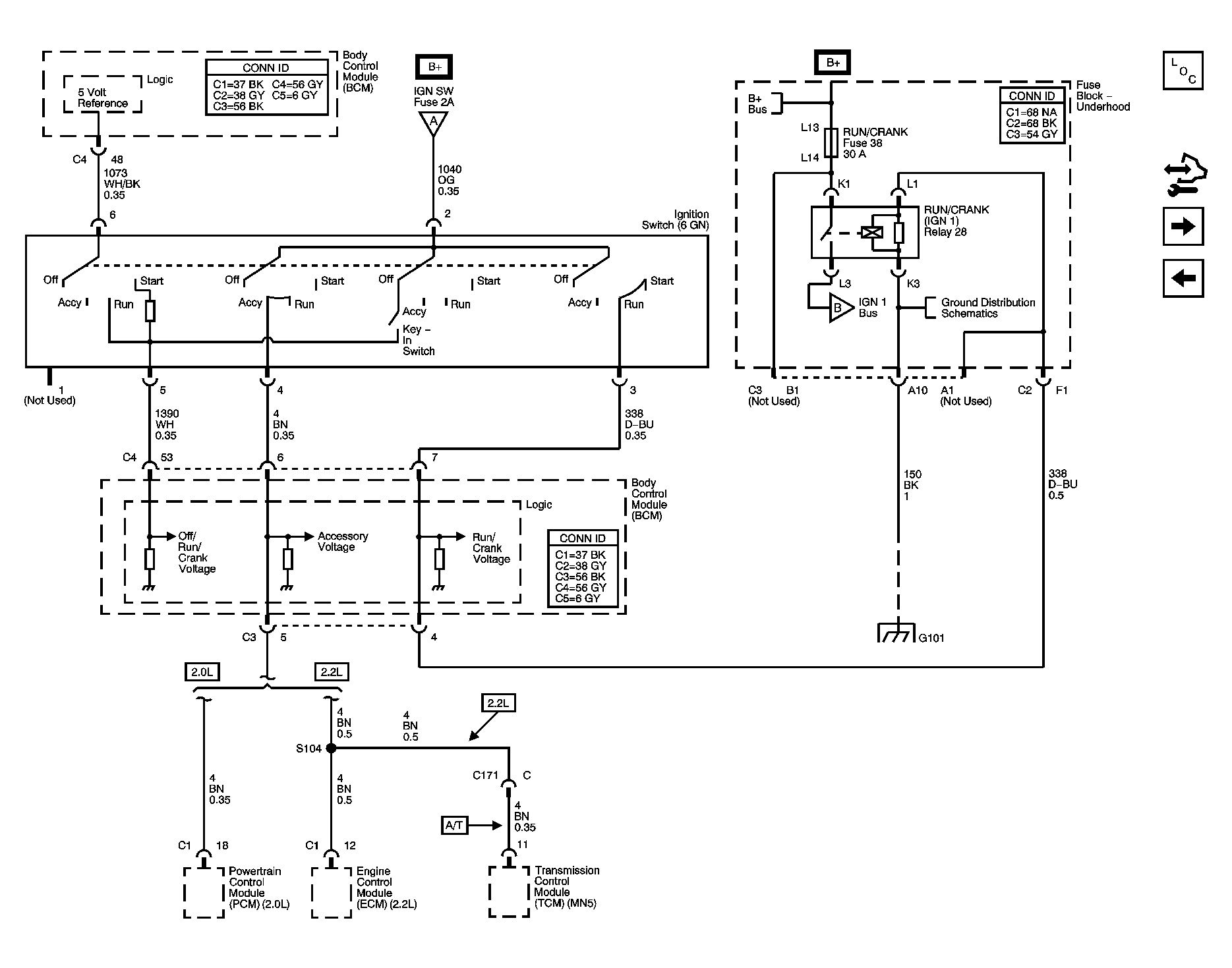

Fig 5: Ignition Switch and RUN/CRANK Fuse Schematics

Courtesy of GENERAL MOTORS CORP.

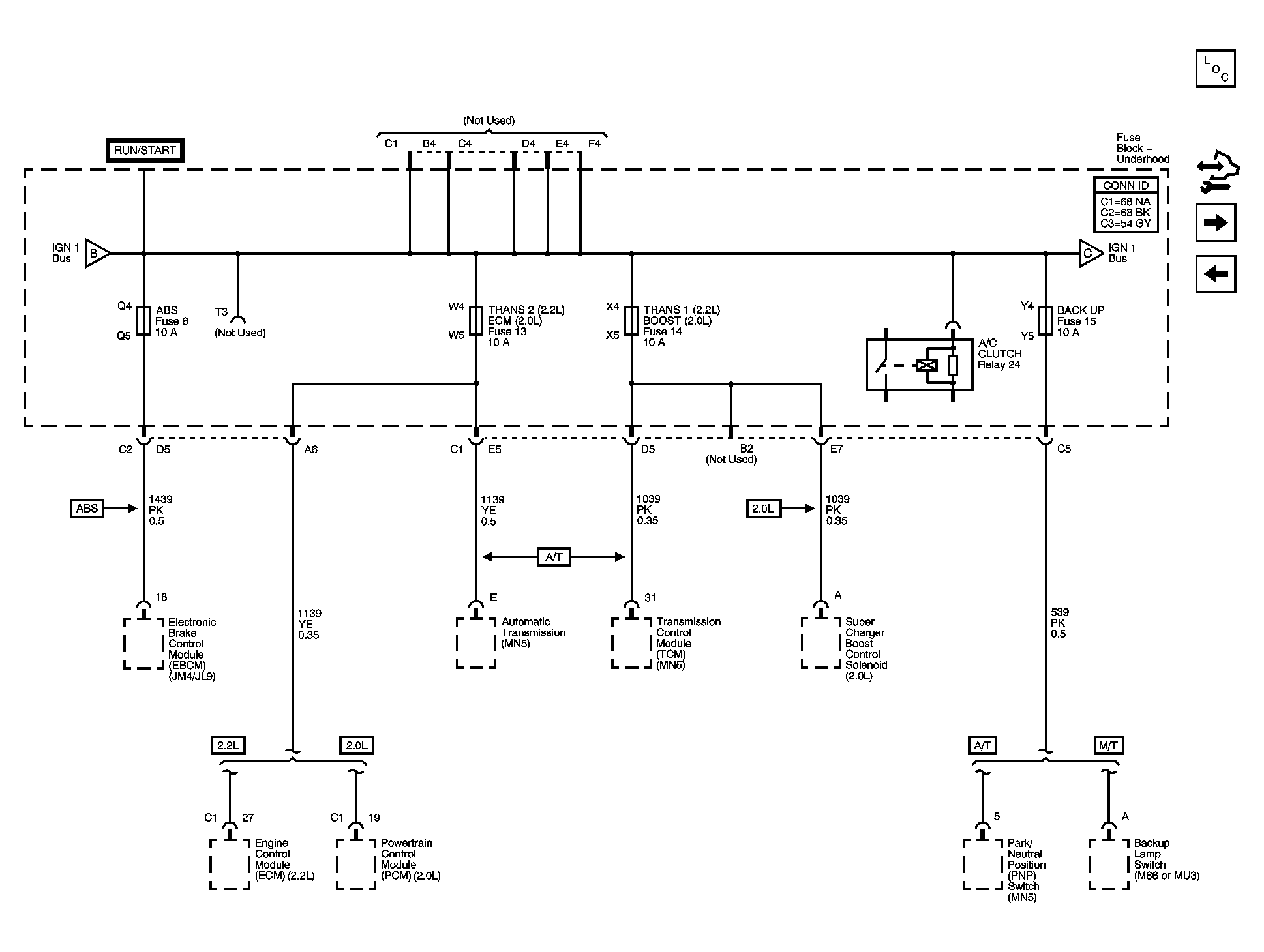

Fig 6: ABS (10A), BACK UP, BOOST, ECM, TRANS 1, and TRANS 2 Fuses Schematics

Courtesy of GENERAL MOTORS CORP.

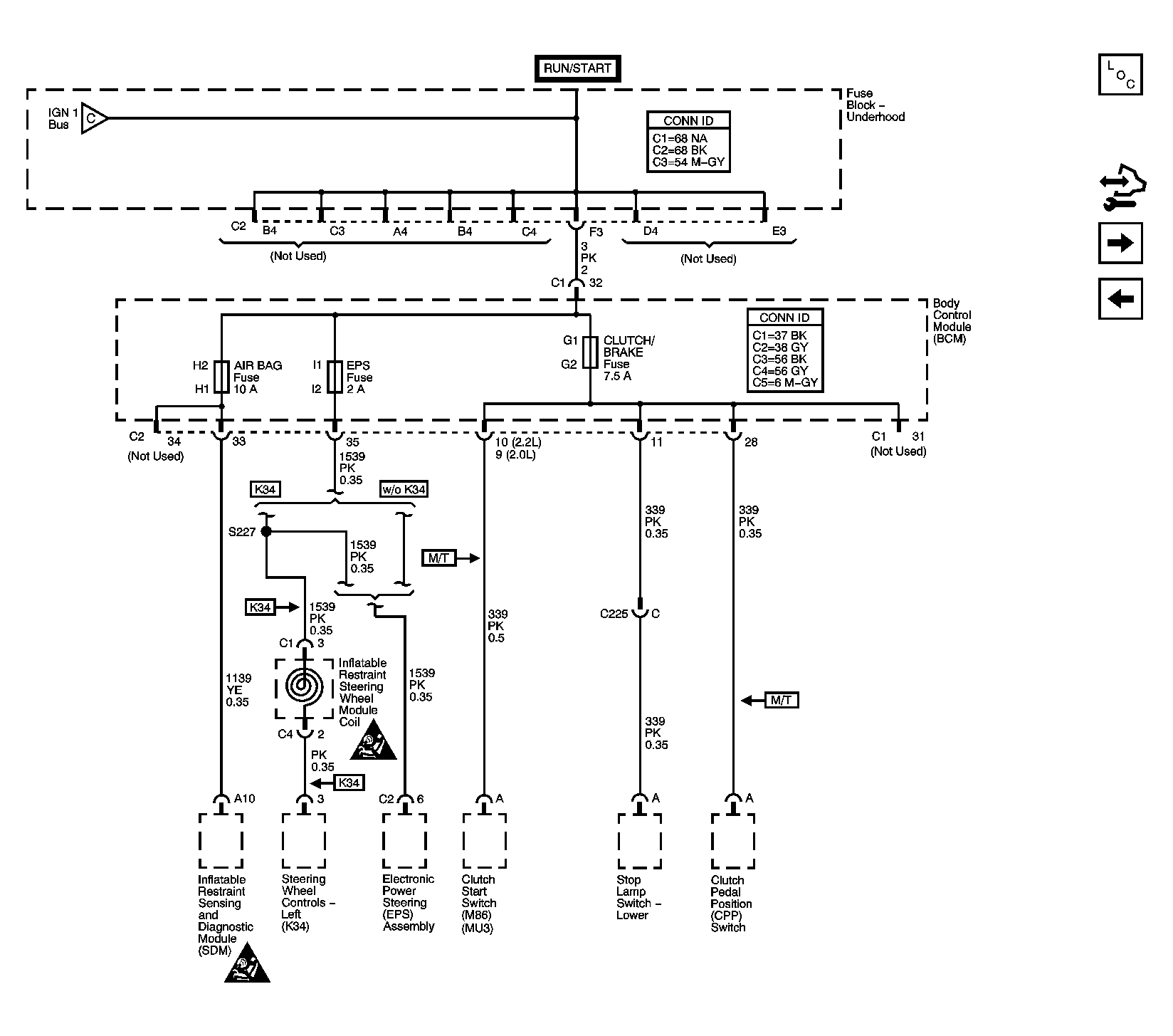

Fig 7: AIR BAG, CLUTCH/BRAKE, and EPS (2A) Fuses Schematics

Courtesy of GENERAL MOTORS CORP.

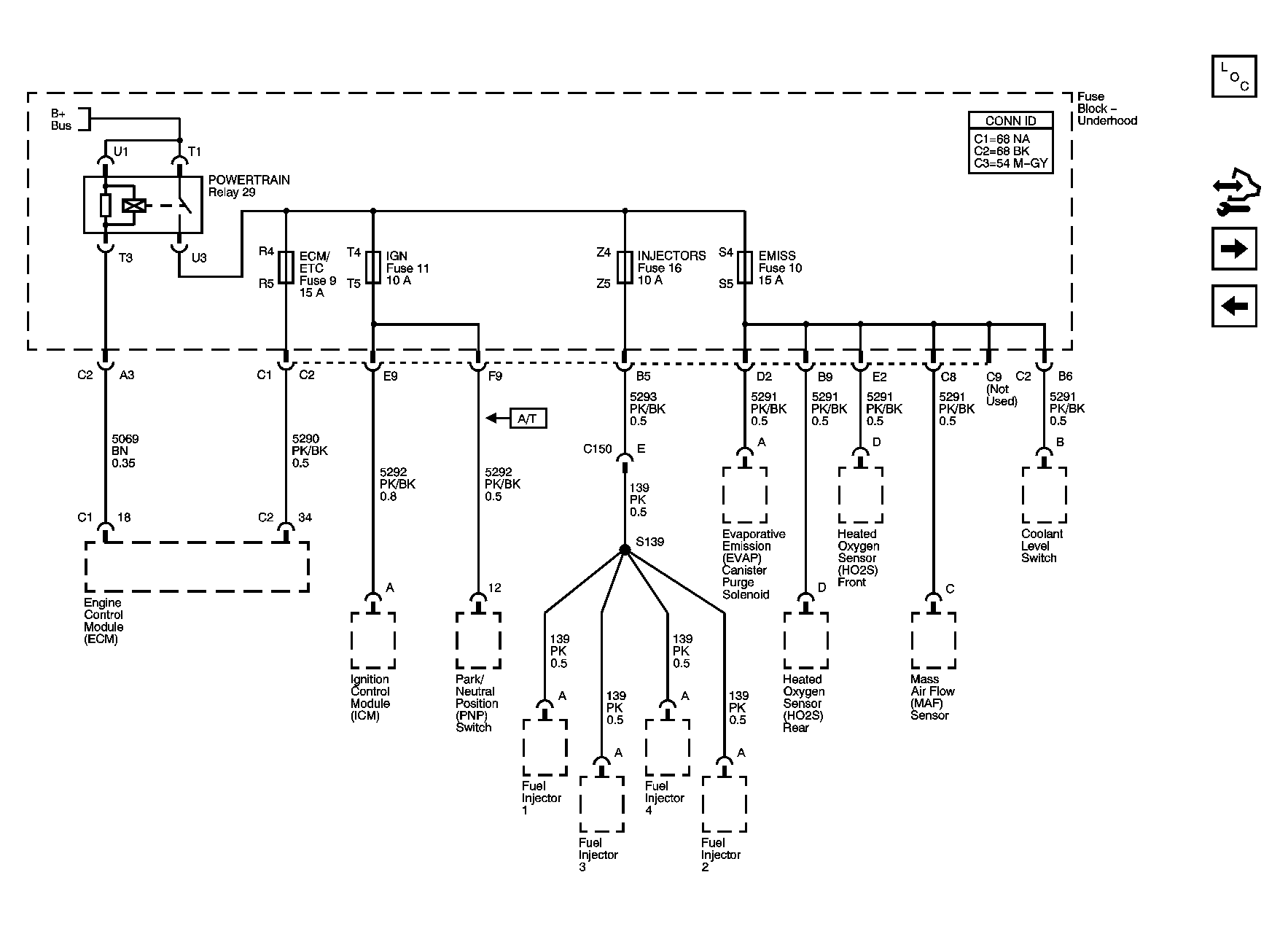

Fig 8: ECM/ETC, IGN, INJECTORS, and EMISS Fuses Schematics - 2.2L

Courtesy of GENERAL MOTORS CORP.

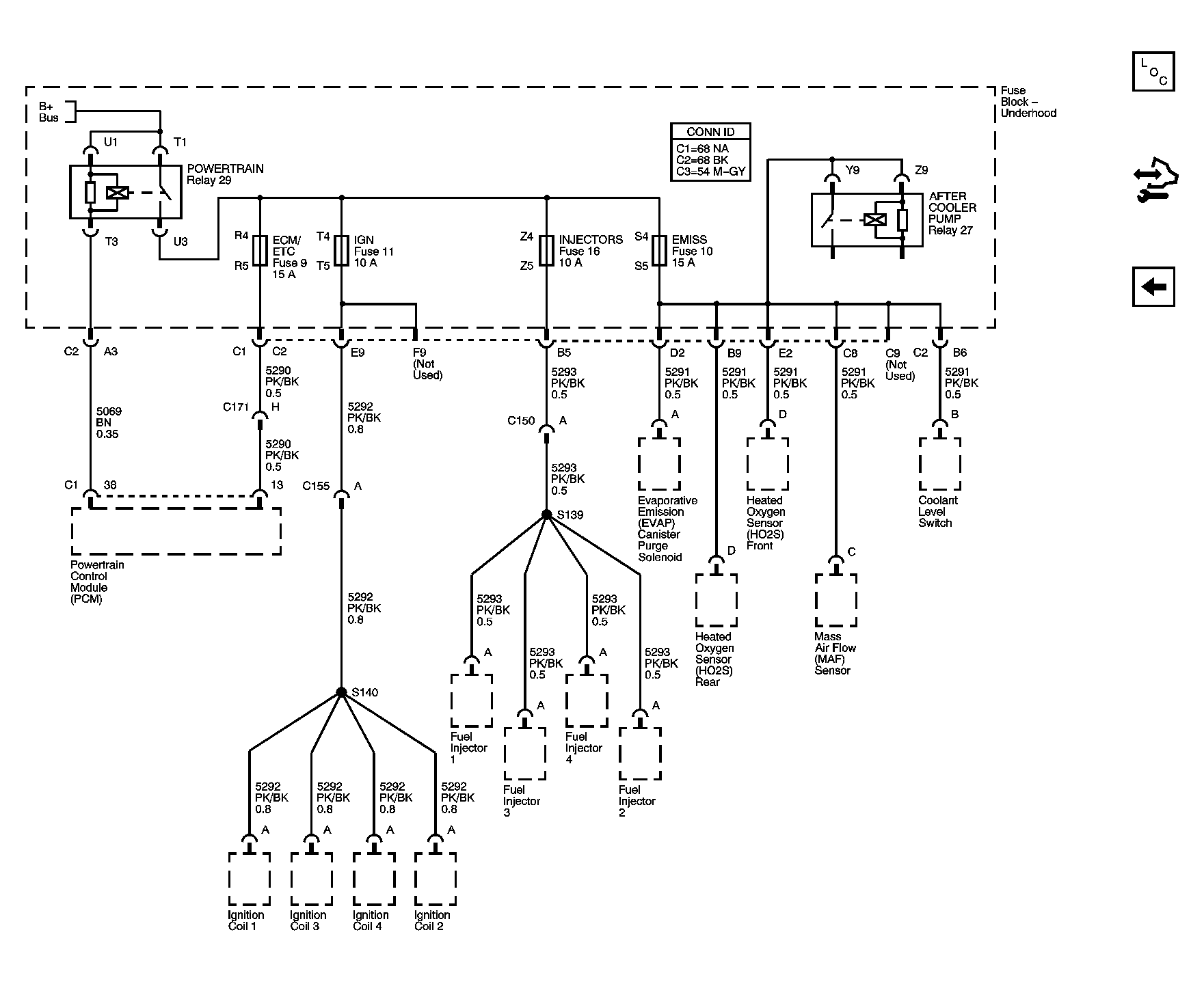

Fig 9: ECM/ETC, IGN, INJECTORS, and EMISS Fuses Schematics - 2.0L

Courtesy of GENERAL MOTORS CORP.
