Installation Procedure

WARNING: This page is about a different car, the 2004 Saturn Ion Red Line, 2004 Saturn Ion 3, 2004 Saturn Ion 2, and 2004 Saturn Ion 1. However, it is still accessible from the selected car via links, so may be relevant.
  1. Move the stabilizer bar into position from the right side of the vehicle.
  2. Install the stabilizer bushings on the stabilizer bar with the cut line facing rearward.

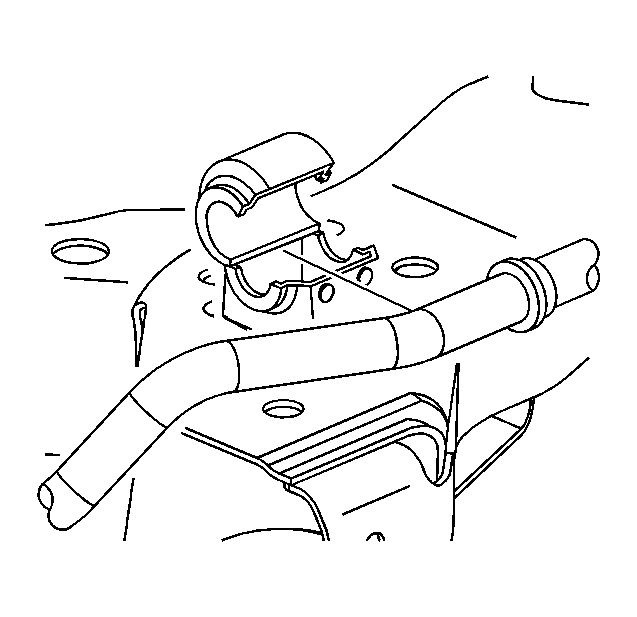

    3. Fig 1: View Of Stabilizer Bar
    GM851718Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the stabilizer bar clamps and bolts.

    Tighten:  Tighten the bolts to 50 N.m (37 lb ft).

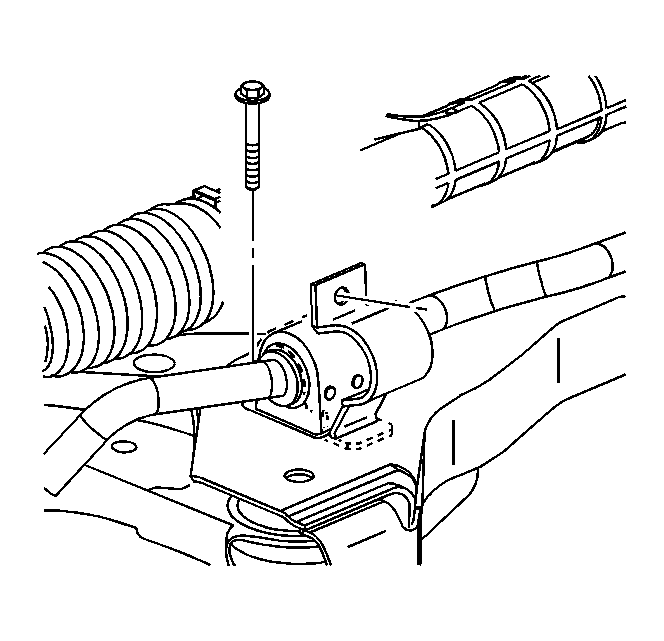

    4. Fig 2: View Of Stabilizer Bar Mounting Clamp
    GM851715Courtesy of GENERAL MOTORS CORP.
  4. Connect the stabilizer links to the stabilizer shaft. Refer to Stabilizer Shaft Link Replacement .
  5. Install the steering gear. Refer to Power Steering Gear Replacement in Power Steering.
  6. Install the rear transaxle mount. Refer to Transmission Mount Replacement - Rear in Manual Transmission/M86 Getrag, or Transmission Mount Replacement - Rear in Automatic Transaxle/AF23-5, or Transmission Mount Replacement - Rear in Automatic Transmission/VT25-E.
  7. Install the front wheels. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
  8. Lower the vehicle.
