Installation Procedure

  1. Insert the cable through the driver's floor opening.
  2. Install the grommet flush with the floor opening.
    3. Fig 1: View Of Floor Pan Grommet
    GM851242Courtesy of GENERAL MOTORS CORP.
  3. Install the driver's side front carpet.
  4. Connect the shift cable to the shift control assembly.
    5. Fig 2: View Of Shift Control
    GM851244Courtesy of GENERAL MOTORS CORP.
  5. Install the console. Refer to Console Replacement - Front Floor in Instrument Panel, Gages, and Console.
  6. Raise the vehicle.
  7. Connect the shift cable to the park/neutral position switch.

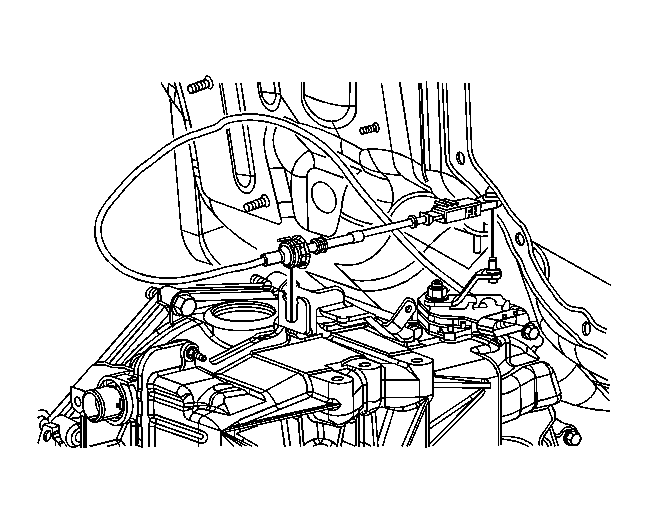

    8. Fig 3: Identifying Shift Cable
    GM1521639Courtesy of GENERAL MOTORS CORP.
  8. Connect the shift cable to the transmission cable bracket.
    9. NOTE: Refer to Fastener Notice in Cautions and Notices.
  9. Install the shift cable retaining nut near the exhaust heat shield.

    Tighten:  Tighten the nut to 10 N.m (89 lb in).

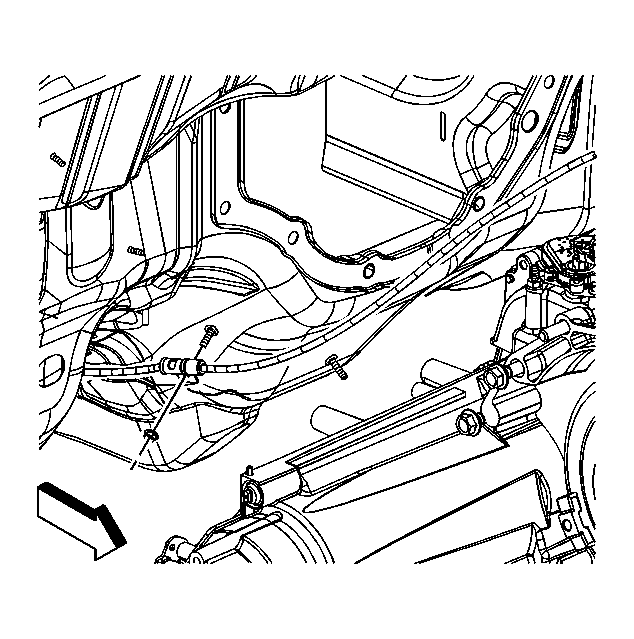

    10. Fig 4: Identifying Shift Cable Retaining Nut
    GM1521636Courtesy of GENERAL MOTORS CORP.
  10. Lower the vehicle.
