Installation Procedure

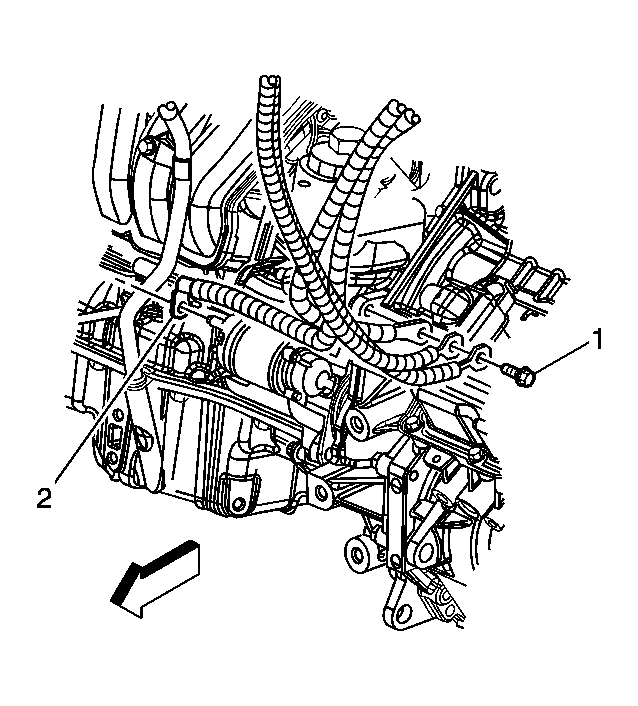

    Fig 1: View Of Negative Battery Cable To The Transmission Bracket
    GM1336944Courtesy of GENERAL MOTORS CORP.
  1. Install the negative battery cable into the retainers.
  2. Connect the negative battery cable to the transmission bracket (1).
    3. Fig 2: View Of Battery Ground (Negative) Cable & Bolt
    GM368800Courtesy of GENERAL MOTORS CORP.
  3. Install the negative battery cable to the right frame rail.
  4. Install the battery tray. Refer to Battery Tray Replacement (L61)  or Battery Tray Replacement (L66) .
  5. Connect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .
