Door Lock/Indicator Schematics

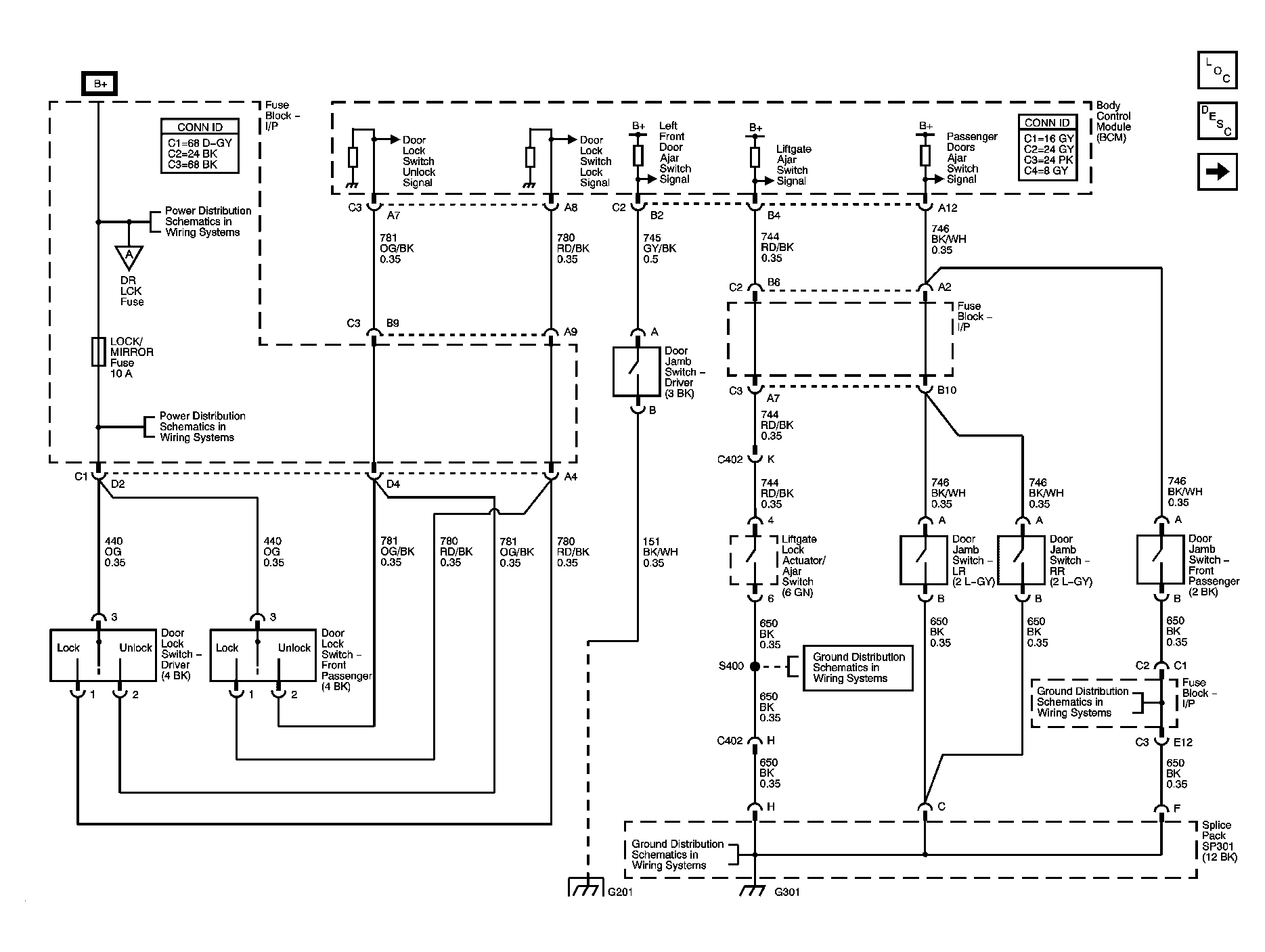

Fig 1: View Of Door Lock/Indicator Schematic

GM1218087

Courtesy of GENERAL MOTORS CORP.

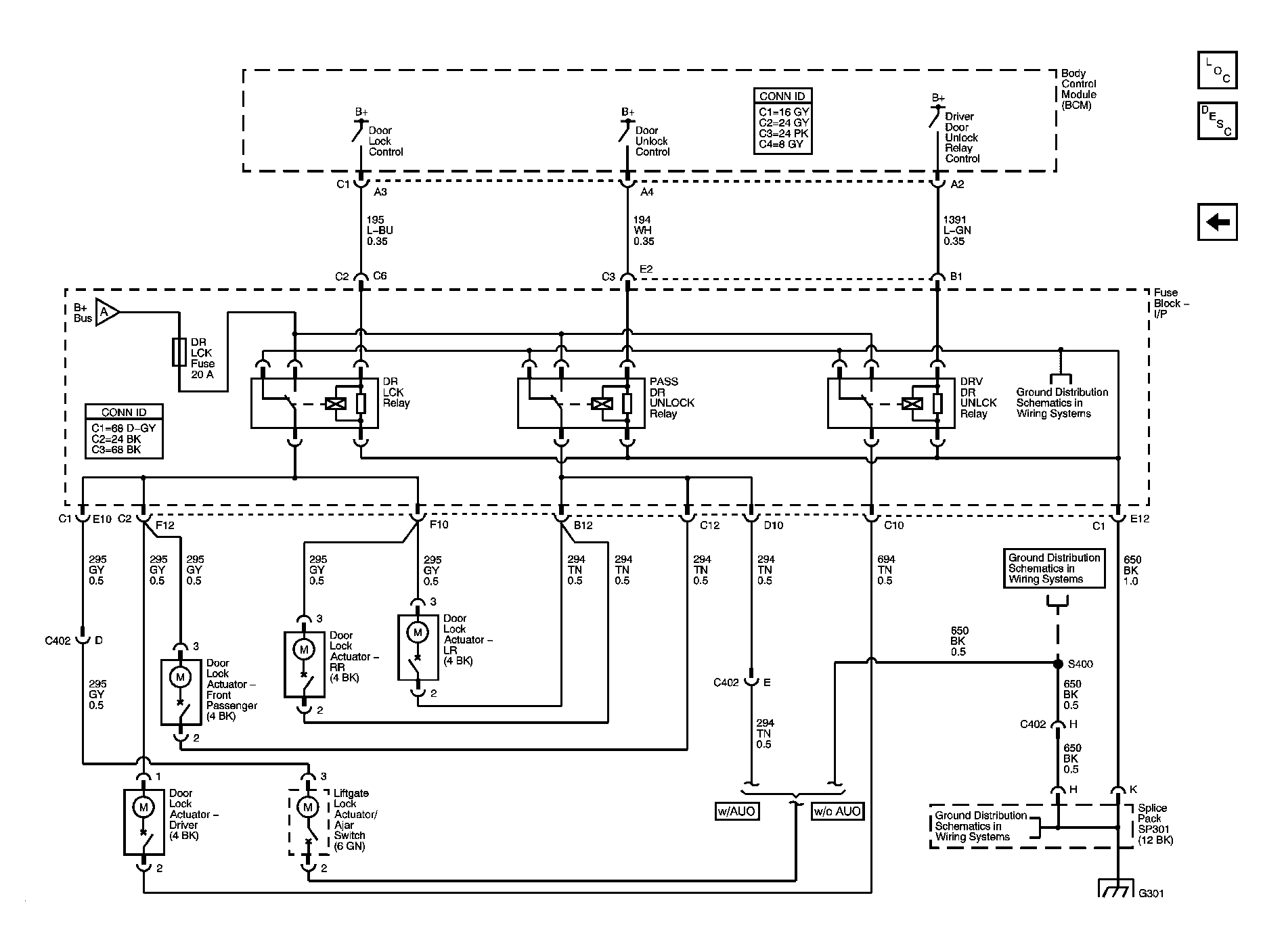

Fig 2: Door Lock Actuators Schematic

GM1218084

Courtesy of GENERAL MOTORS CORP.
