Wiper/Washer System Schematics

WARNING: This page is about a different car, the 2005 Saturn L300. However, it is still accessible from the selected car via links, so may be relevant.

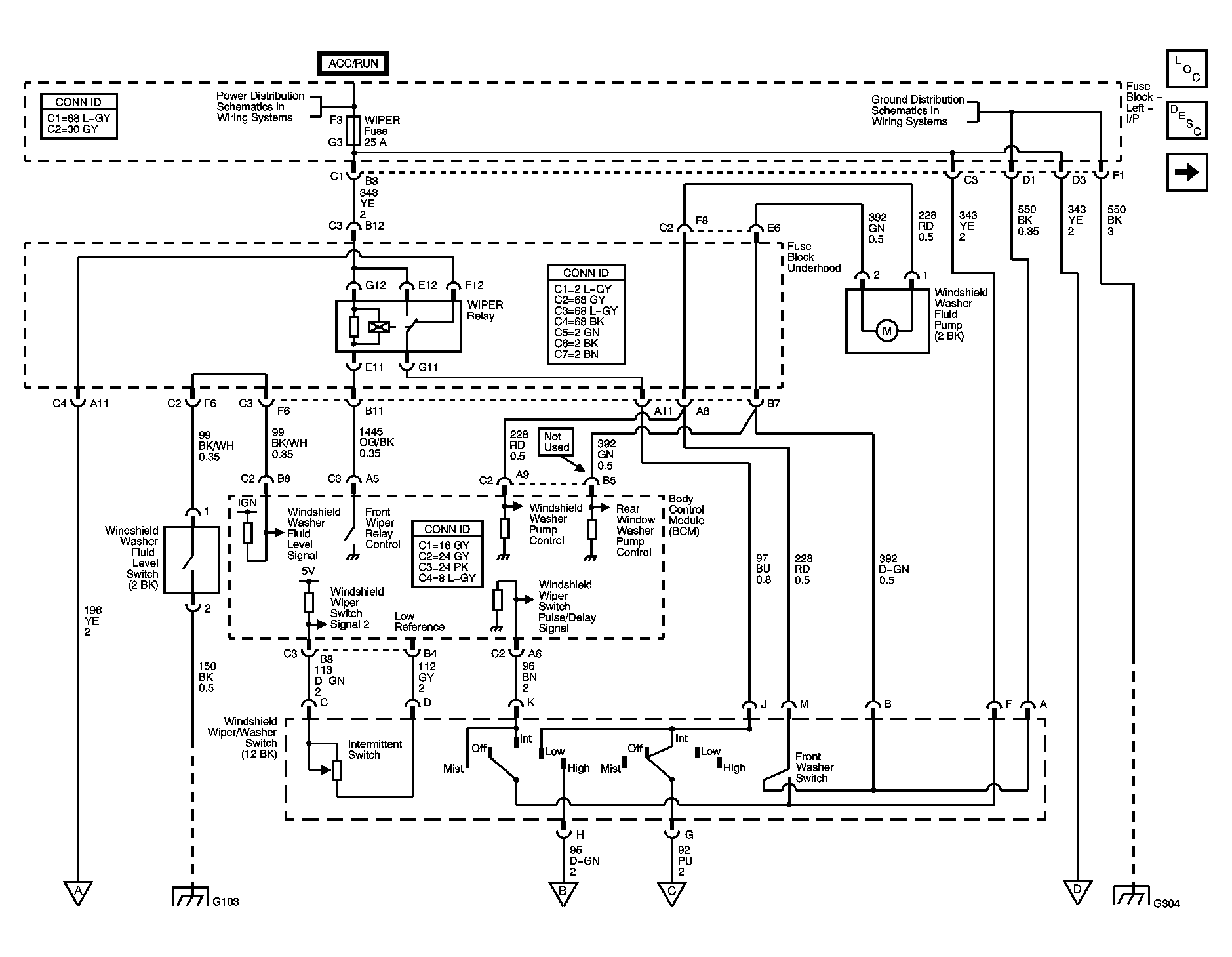

Fig 1: Washer & Wiper Controls Schematic
GM1485518Courtesy of GENERAL MOTORS CORP.
Fig 2: Wiper Motor Schematic
GM1485523Courtesy of GENERAL MOTORS CORP.
