Cruise Control Schematics

WARNING: This page is about a different car, the 2007 Saturn Ion Red Line, 2007 Saturn Ion 3, and 2007 Saturn Ion 2. However, it is still accessible from the selected car via links, so may be relevant.

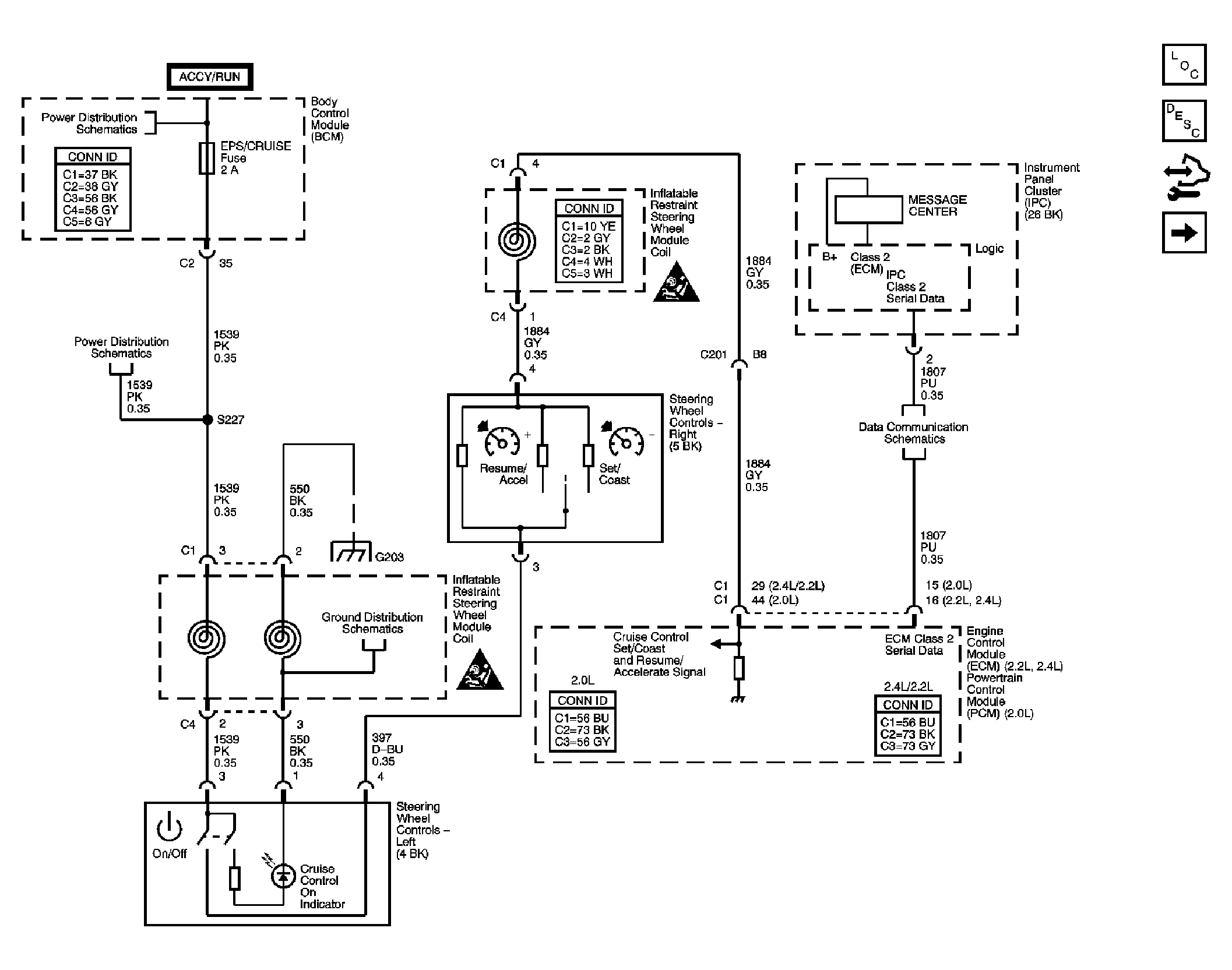

Fig 1: Driver Controls
GM1768399Courtesy of GENERAL MOTORS CORP.

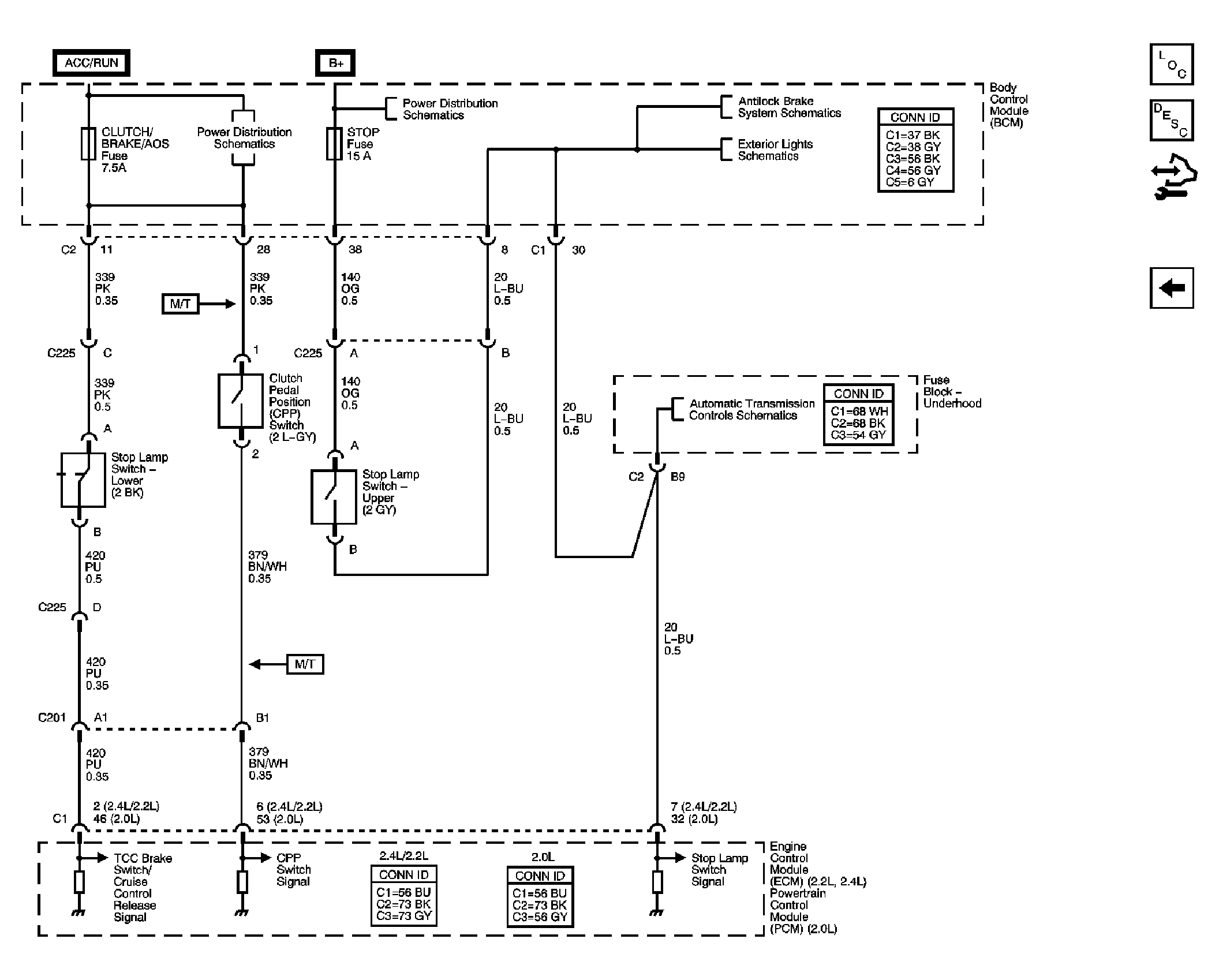

Fig 2: Stop Lamp and Clutch Switches
GM1768405Courtesy of GENERAL MOTORS CORP.
