Removal Procedure

  1. Remove the screws from the door applique.
  2. Slide the applique forward to disengage the applique from the door.
  3. Remove the applique from the door.

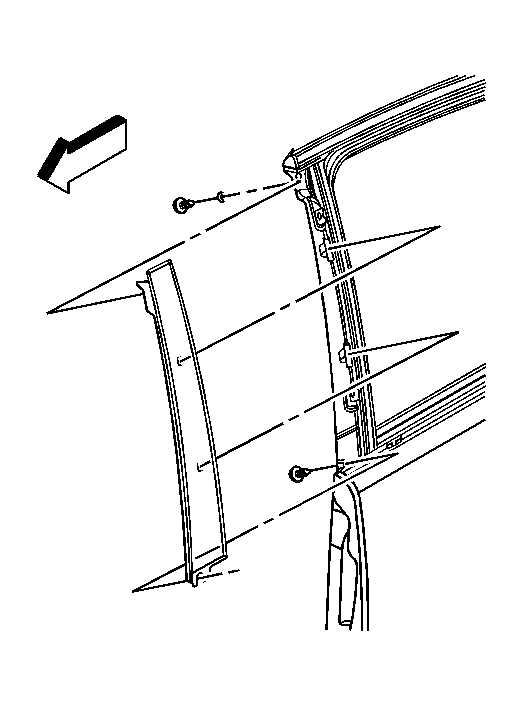

    4. Fig 1: View Of Rear Door Frame Applique
    GM863956Courtesy of GENERAL MOTORS CORP.
