DTC P0200: Injector Control Circuit: Notes

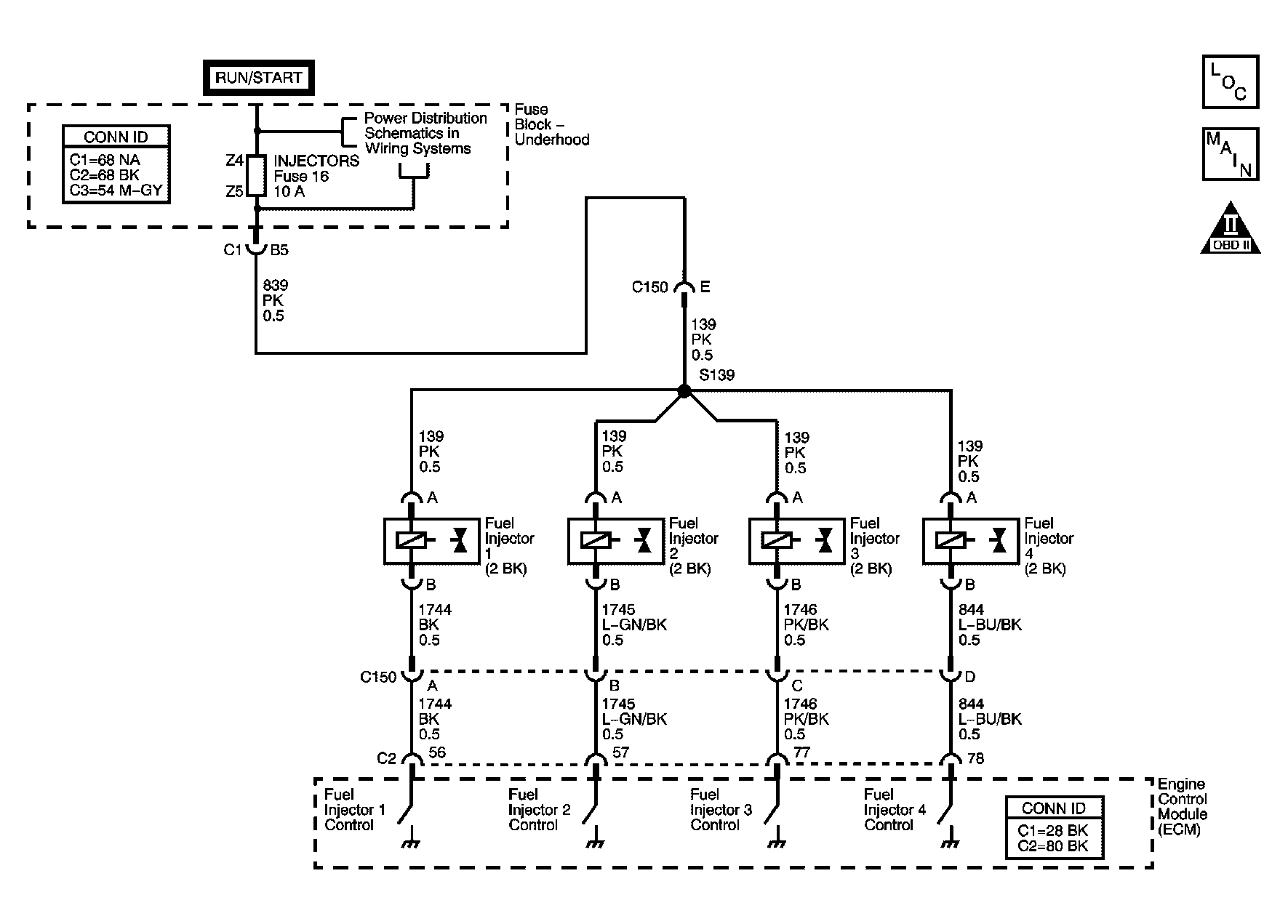

Fig 1: Fuel Injector Circuit

GM891203

Courtesy of GENERAL MOTORS CORP.
