Diagnostic Procedure

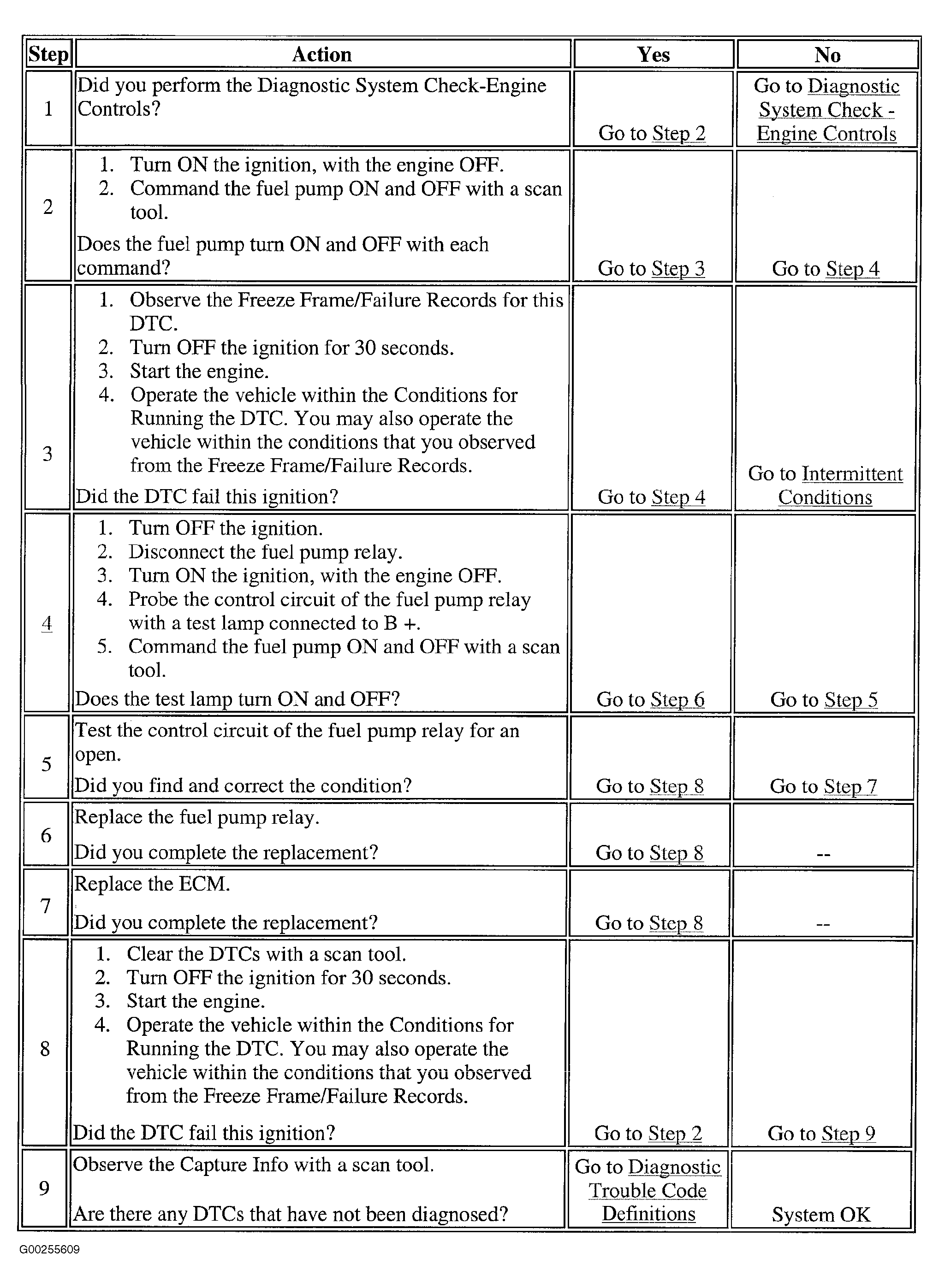

Fig 1: DTC P0627: Fuel Pump Relay Control Circuit

G00255609

Courtesy of GENERAL MOTORS CORP.
