Diagnostic Procedure

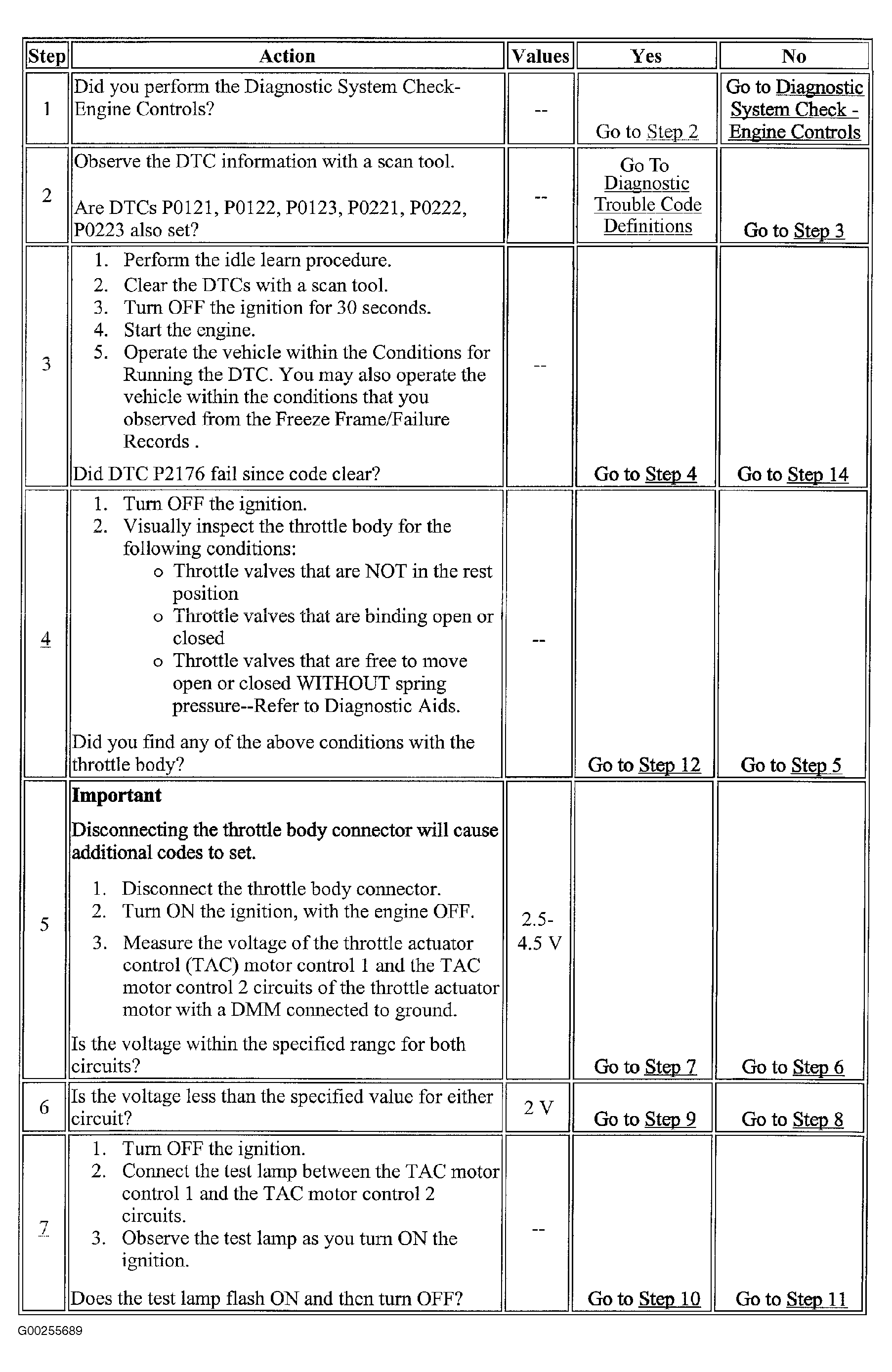

Fig 1: DTC P2176: Minimum Throttle Position Not Learned (Steps 1-7)
G00255689Courtesy of GENERAL MOTORS CORP.

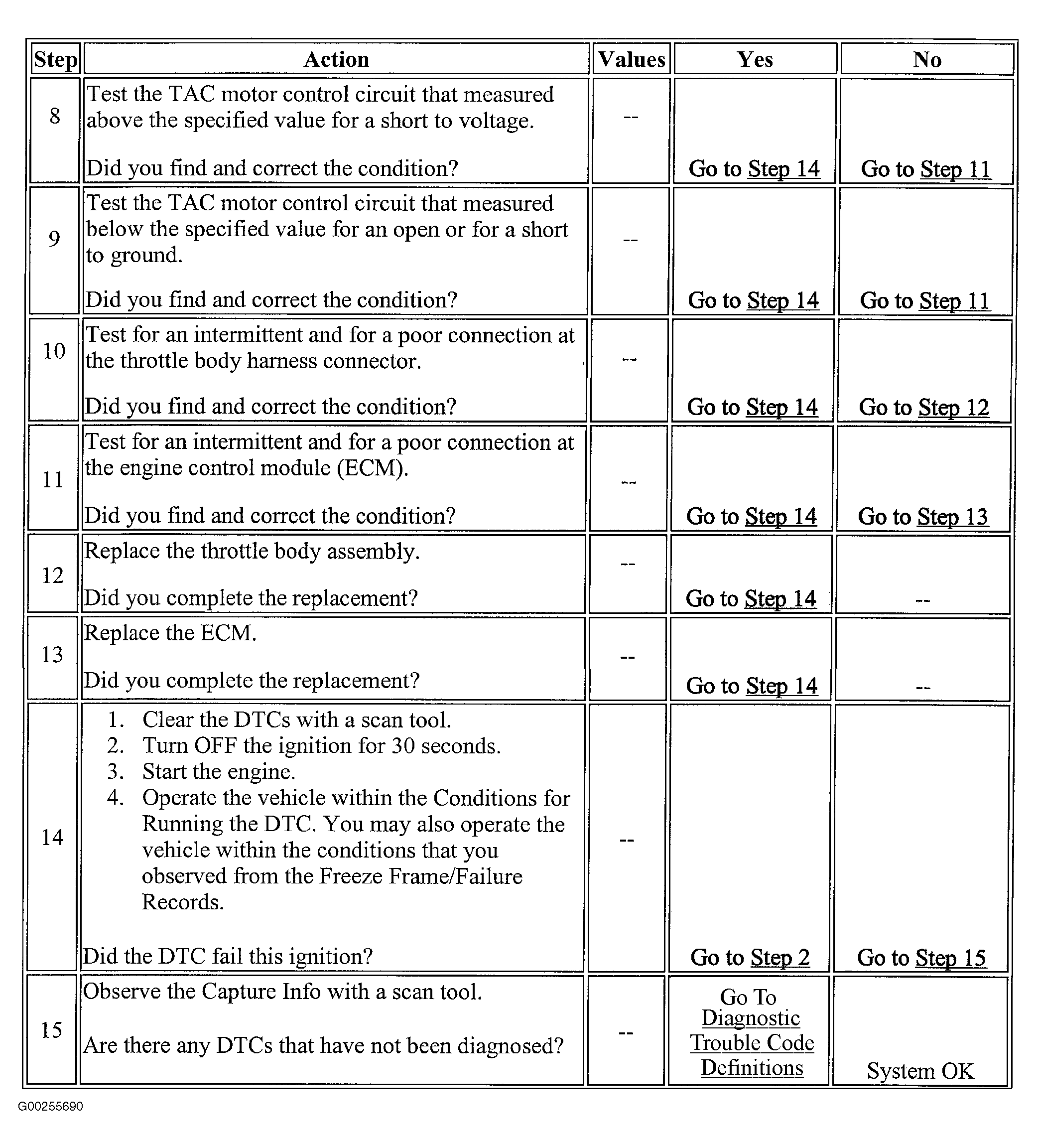

Fig 2: DTC P2176: Minimum Throttle Position Not Learned (Steps 8-15)
G00255690Courtesy of GENERAL MOTORS CORP.
