Diagnostic Procedure

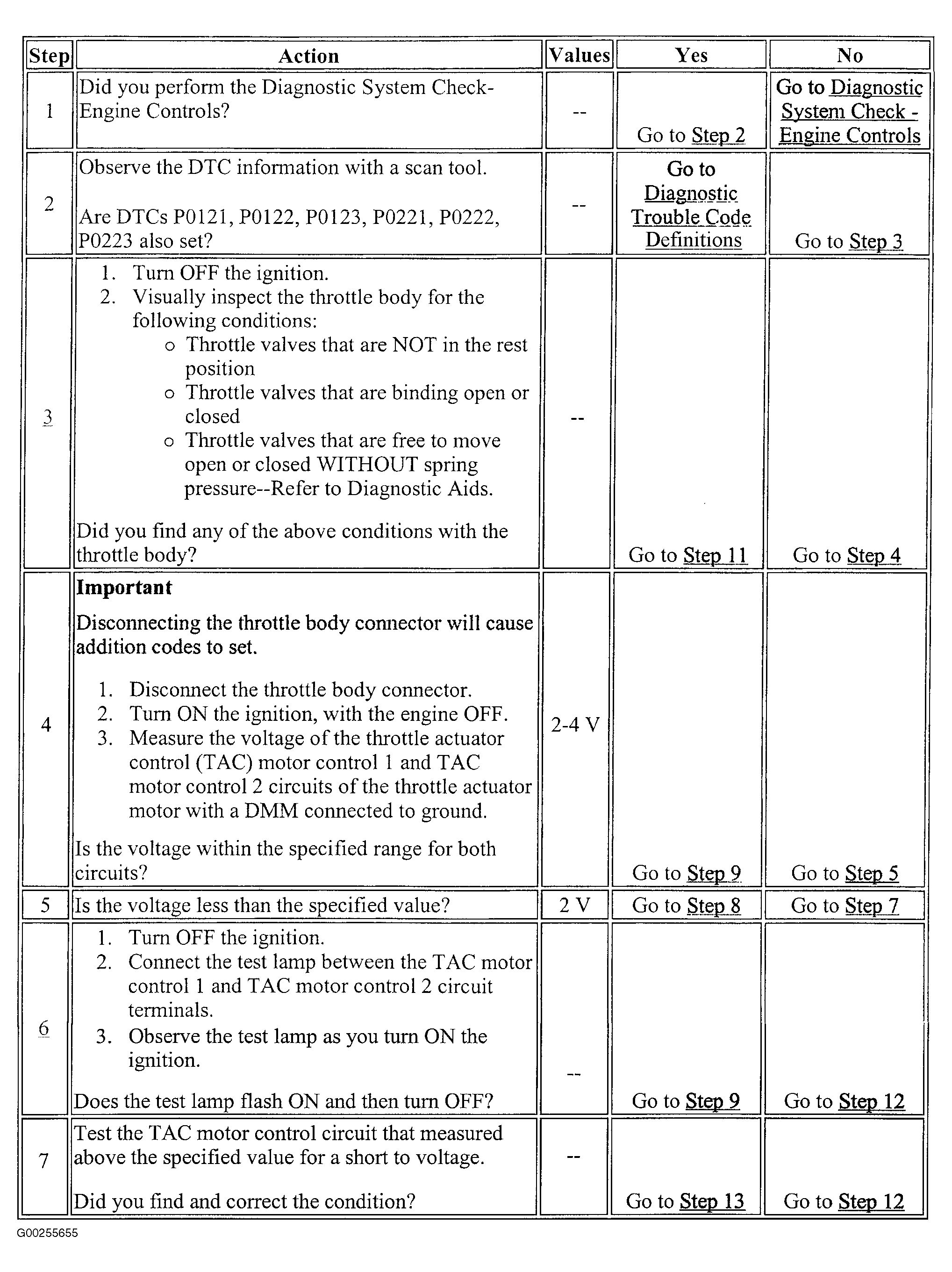

Fig 1: DTC P1551: Throttle Rest Position Not Reached During Learn (Steps 1-7)
G00255655Courtesy of GENERAL MOTORS CORP.

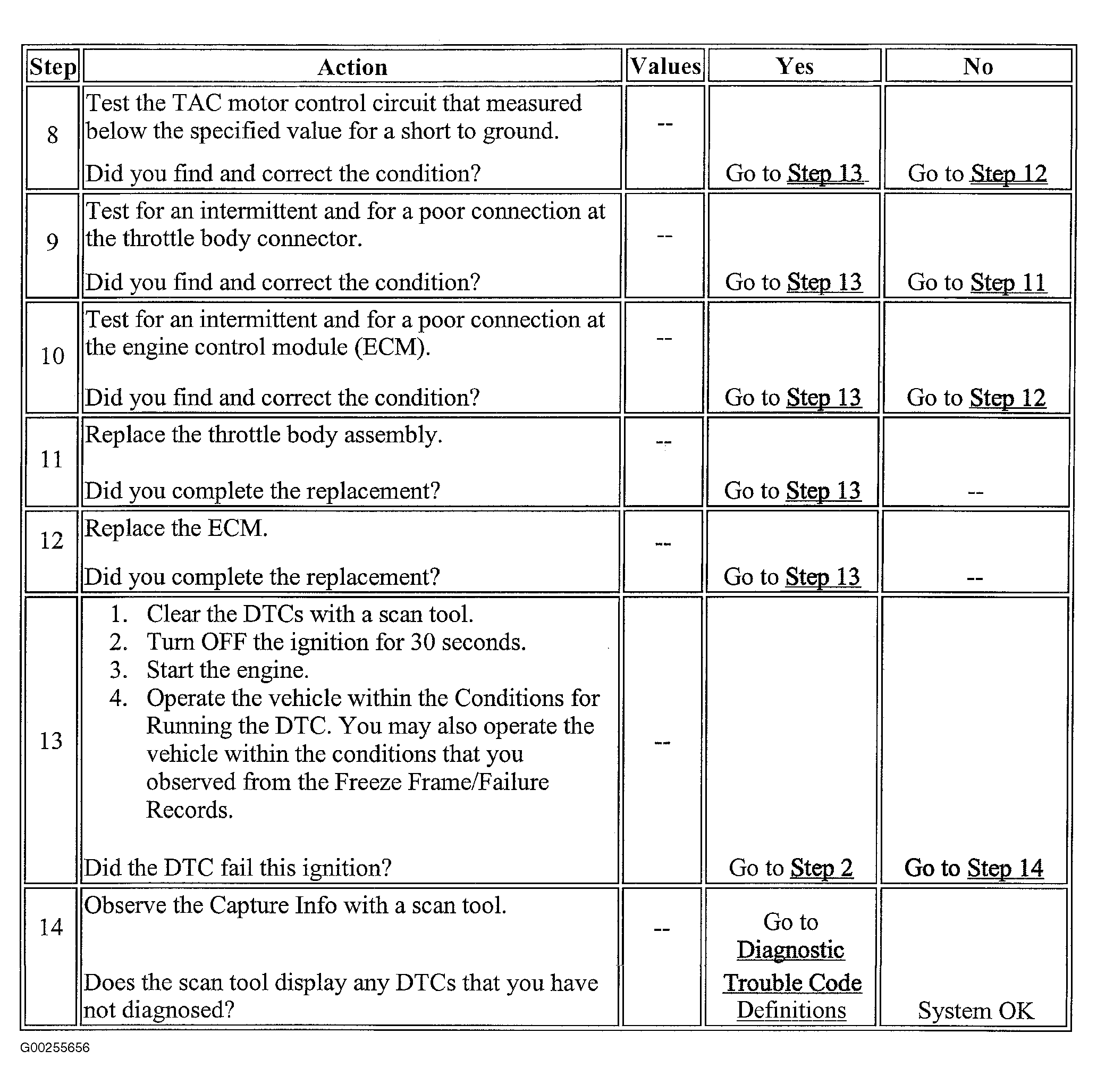

Fig 2: DTC P1551: Throttle Rest Position Not Reached During Learn (Steps 8-14)
G00255656Courtesy of GENERAL MOTORS CORP.
