Diagnostic Procedure

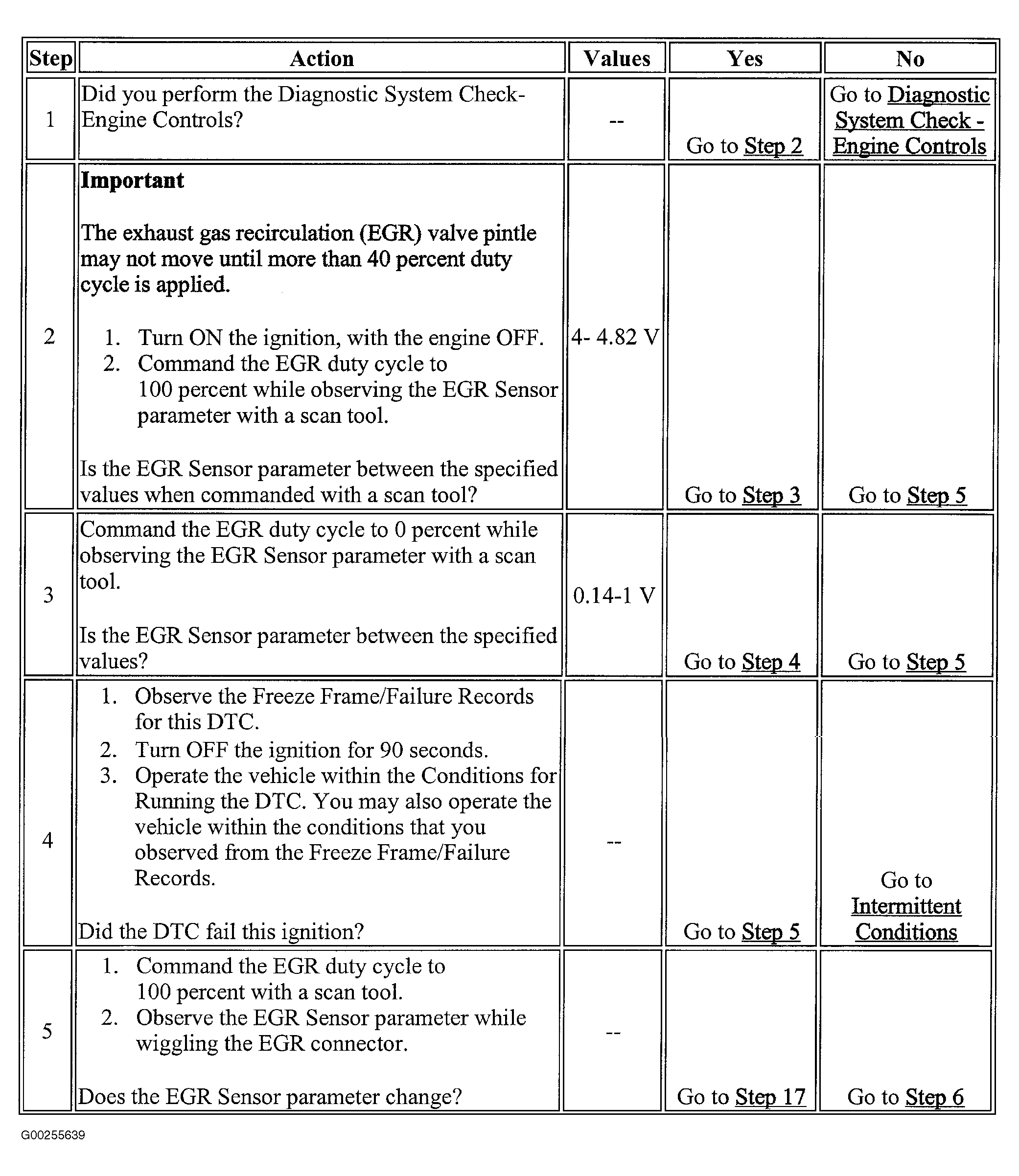

Fig 1: DTC P1406: EGR Pintle Position Error (Steps 1-5)
G00255639Courtesy of GENERAL MOTORS CORP.

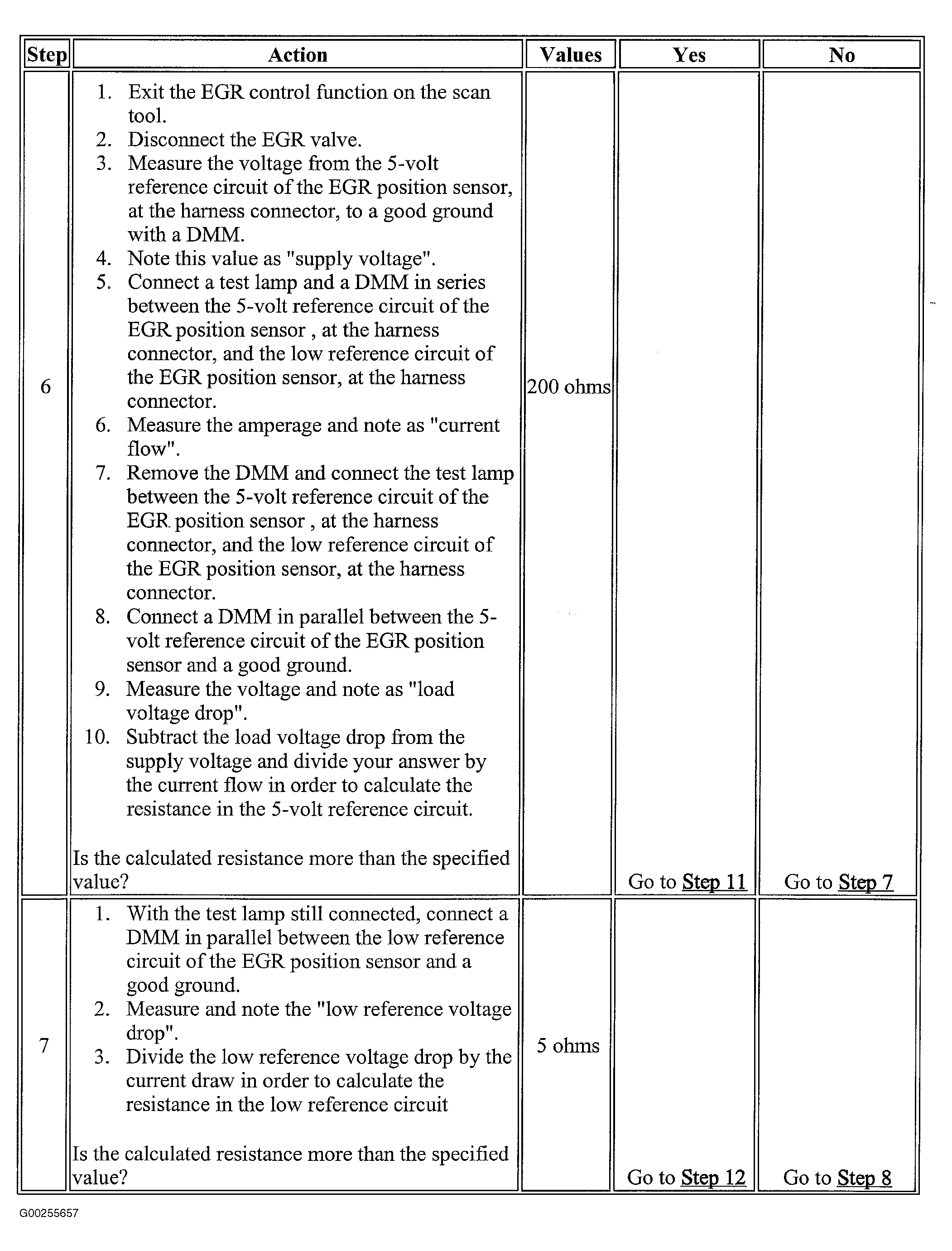

Fig 2: DTC P1406: EGR Pintle Position Error (Steps 6 & 7)
G00255657Courtesy of GENERAL MOTORS CORP.

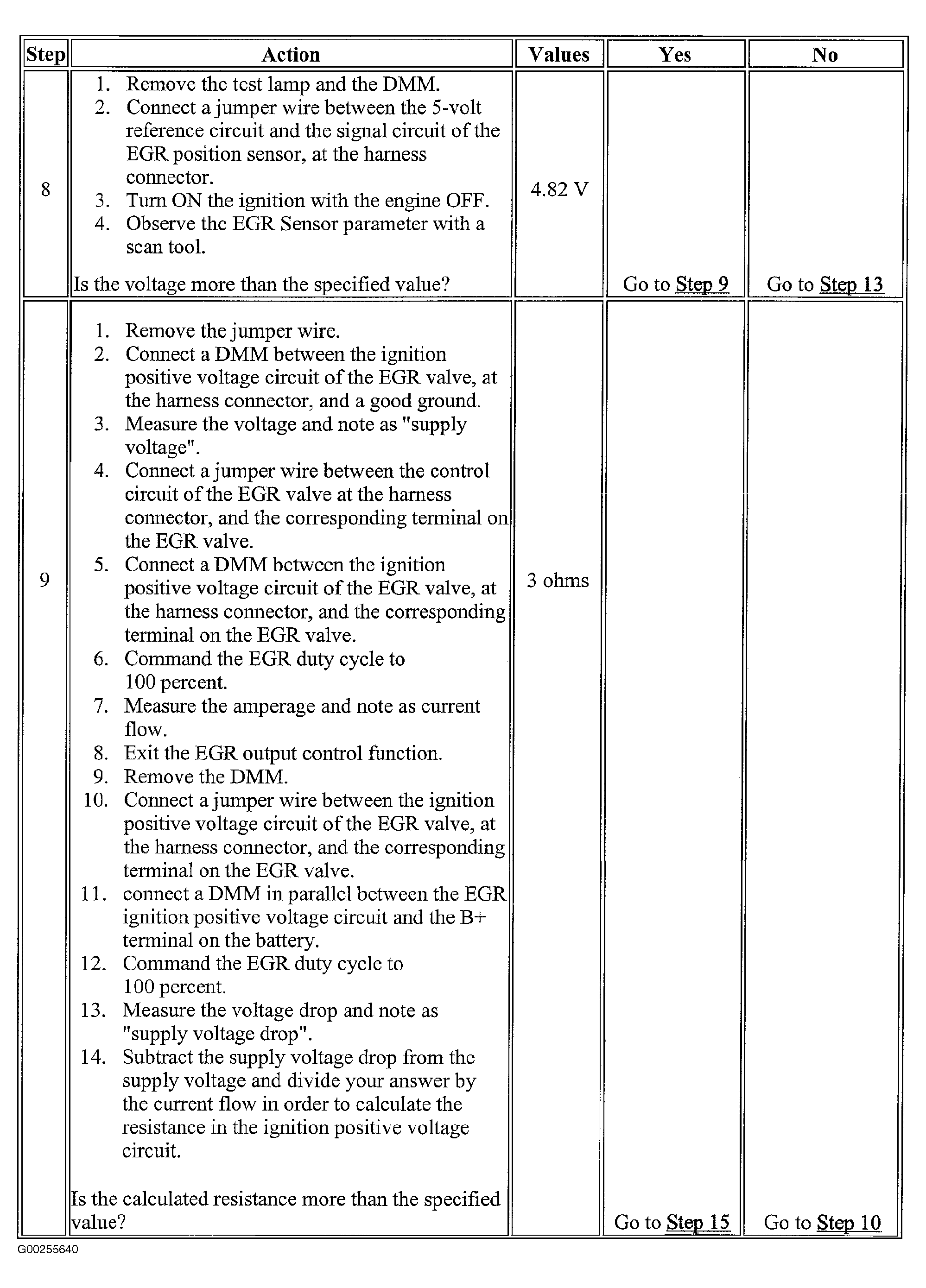

Fig 3: DTC P1406: EGR Pintle Position Error (Steps 8 & 9)
G00255640Courtesy of GENERAL MOTORS CORP.

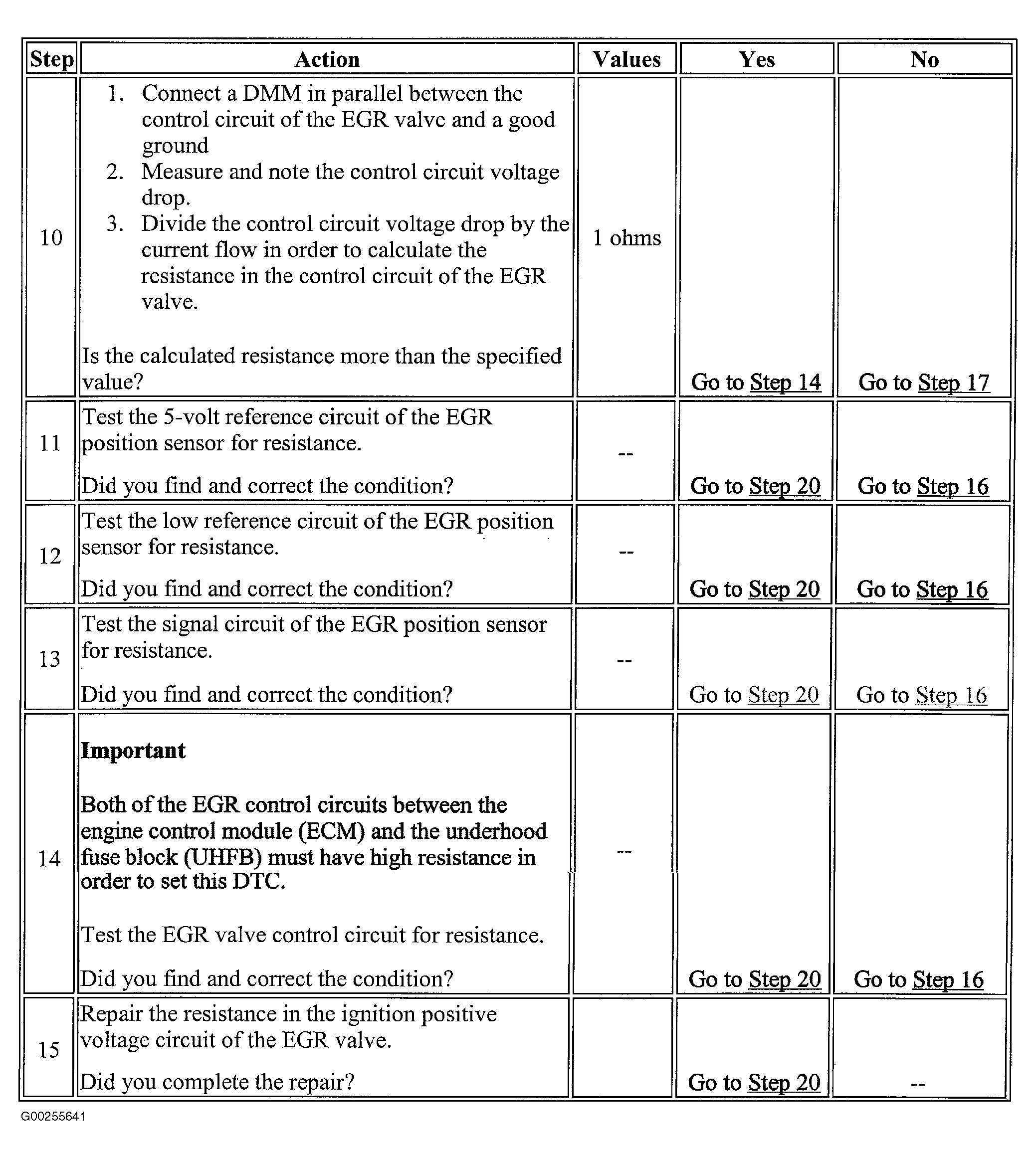

Fig 4: DTC P1406: EGR Pintle Position Error (Steps 10-15)
G00255641Courtesy of GENERAL MOTORS CORP.

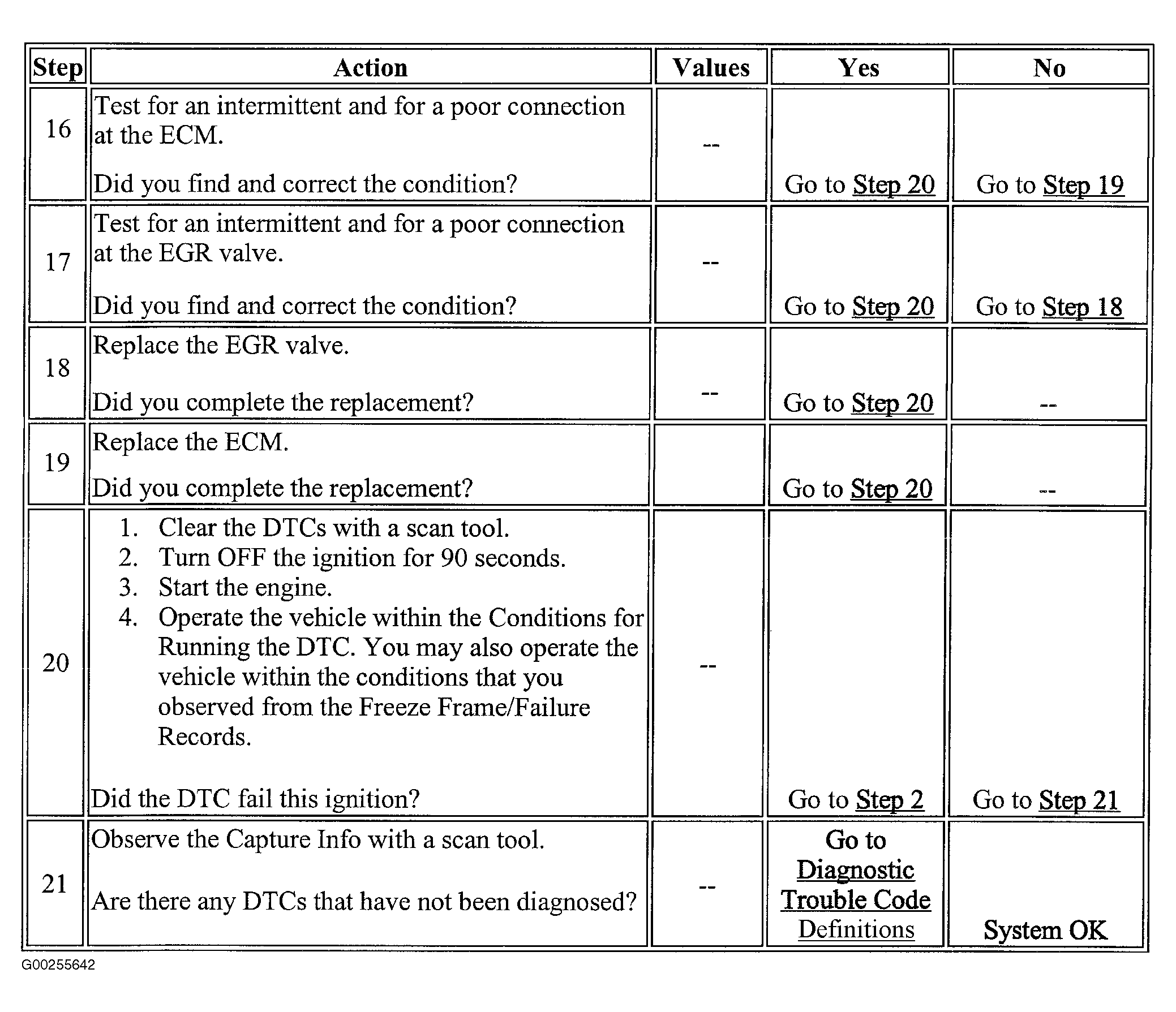

Fig 5: DTC P1406: EGR Pintle Position Error (Steps 16-21)
G00255642Courtesy of GENERAL MOTORS CORP.
