Diagnostic Procedure

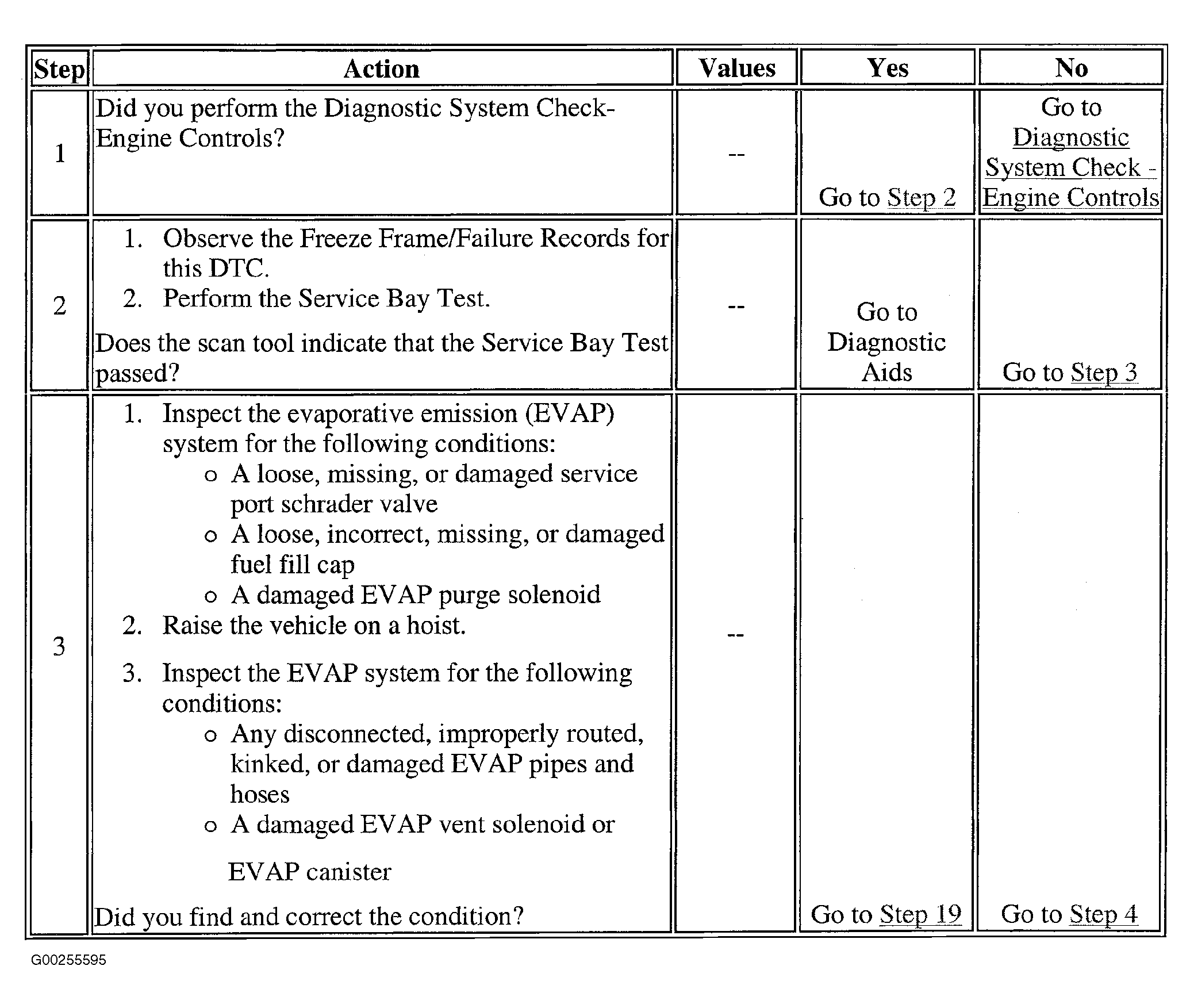

Fig 1: DTC P0455: EVAP System Gross Leak Detected (Steps 1-3)
G00255595Courtesy of GENERAL MOTORS CORP.

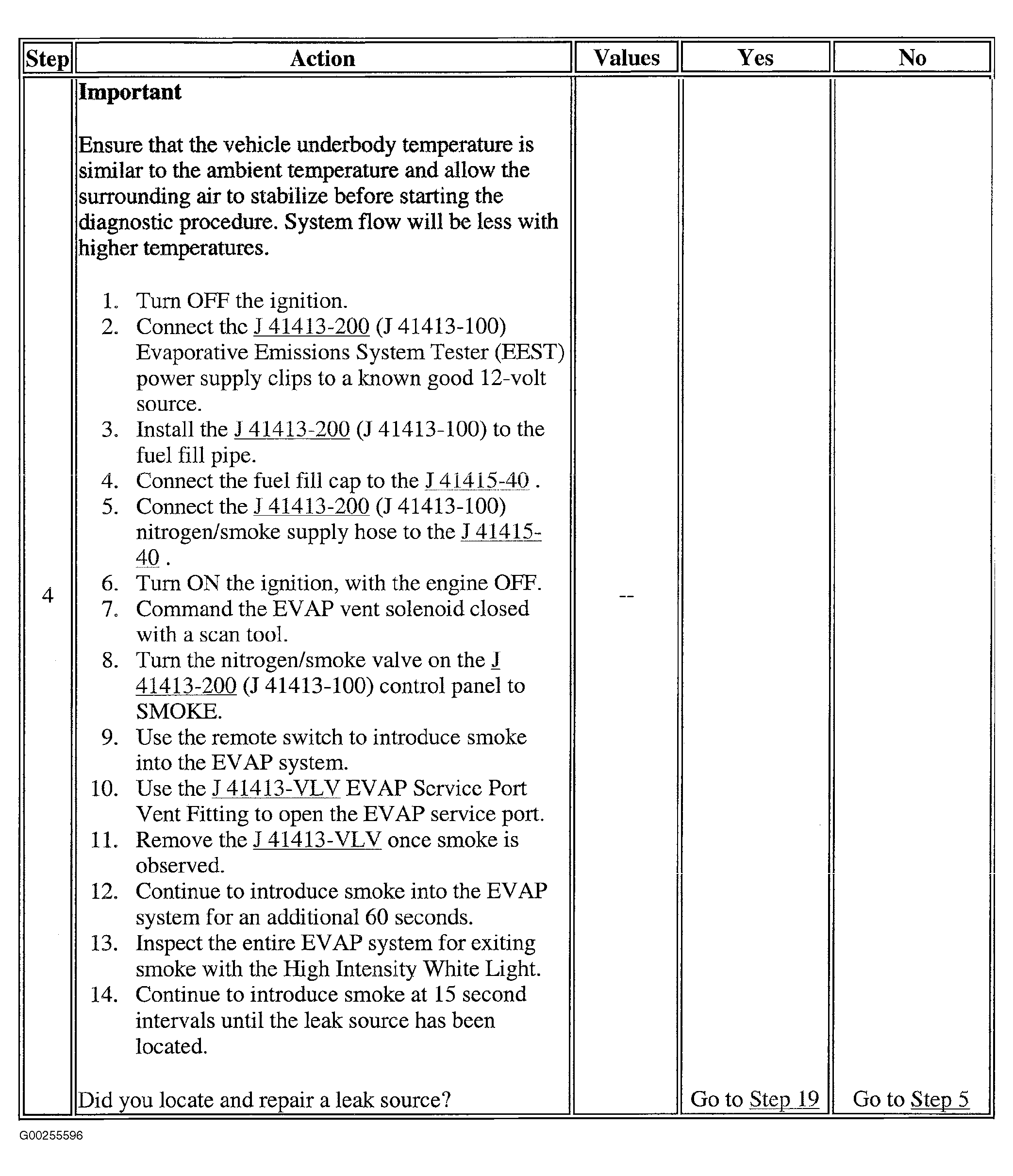

Fig 2: DTC P0455: EVAP System Gross Leak Detected (Step 4)
G00255596Courtesy of GENERAL MOTORS CORP.

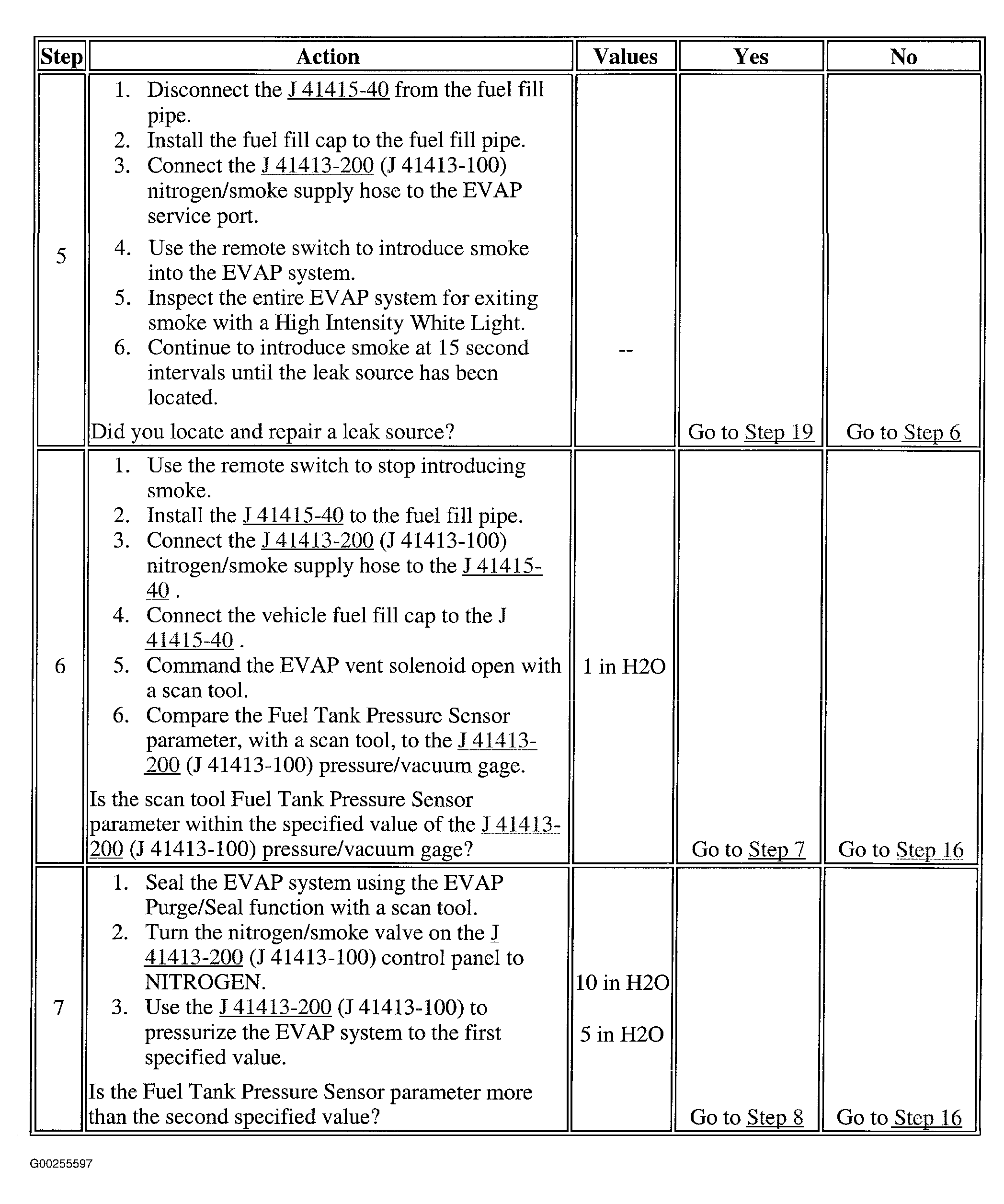

Fig 3: DTC P0455: EVAP System Gross Leak Detected (Steps 5-7)
G00255597Courtesy of GENERAL MOTORS CORP.

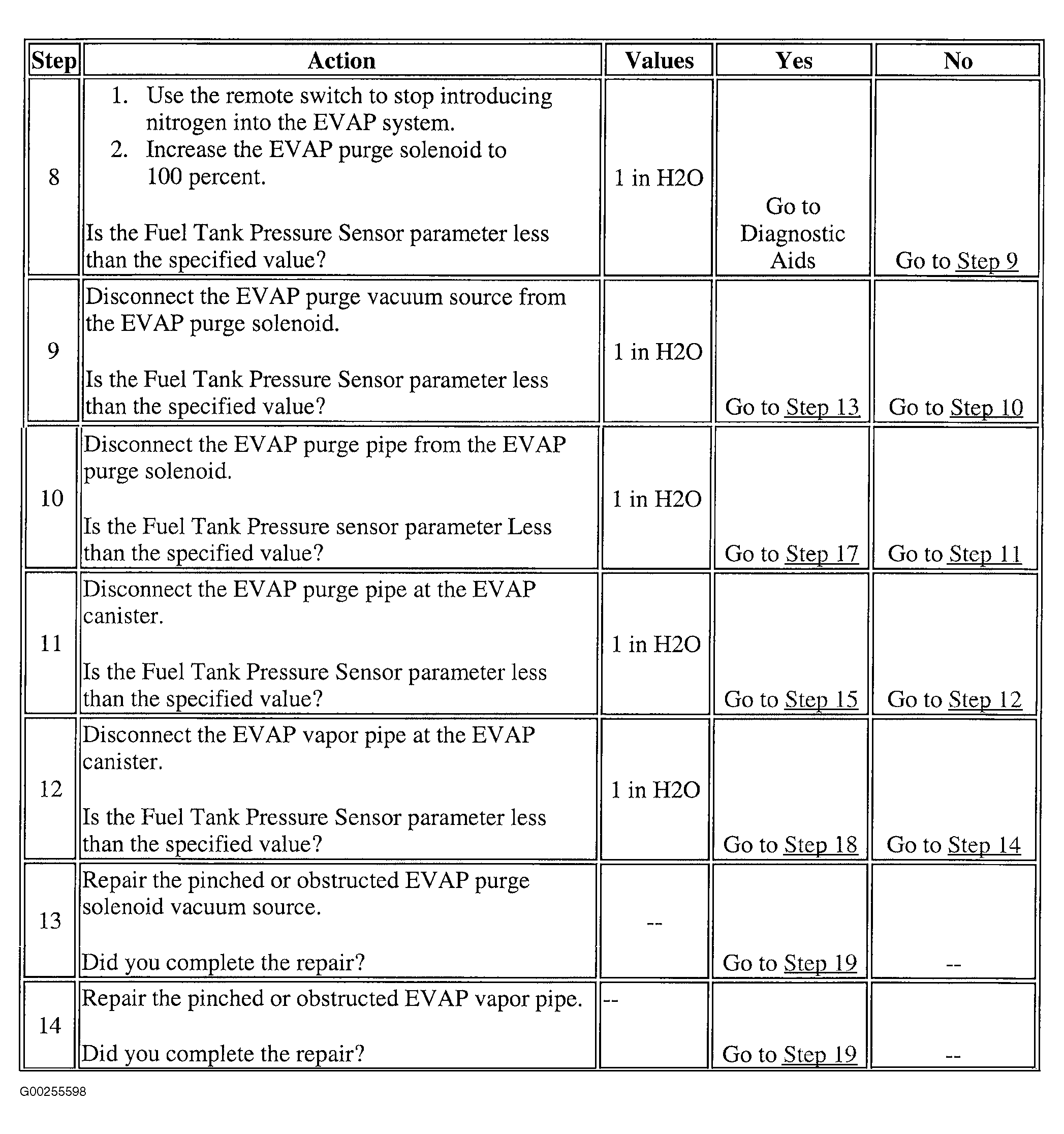

Fig 4: DTC P0455: EVAP System Gross Leak Detected (Steps 8-14)
G00255598Courtesy of GENERAL MOTORS CORP.

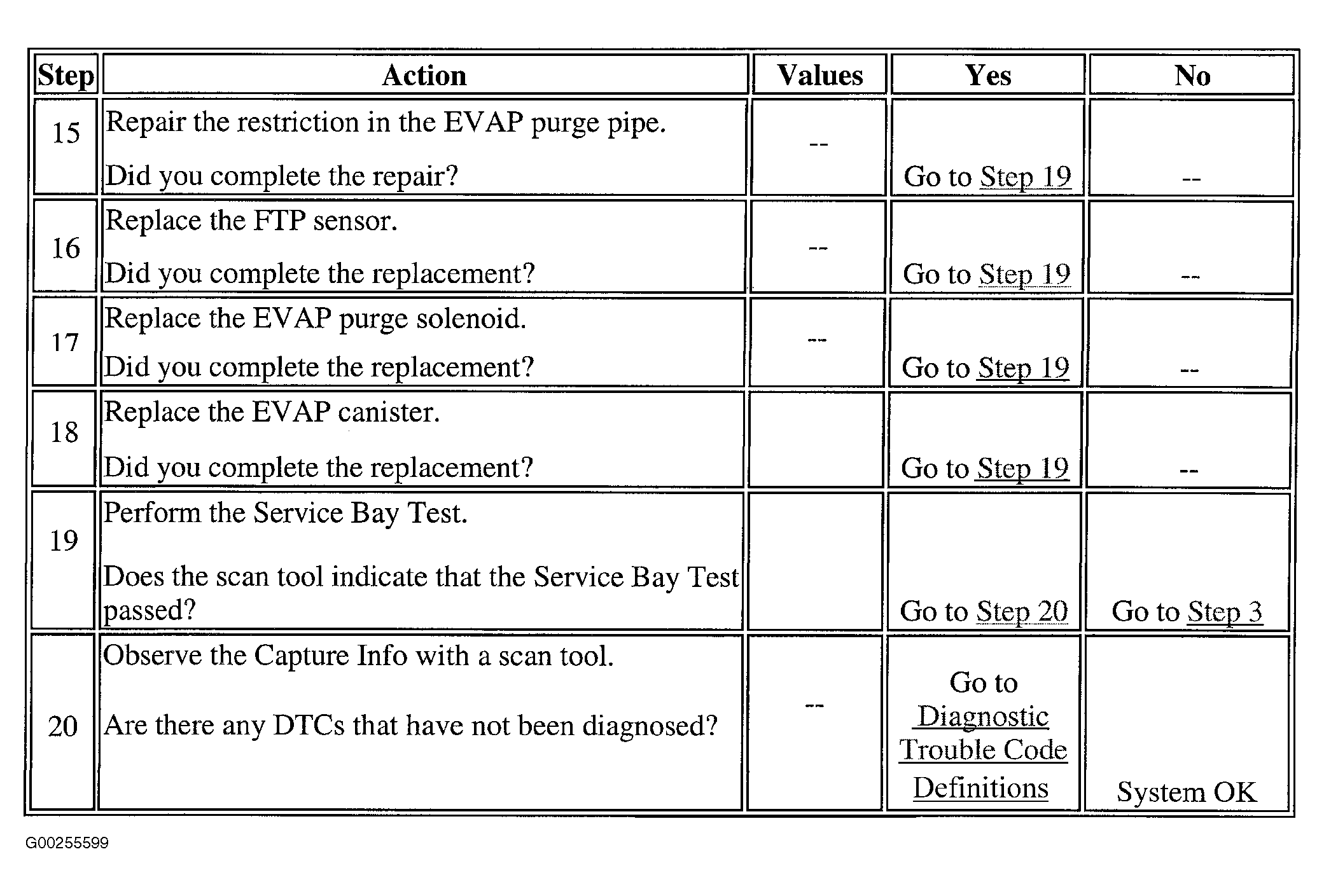

Fig 5: DTC P0455: EVAP System Gross Leak Detected (Steps 15-20)
G00255599Courtesy of GENERAL MOTORS CORP.
