Home >> Saturn >> 2003 >> L300 >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Self-Diagnostics >> Diagnostic Tests >> DTC P0442: EVAP System - Small Leak Detected >> Diagnostic Procedure

Diagnostic Procedure

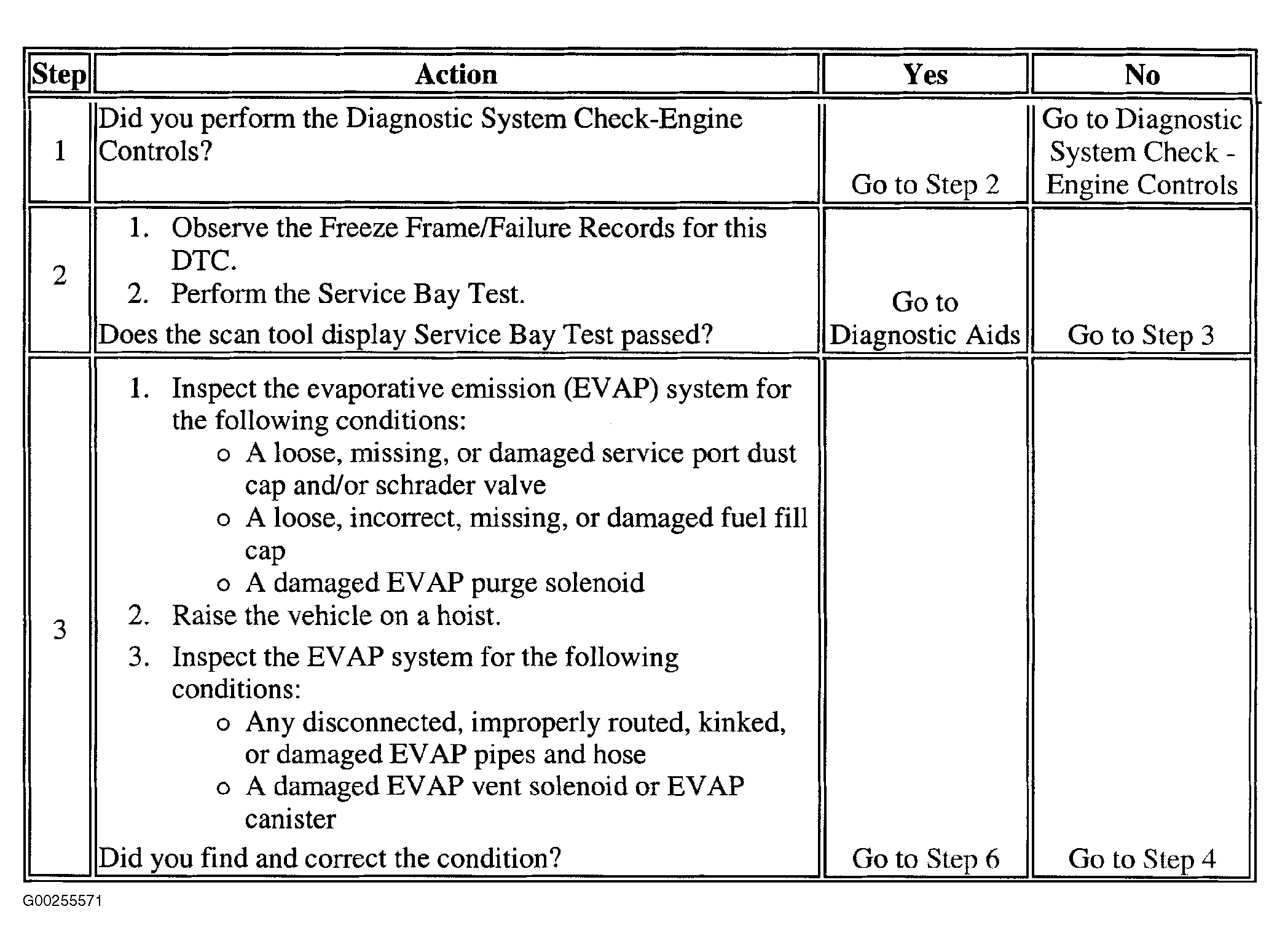

Fig 1: DTC P0442: EVAP System - Small Leak Detected (Steps 1-3)
G00255571Courtesy of GENERAL MOTORS CORP.

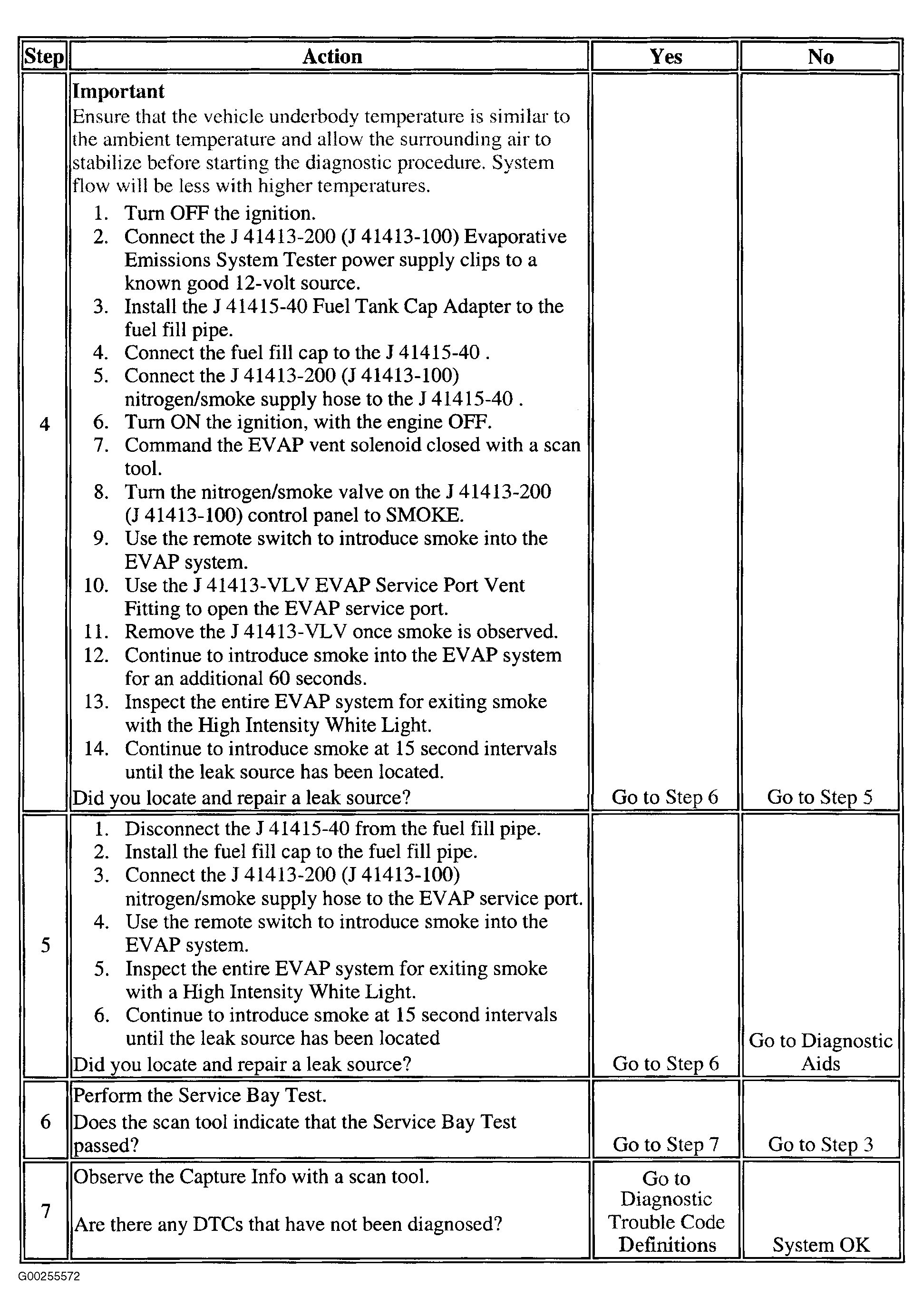

Fig 2: DTC P0442: EVAP System - Small Leak Detected (Steps 4-7)
G00255572Courtesy of GENERAL MOTORS CORP.
