Diagnostic Procedure

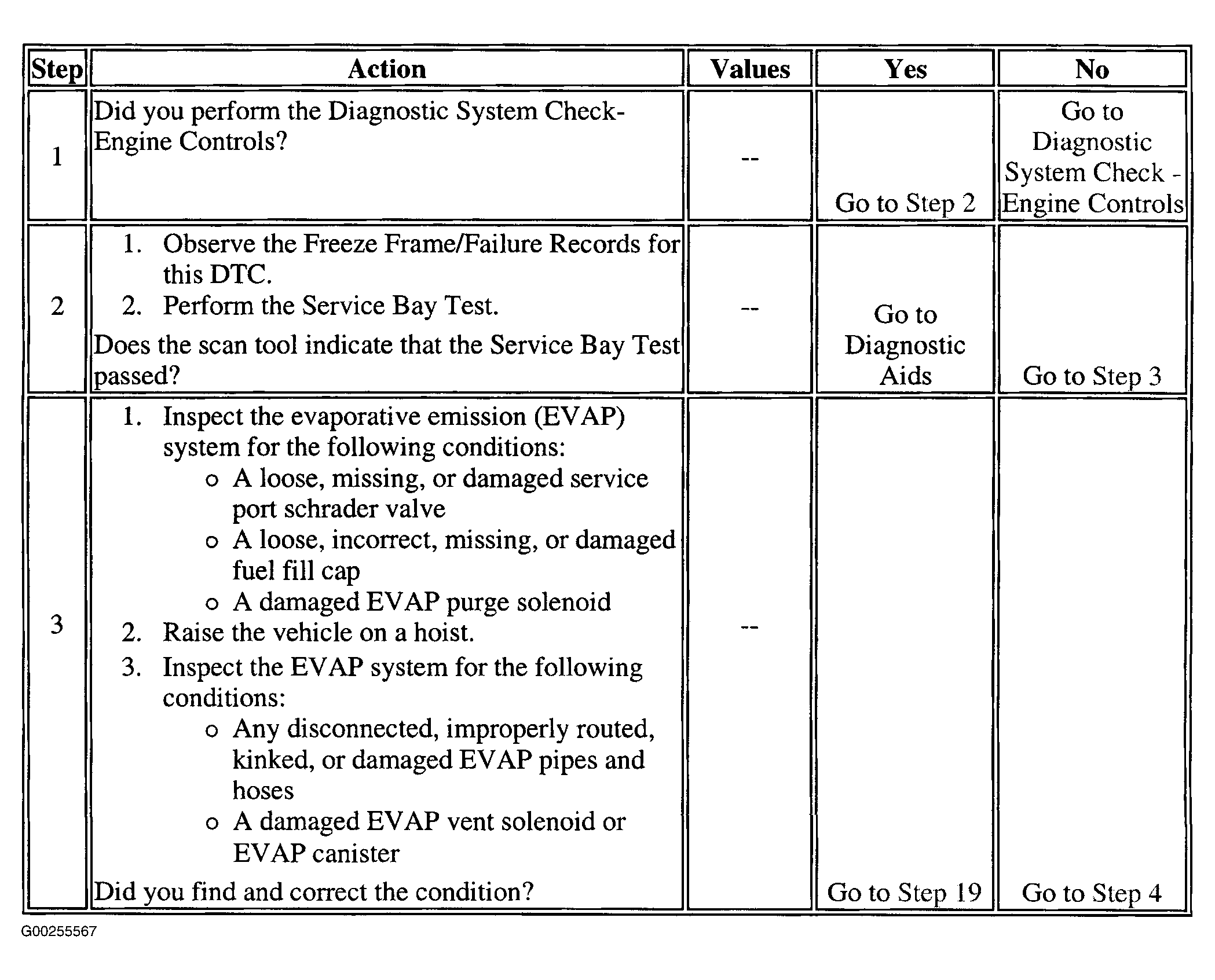

Fig 1: DTC P0440: EVAP System - Flow During Non-Purge (Steps 1-3)
G00255567Courtesy of GENERAL MOTORS CORP.

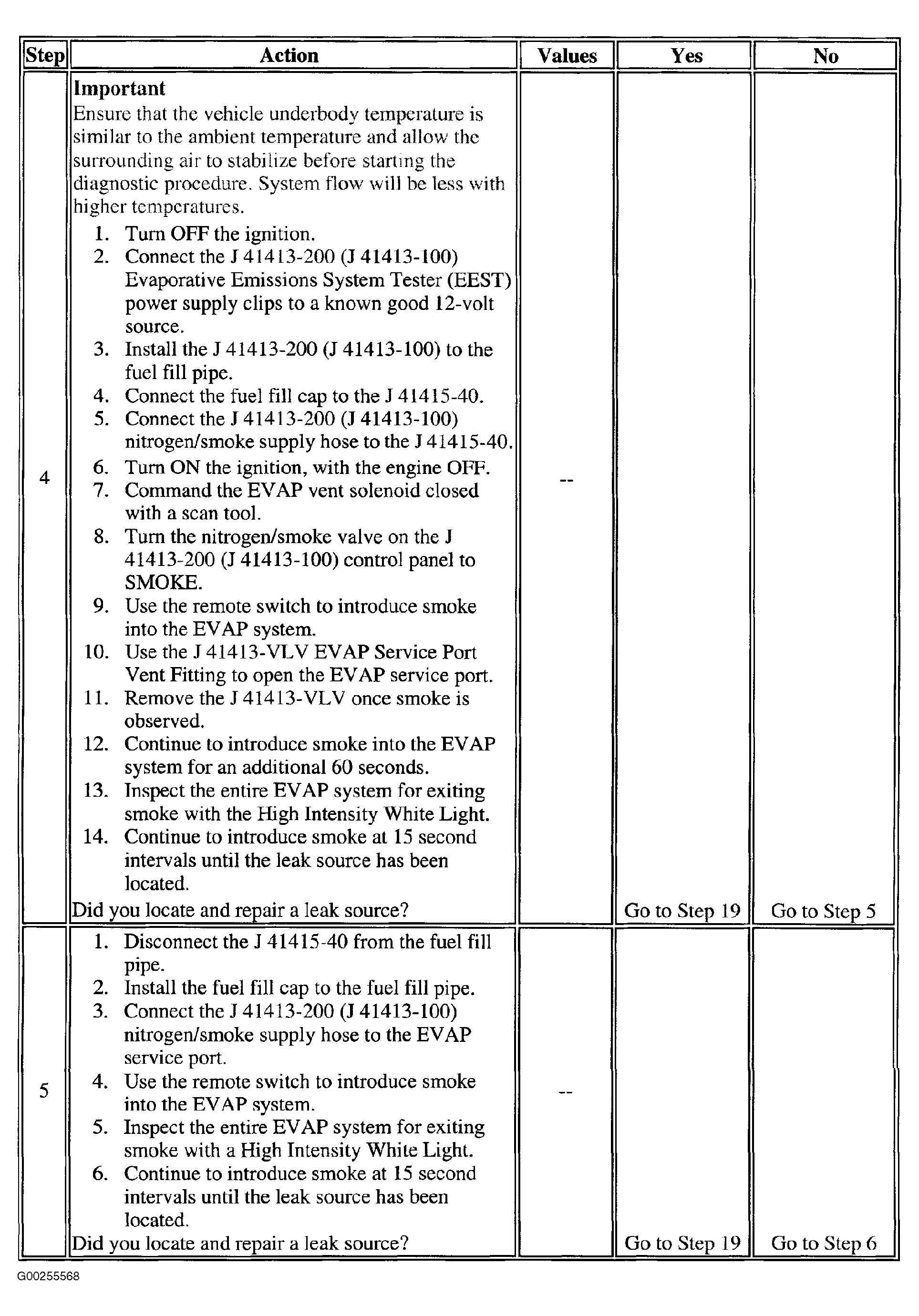

Fig 2: DTC P0440: EVAP System - Flow During Non-Purge (Steps 4 & 5)
G00255568Courtesy of GENERAL MOTORS CORP.

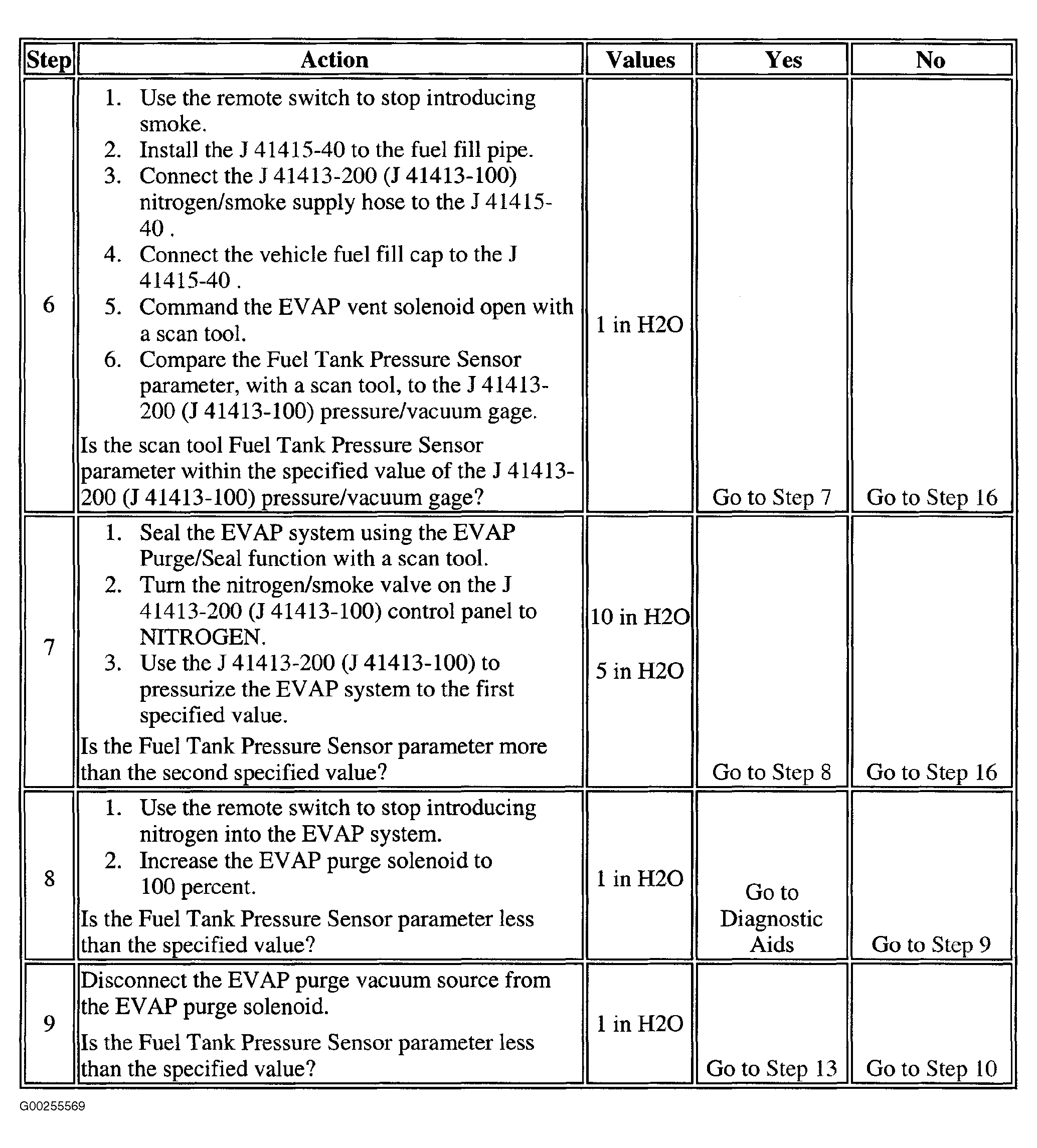

Fig 3: DTC P0440: EVAP System - Flow During Non-Purge (Steps 6-9)
G00255569Courtesy of GENERAL MOTORS CORP.

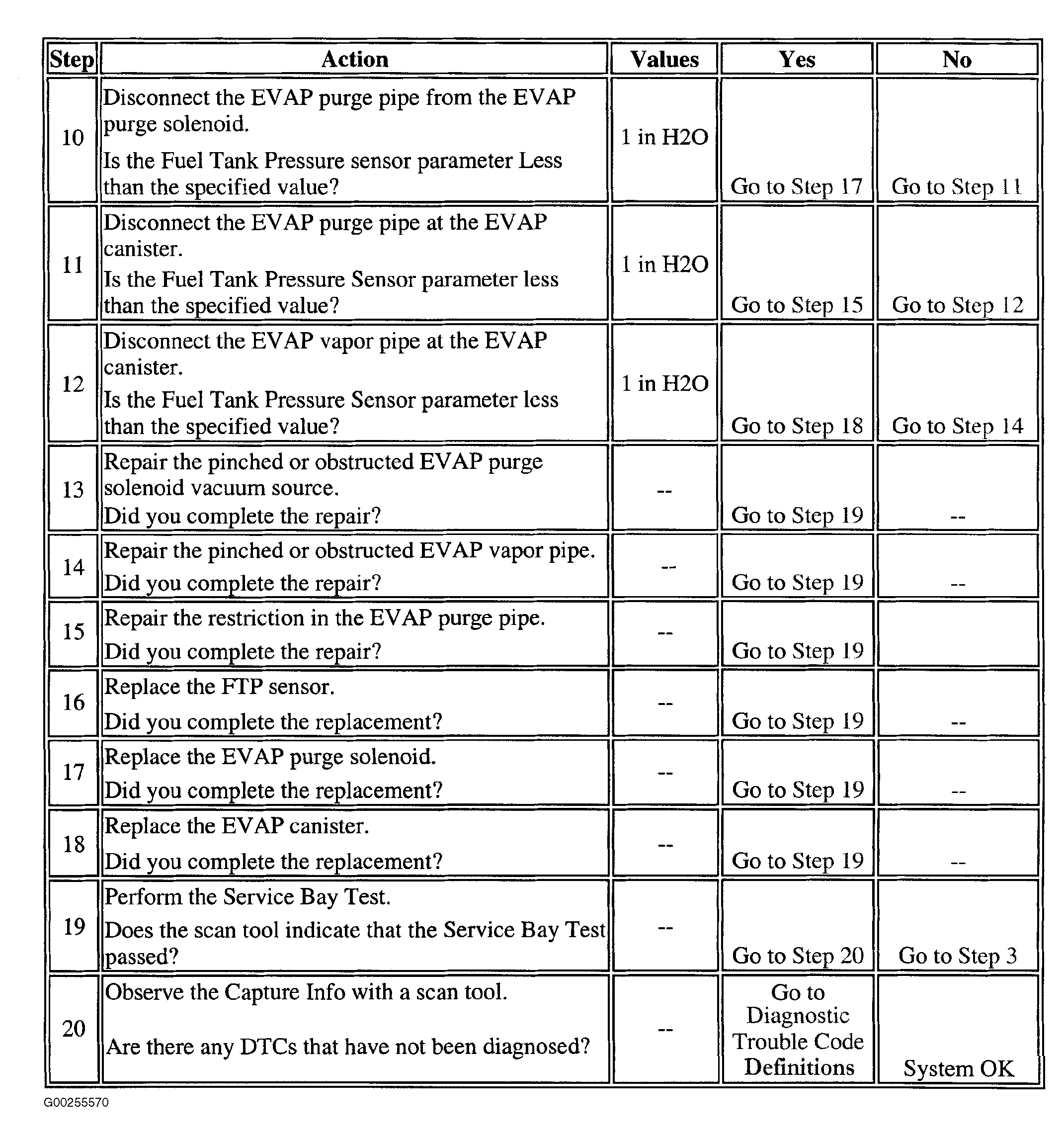

Fig 4: DTC P0440: EVAP System - Flow During Non-Purge (Steps 10-20)
G00255570Courtesy of GENERAL MOTORS CORP.
