Diagnostic Procedure

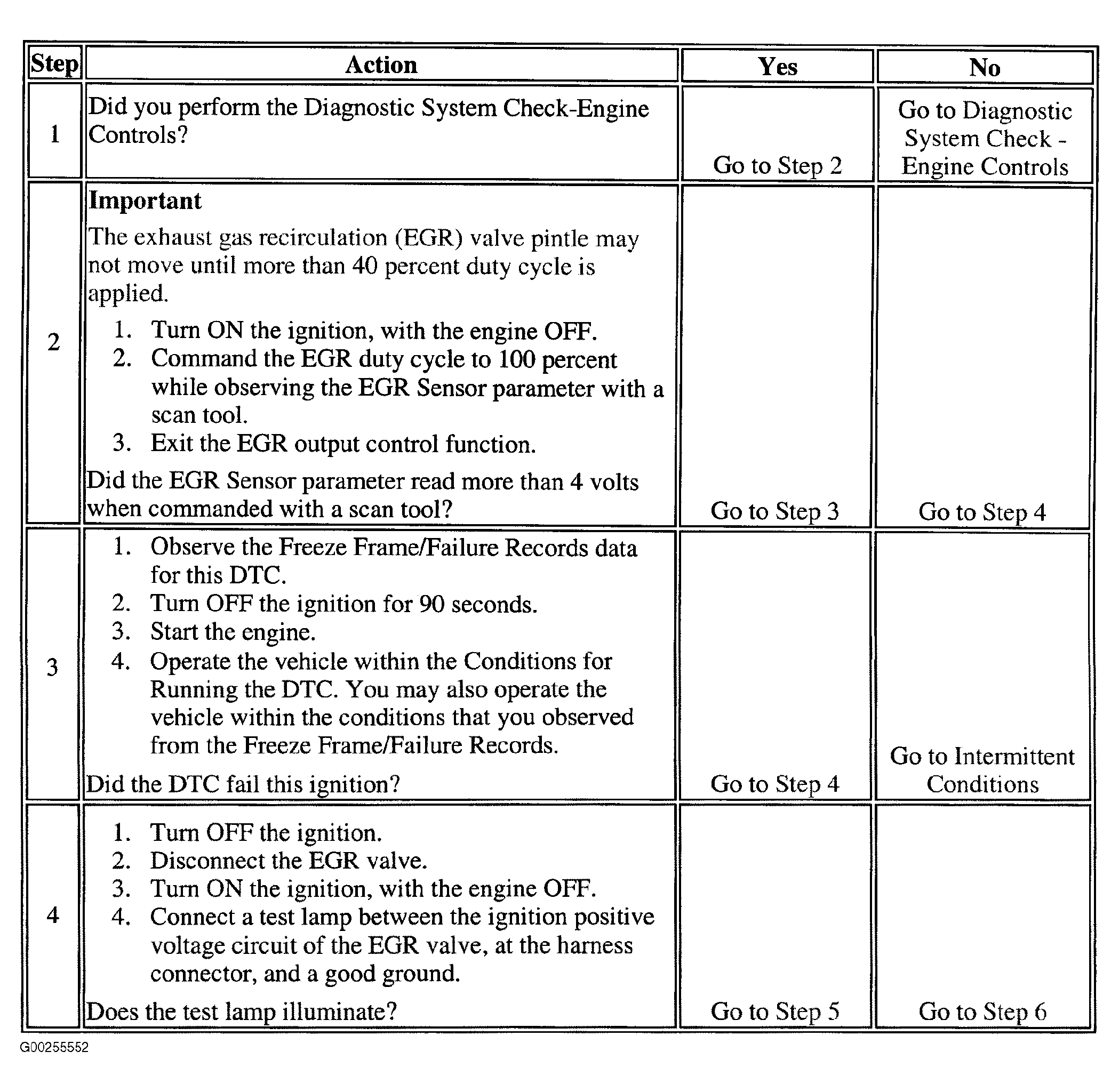

Fig 1: DTC P0403: EGR Solenoid Control Circuit (Steps 1-4)
G00255552Courtesy of GENERAL MOTORS CORP.

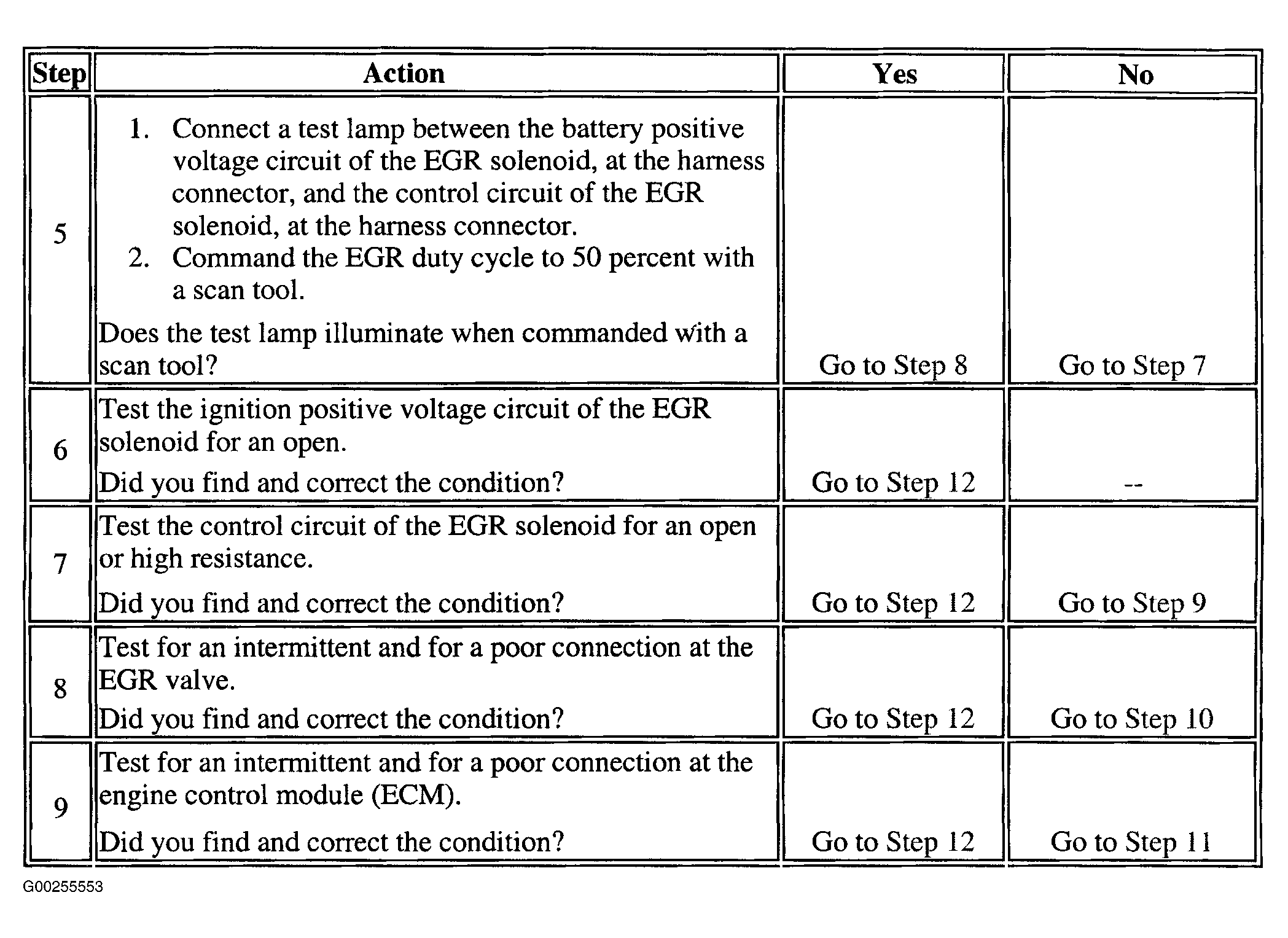

Fig 2: DTC P0403: EGR Solenoid Control Circuit (Steps 5-9)
G00255553Courtesy of GENERAL MOTORS CORP.

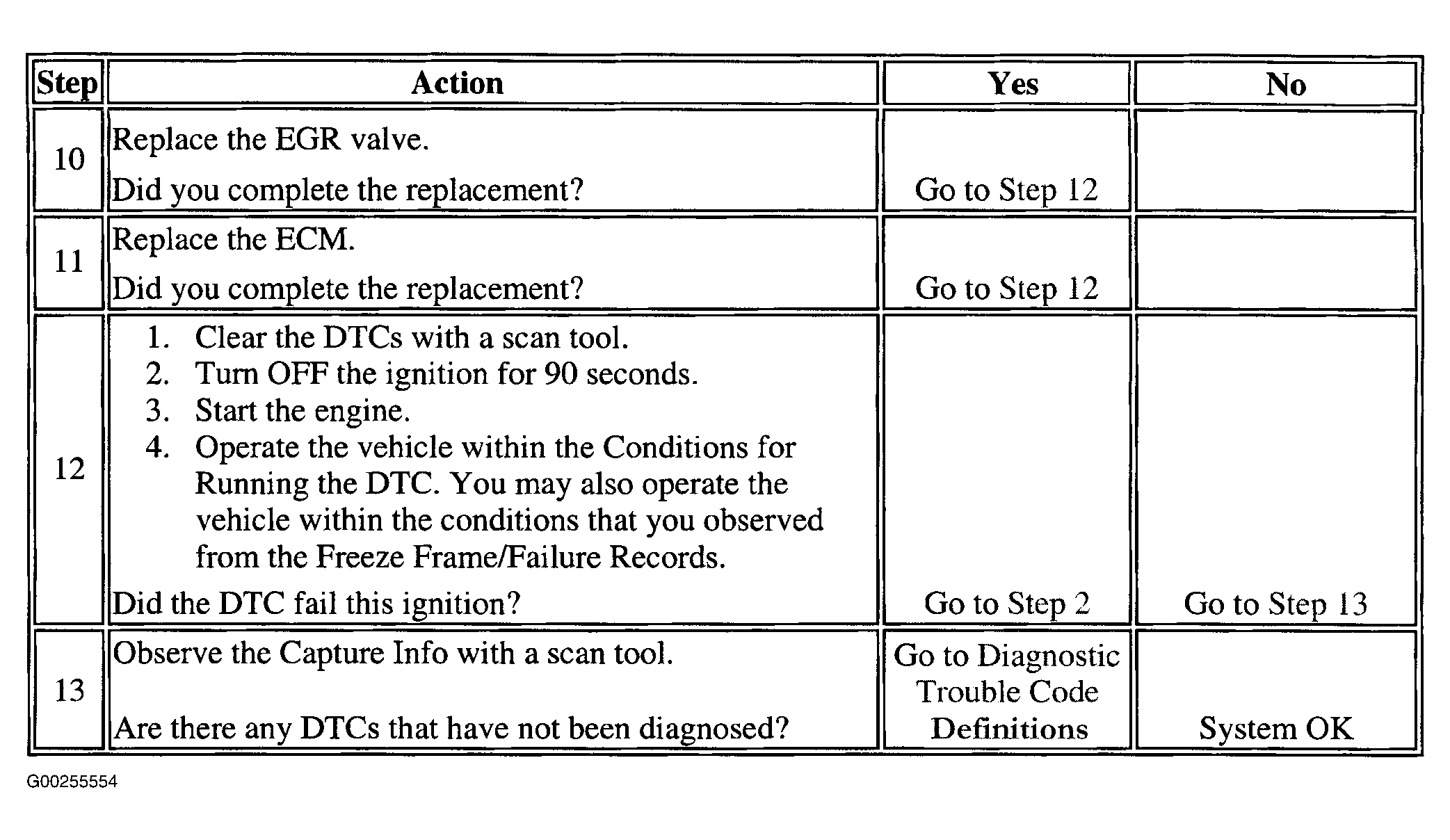

Fig 3: DTC P0403: EGR Solenoid Control Circuit (Steps 10-13)
G00255554Courtesy of GENERAL MOTORS CORP.
