Diagnostic Procedure

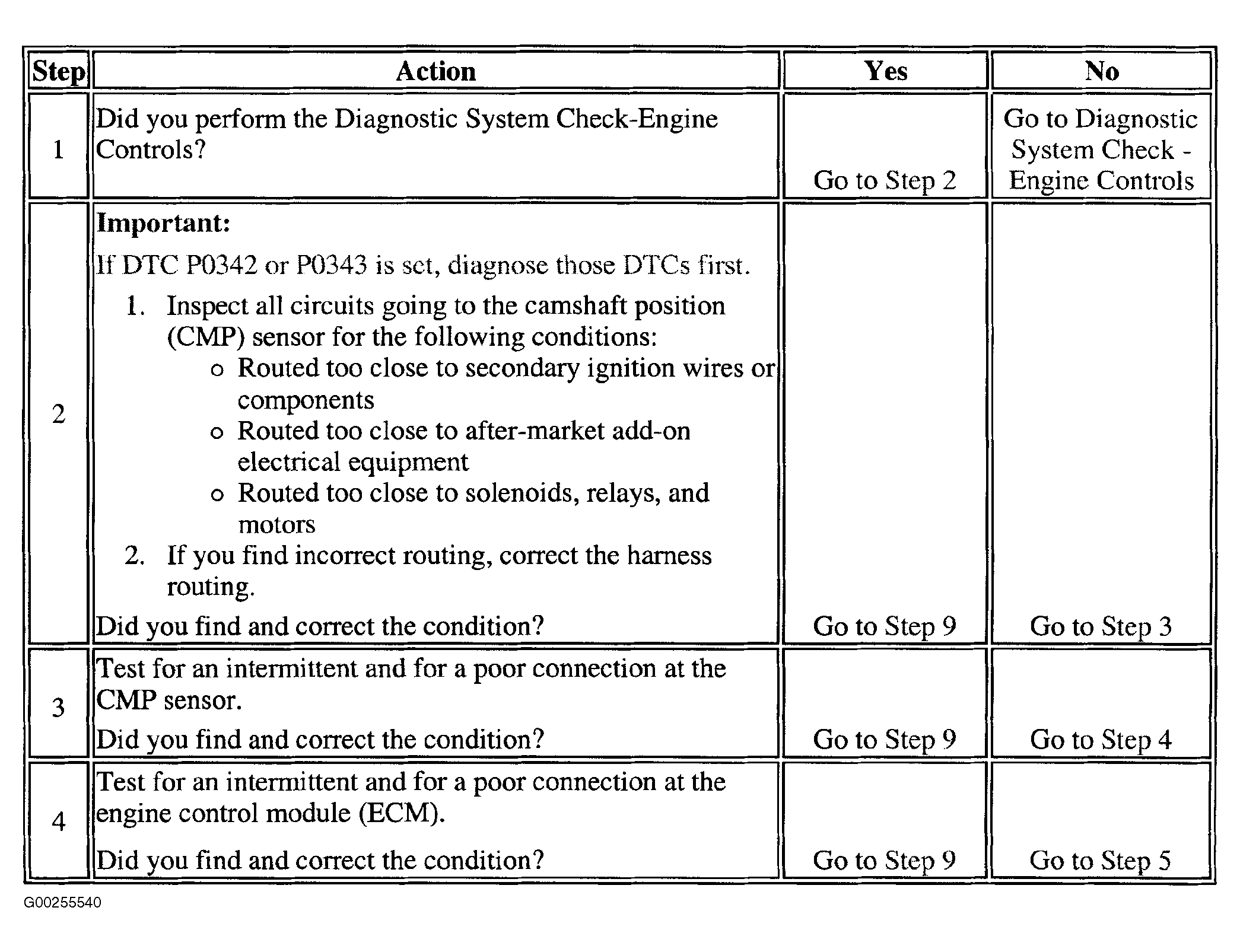

Fig 1: DTC P0341: Camshaft Position Sensor Circuit Performance (Steps 1-4)
G00255540Courtesy of GENERAL MOTORS CORP.

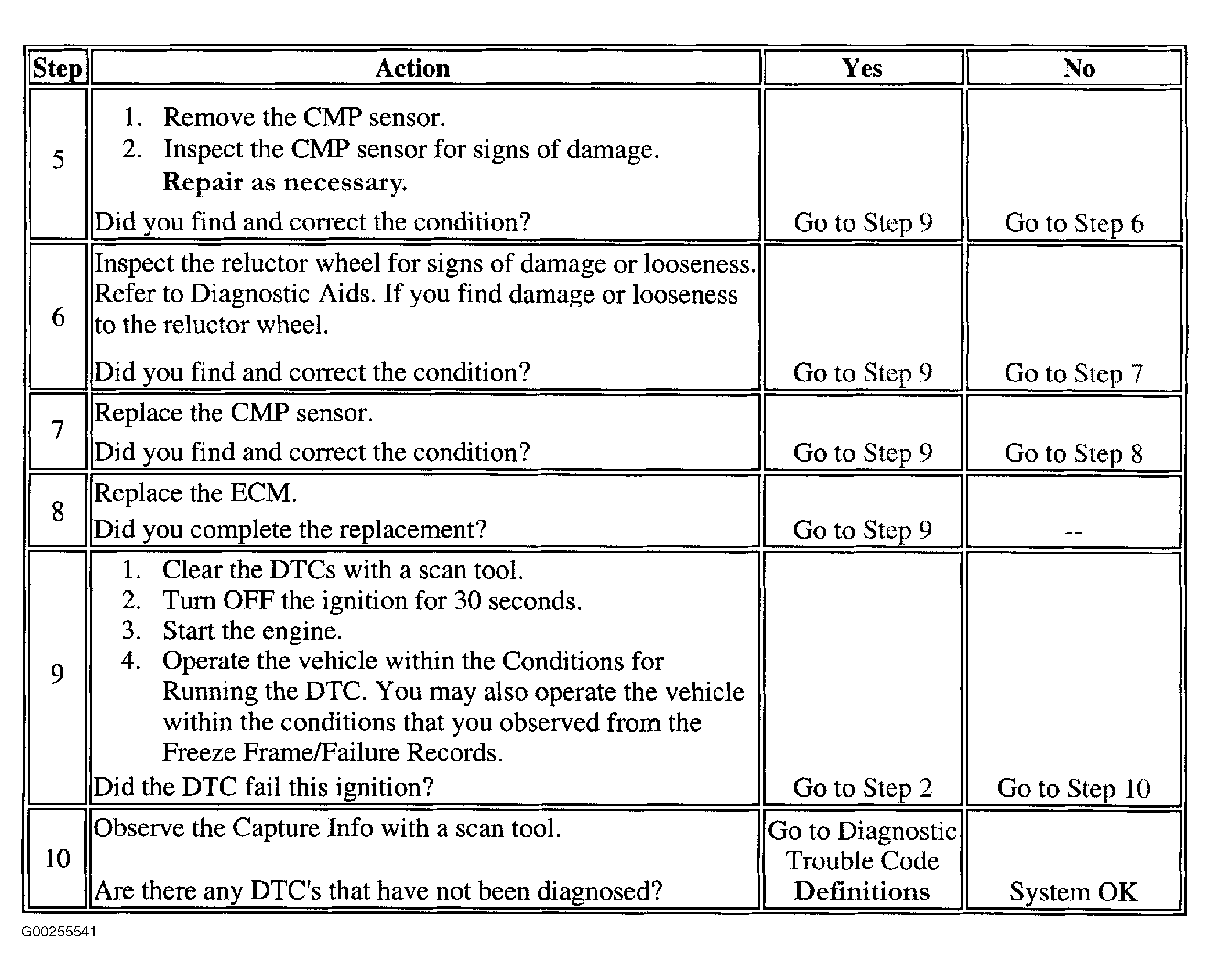

Fig 2: DTC P0341: Camshaft Position Sensor Circuit Performance (Steps 5-10)
G00255541Courtesy of GENERAL MOTORS CORP.
