Diagnostic Procedure

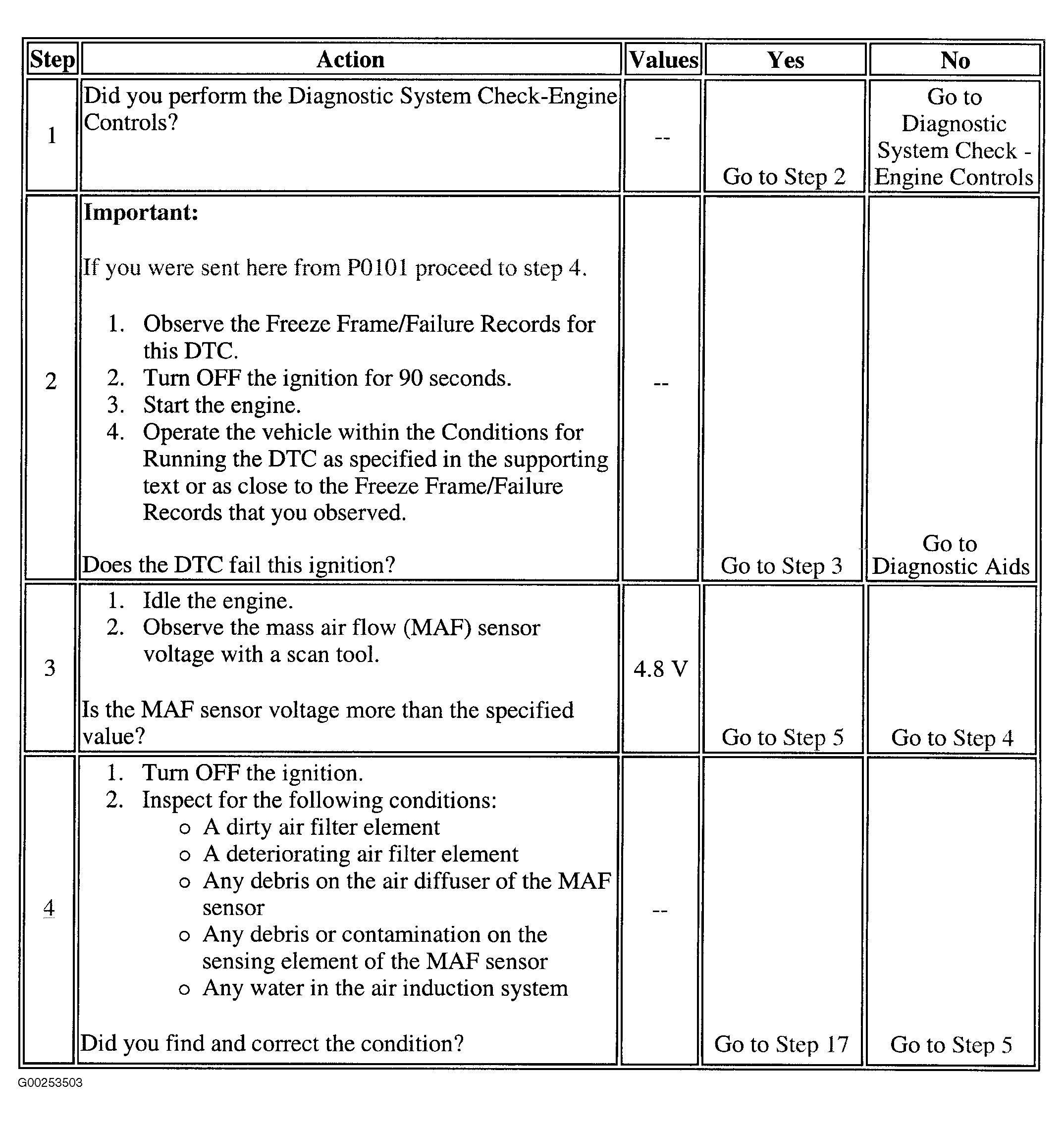

Fig 1: DTC P0103: MAF Sensor Circuit - High Signal/Frequency (Steps 1-4)
G00253503Courtesy of GENERAL MOTORS CORP.

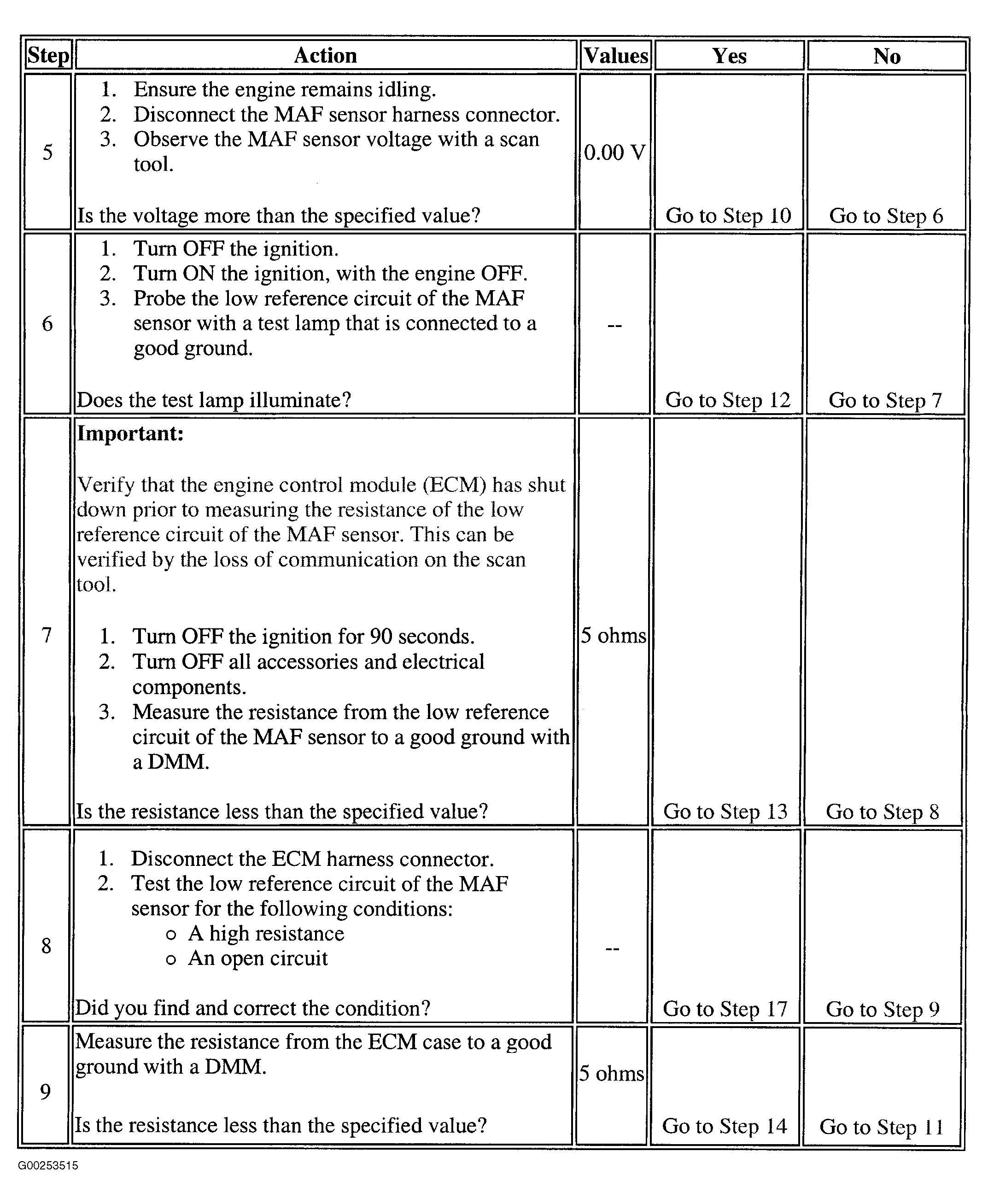

Fig 2: DTC P0103: MAF Sensor Circuit - High Signal/Frequency (Steps 5-9)
G00253515Courtesy of GENERAL MOTORS CORP.

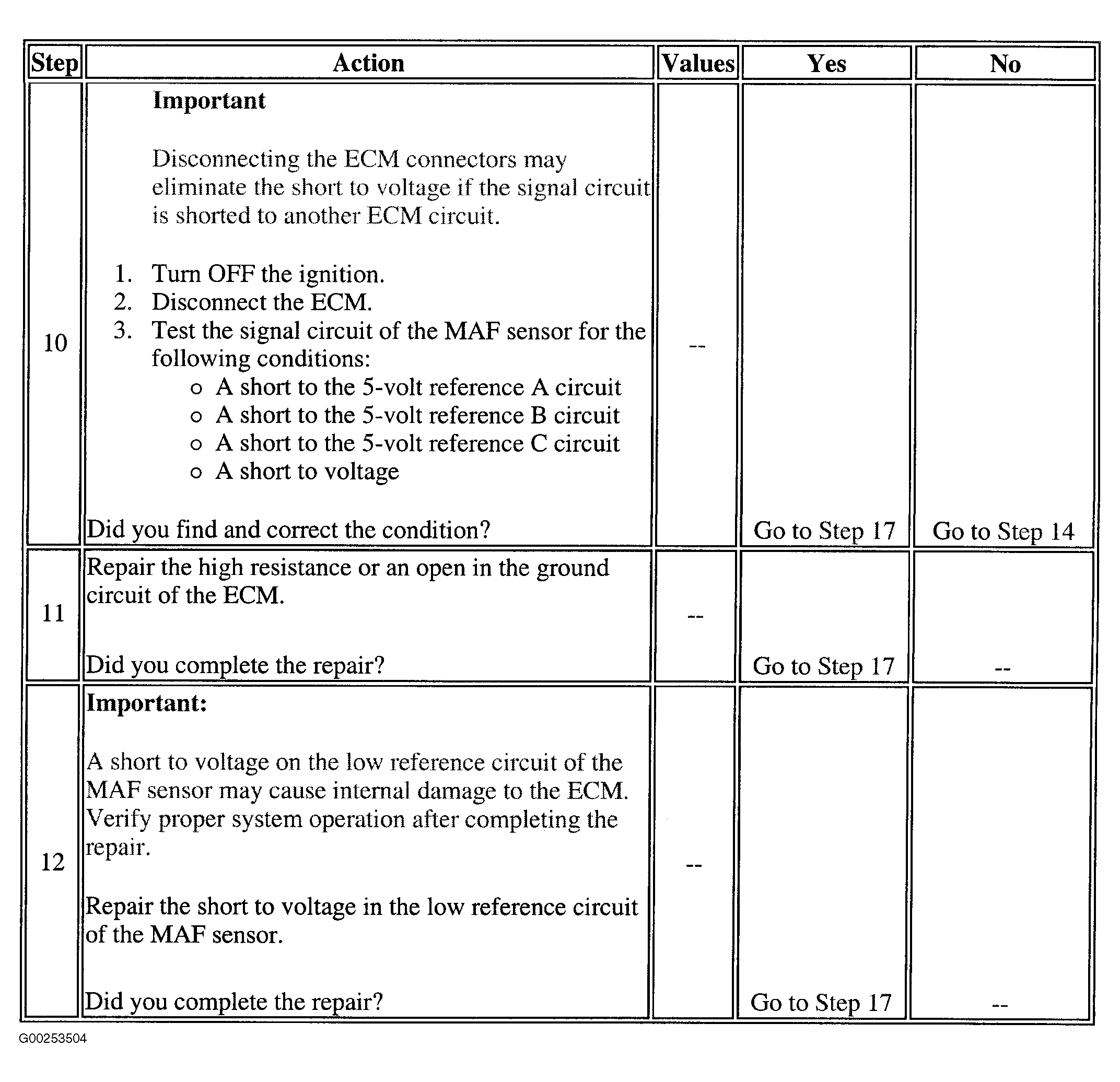

Fig 3: DTC P0103: MAF Sensor Circuit - High Signal/Frequency (Steps 10-12)
G00253504Courtesy of GENERAL MOTORS CORP.

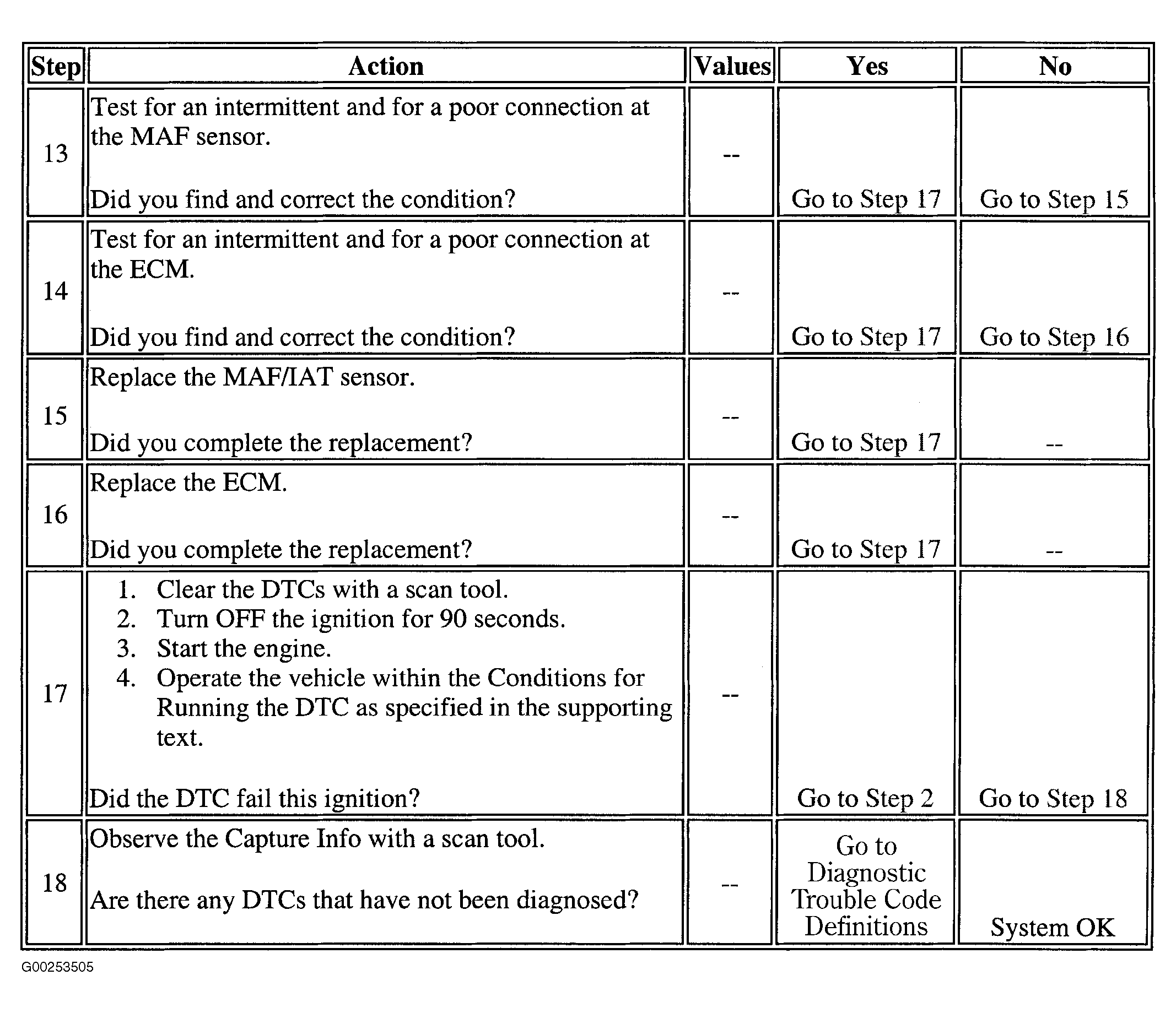

Fig 4: DTC P0103: MAF Sensor Circuit - High Signal/Frequency (Steps 13-18)
G00253505Courtesy of GENERAL MOTORS CORP.
