Diagnostic Procedure

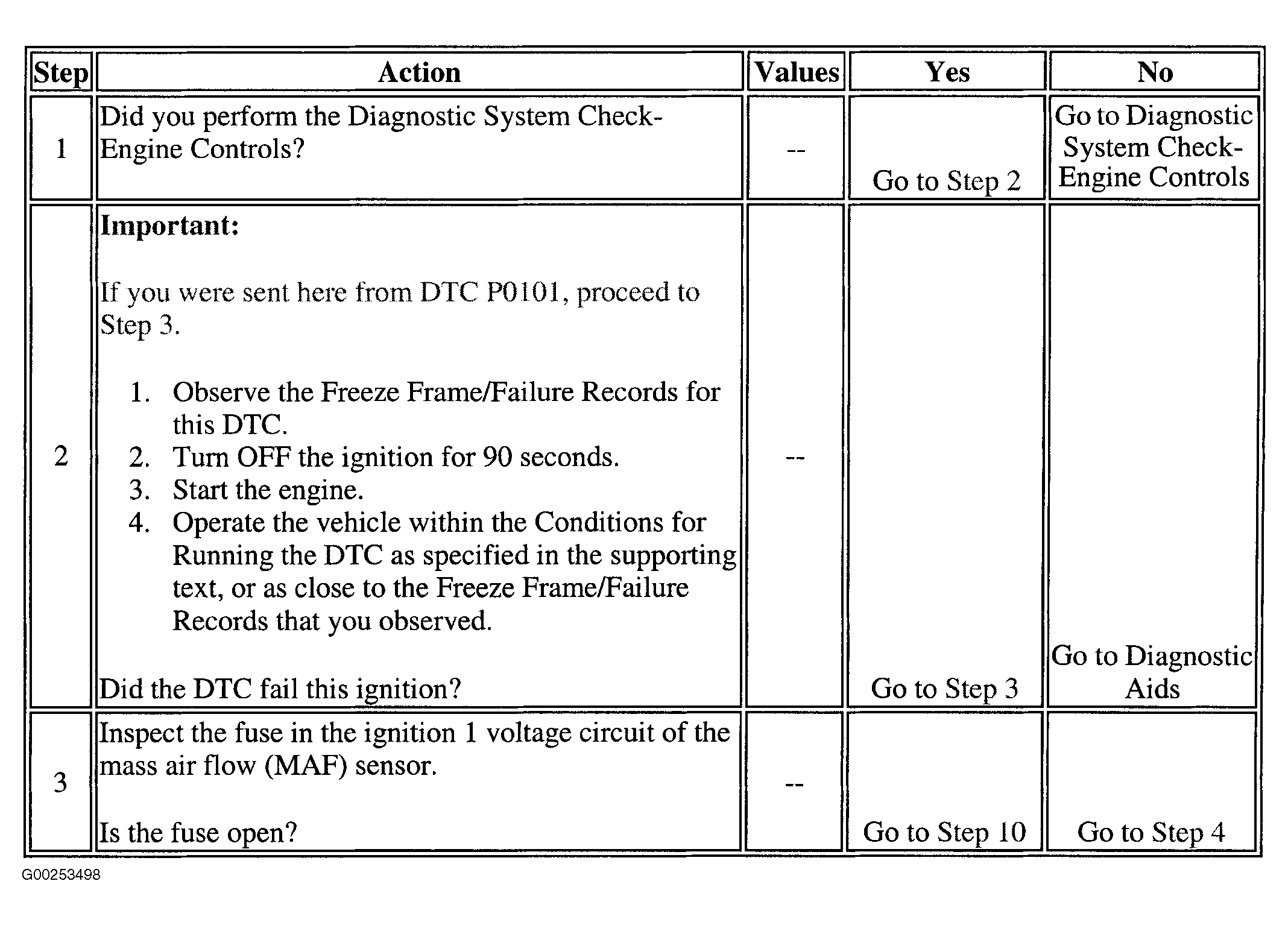

Fig 1: DTC P0102: MAF Sensor Circuit - Low Signal/Frequency (Steps 1-3)
G00253498Courtesy of GENERAL MOTORS CORP.

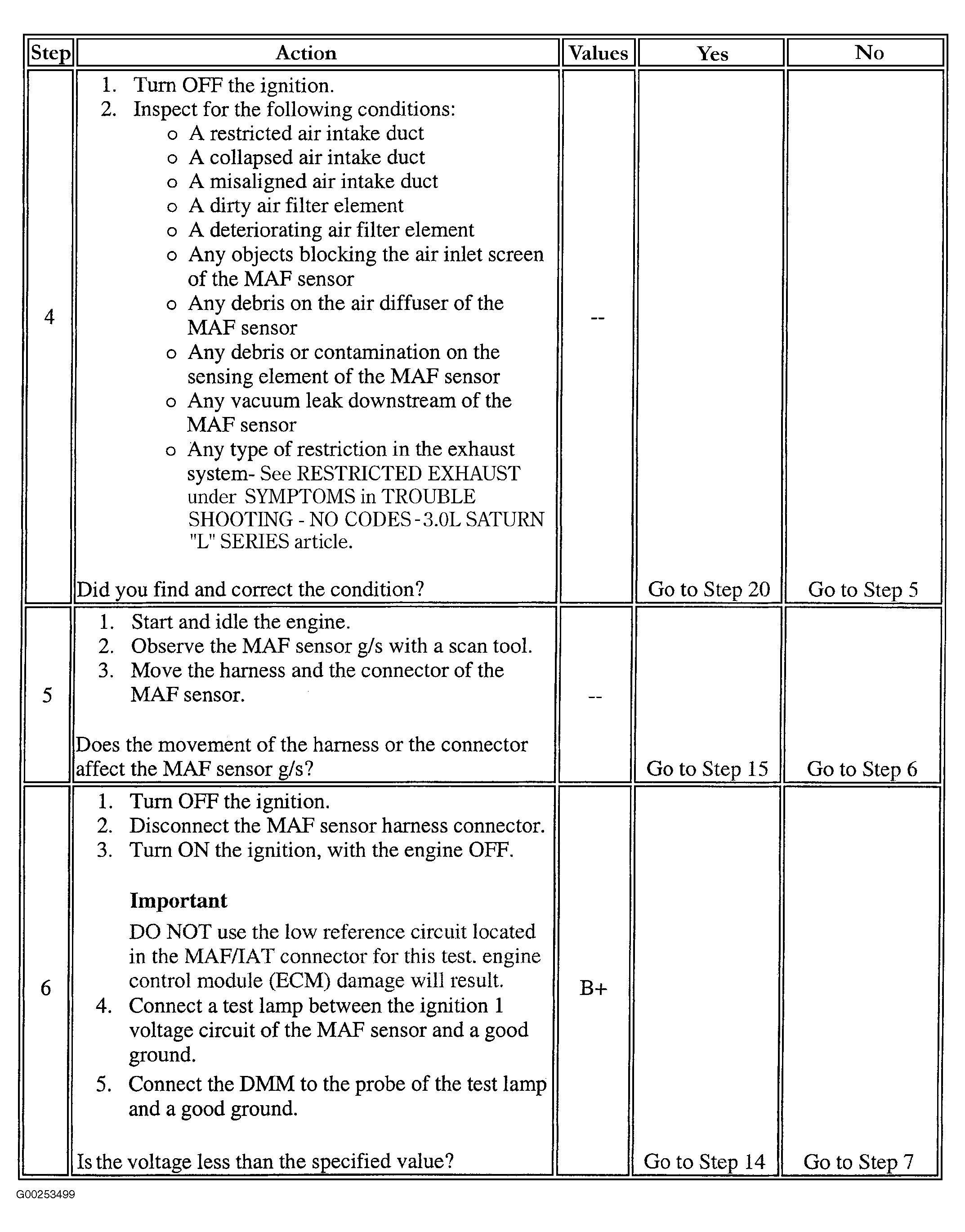

Fig 2: DTC P0102: MAF Sensor Circuit - Low Signal/Frequency (Steps 4-6)
G00253499Courtesy of GENERAL MOTORS CORP.

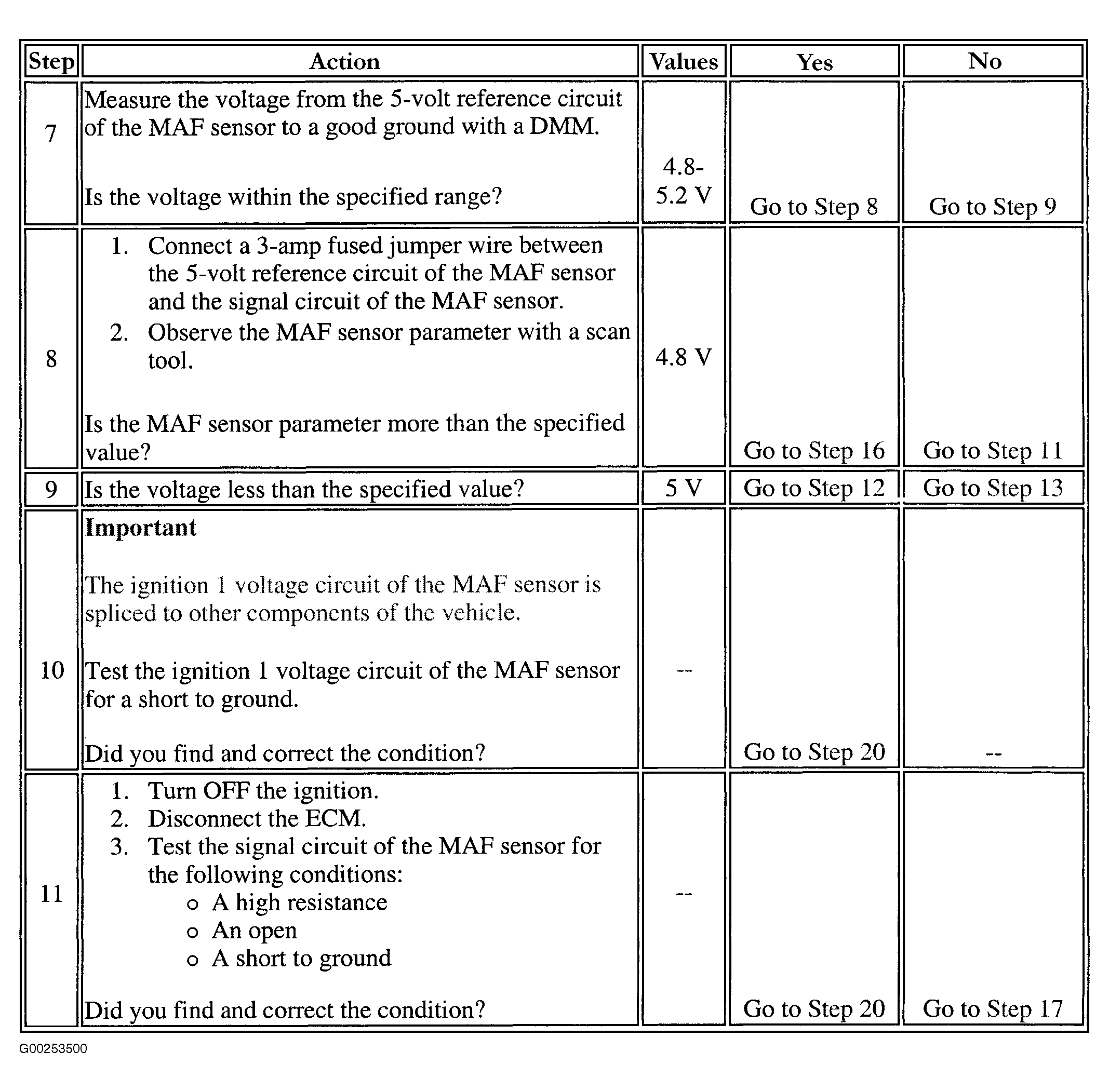

Fig 3: DTC P0102: MAF Sensor Circuit - Low Signal/Frequency (Steps 7-11)
G00253500Courtesy of GENERAL MOTORS CORP.

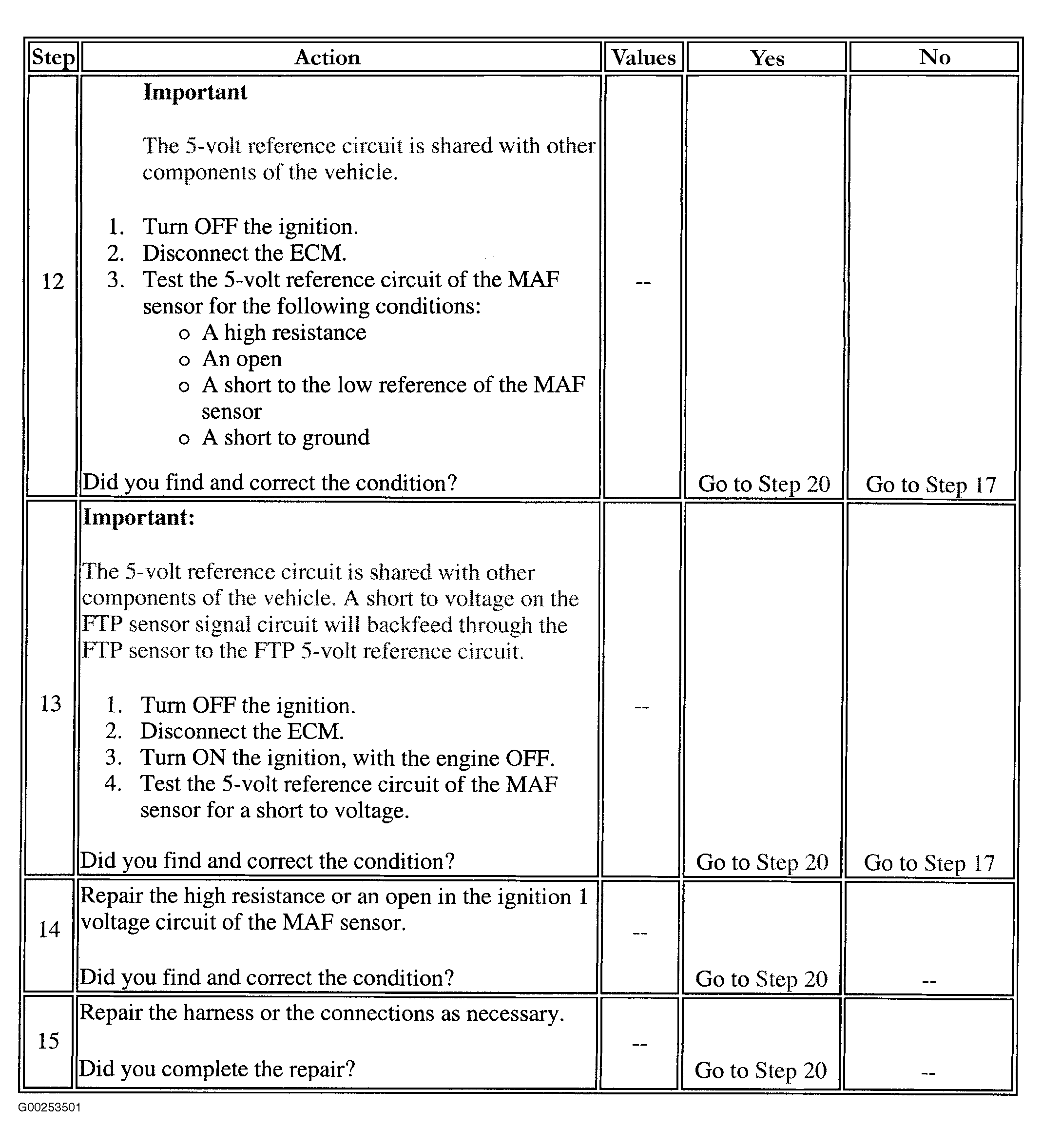

Fig 4: DTC P0102: MAF Sensor Circuit - Low Signal/Frequency (Steps 12-15)
G00253501Courtesy of GENERAL MOTORS CORP.

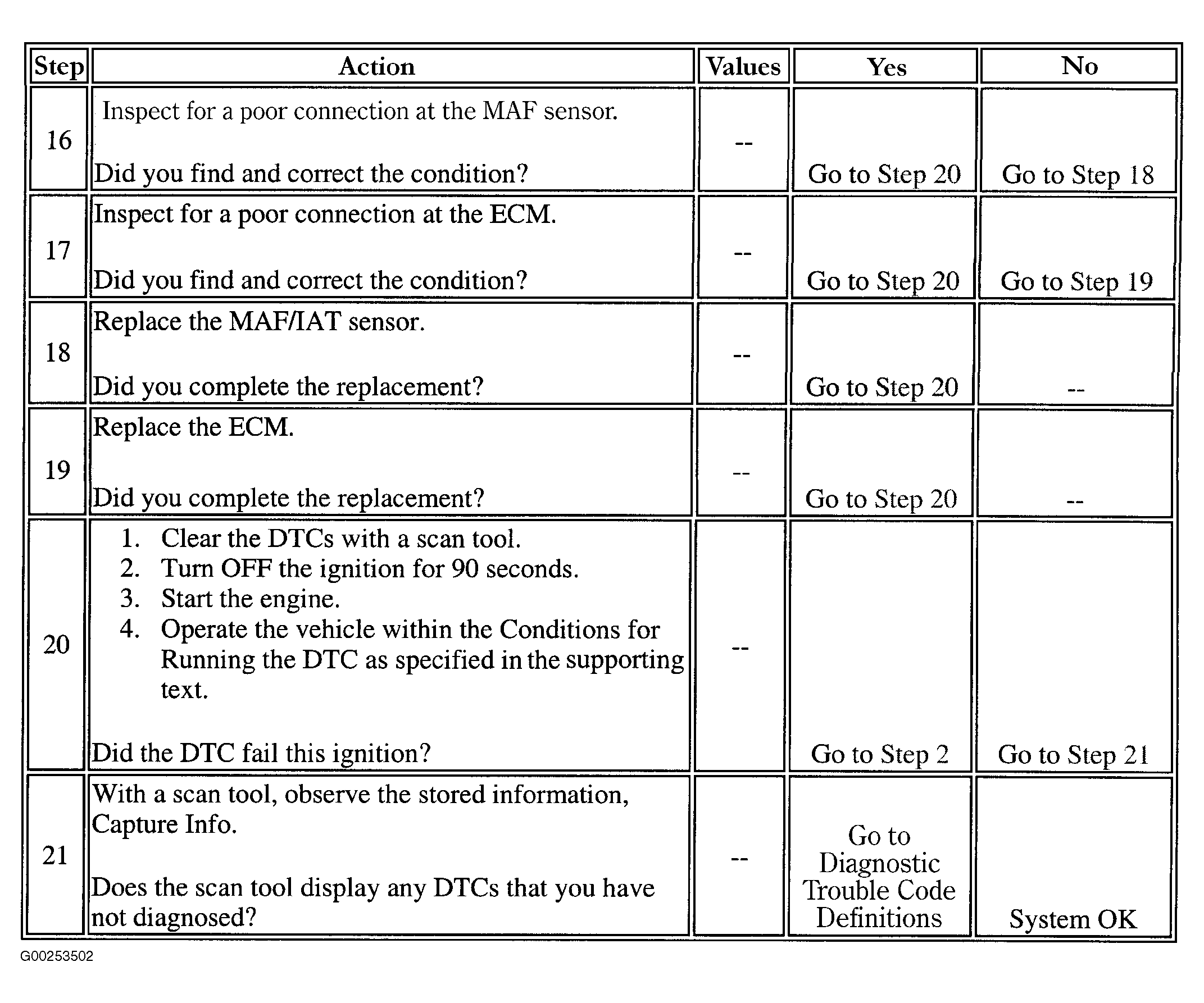

Fig 5: DTC P0102: MAF Sensor Circuit - Low Signal/Frequency (Steps 16-21)
G00253502Courtesy of GENERAL MOTORS CORP.
