Removal Procedure

  1. Remove the door lock switch. Refer to Power Door lock Switch Replacement - Front
  2. Remove the power mirror switch on the driver side door. Refer to Power Mirror Switch Replacement
  3. Using a small flat-bladed tool, remove the tweeter cover.
  4. Remove the upper door trim panel. Refer to Trim Panel Replacement - Upper Extension (Front)  or Trim Panel Replacement - Upper Extension (Rear)

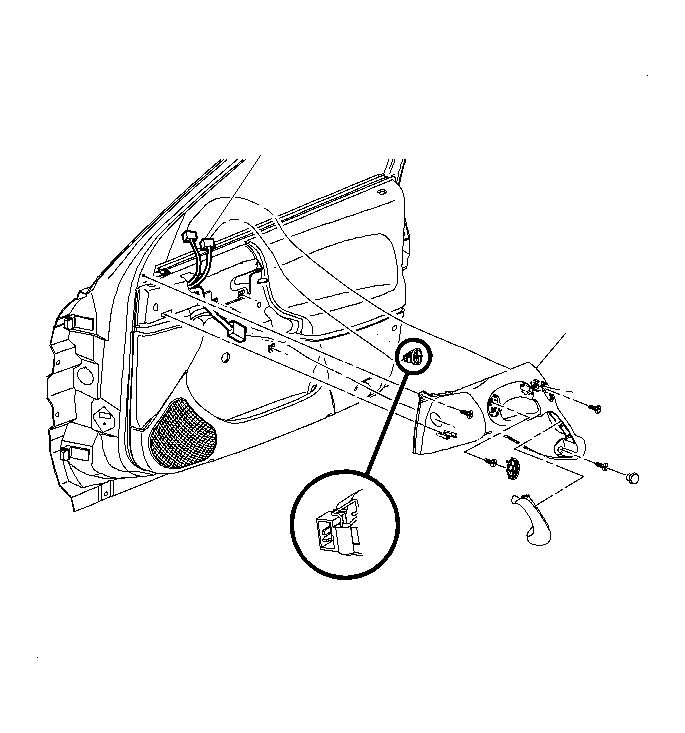

    5. Fig 1: Removing & Installing Front Door Pull Handle
    GM896477Courtesy of GENERAL MOTORS CORP.
  5. Remove the fastener cover from the inner pull handle.
  6. Remove the fasteners.
  7. Remove the pull handle.
