Shift Control Knob: Installation

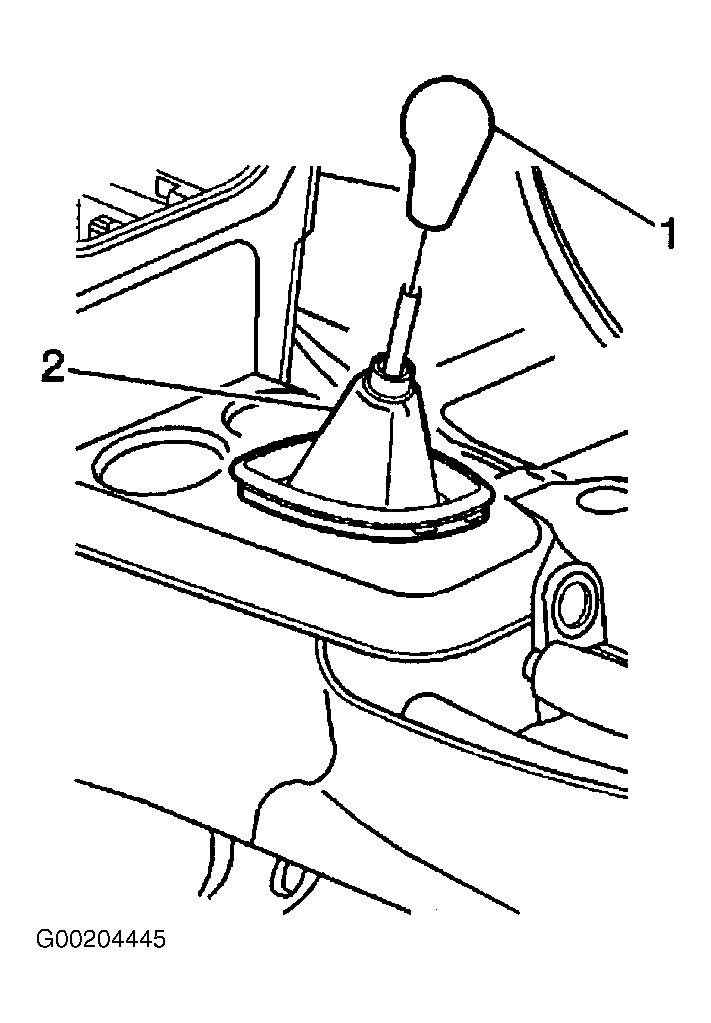

  1. Install the shift control knob to the shift control assembly (1). See Figure .
  2. Install the shift control boot collar to the shift control knob (2) and twist 1/4 turn to lock.
