Power Steering System Schematics

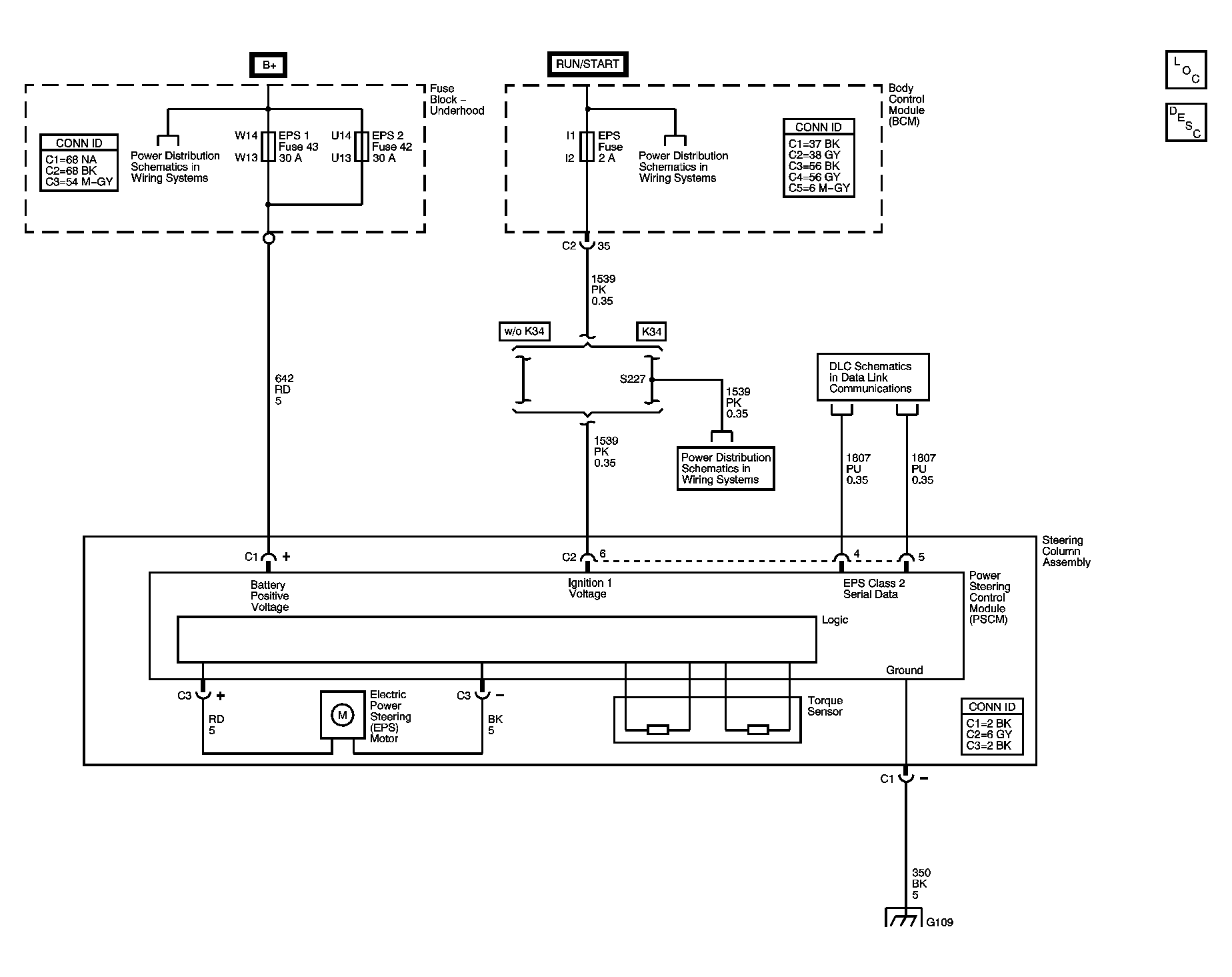

Fig 1: Power Steering System Schematic

GM877601

Courtesy of GENERAL MOTORS CORP.
