Stop Lamp Switch Connector End View - Upper

Stop Lamp Switch - Upper

GM73251Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12033701
  • 2 Way F Metri-Pack 480 Series (GY)
Pin Wire Color Circuit No. Function
A OR 140 Battery Positive Voltage
B L-BU 20 Stop Lamp Switch Signal

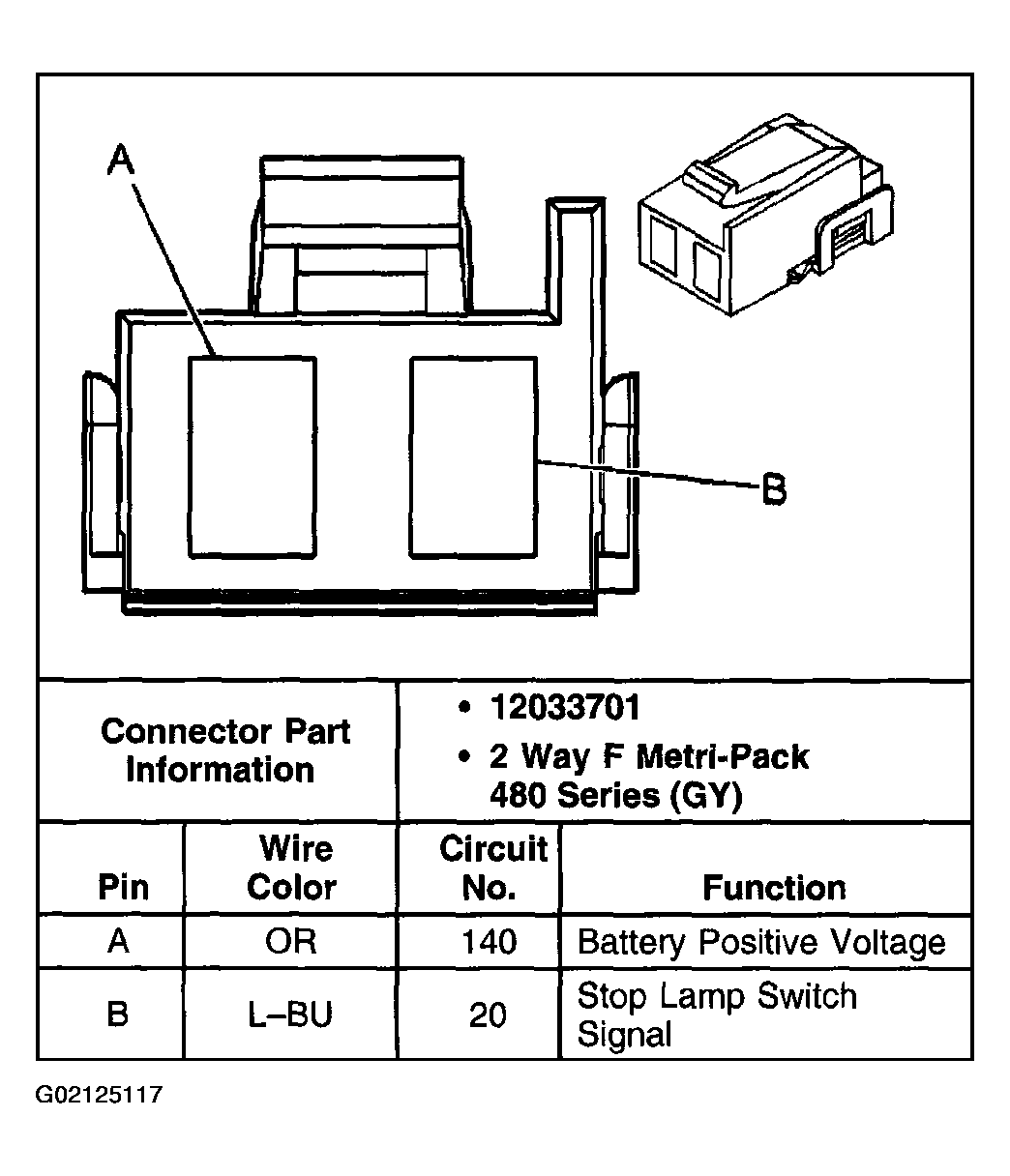

Fig 1: Stop Lamp Switch - Upper
G02125117Courtesy of GENERAL MOTORS CORP.
