Stop Lamp Switch Connector End View - Lower

Stop Lamp Switch - Lower

GM287957Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12041433
  • 2 Way F Metri-Pack 280 Series (BK)
Pin Wire Color Circuit No. Function
A PK 339 Ignition 1 Voltage
B VT 420 Stop Lamp Switch Signal

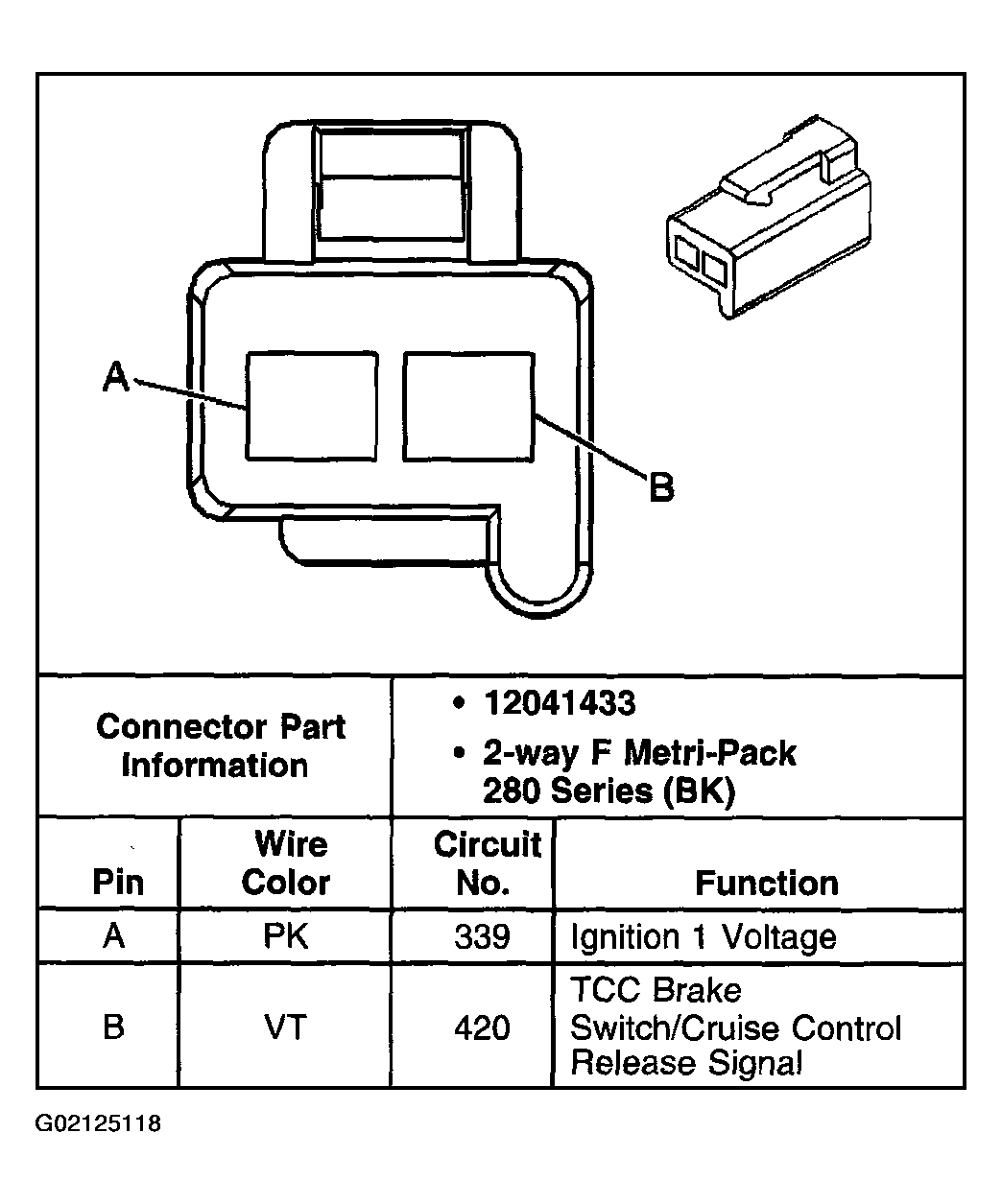

Fig 1: Stop Lamp Switch - Lower
G02125118Courtesy of GENERAL MOTORS CORP.
