Speed Sensor Harness 7-Way Connector End View

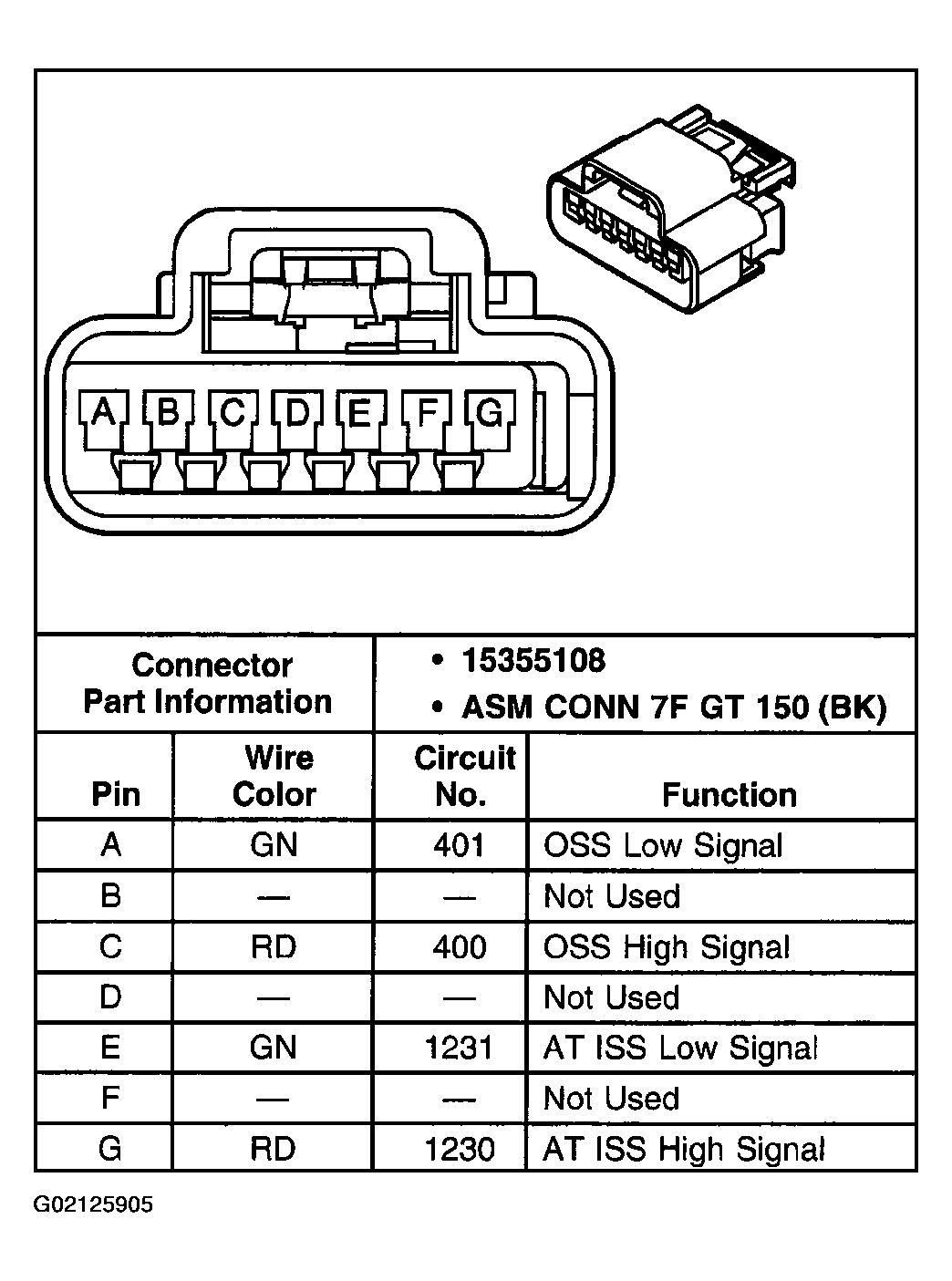

Fig 1: Speed Sensor Harness 7-Way

G02125905

Courtesy of GENERAL MOTORS CORP.
