Home >> Saturn >> 2003 >> Ion 1 Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle - AF23-5 >> Specifications >> Transmission Fluid Temperature (TFT) Sensor Specifications

Transmission Fluid Temperature (TFT) Sensor Specifications

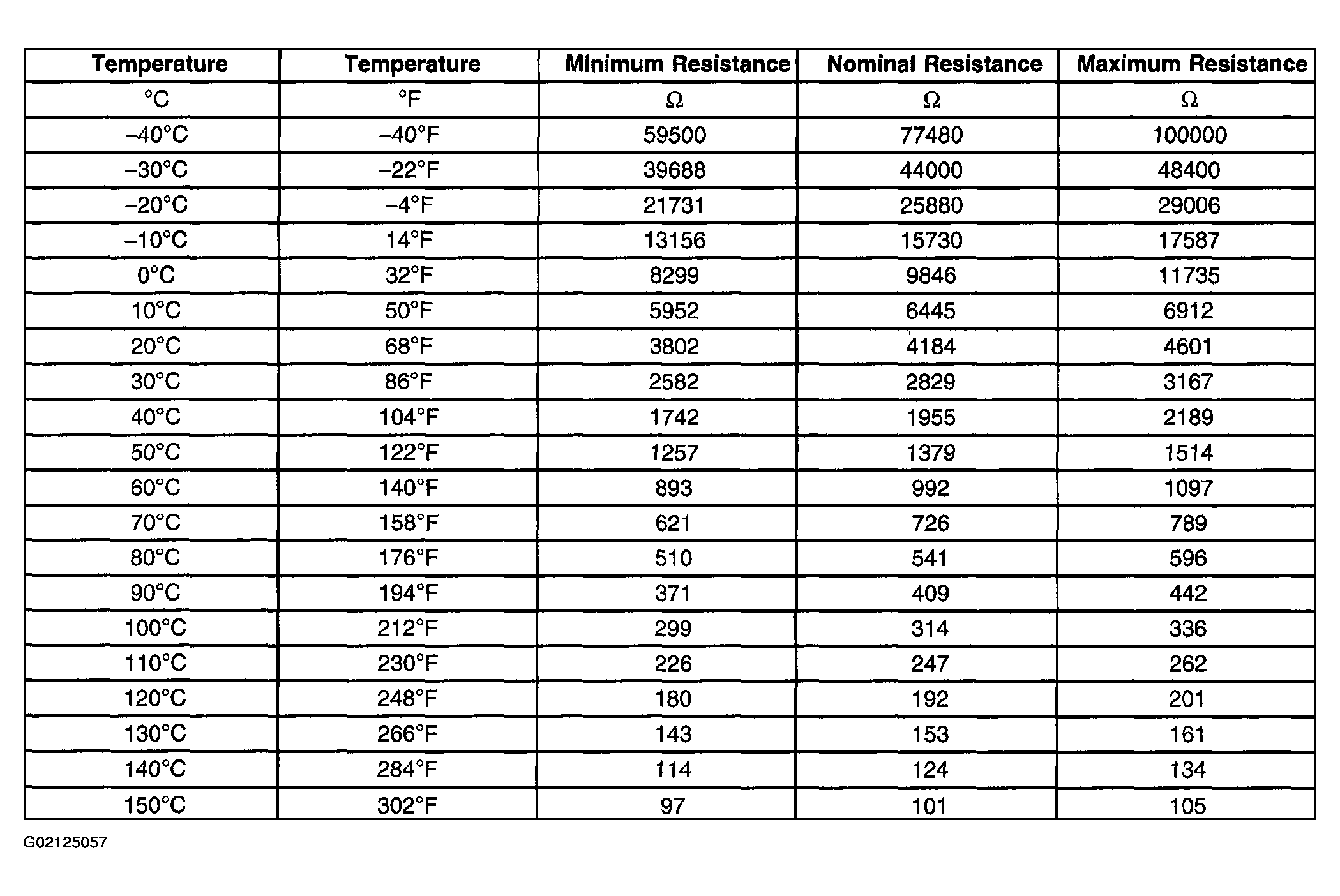

Fig 1: Transmission Fluid Temperature (TFT) Sensor Specifications

G02125057

Courtesy of GENERAL MOTORS CORP.
