Front Differential Assembly Installation

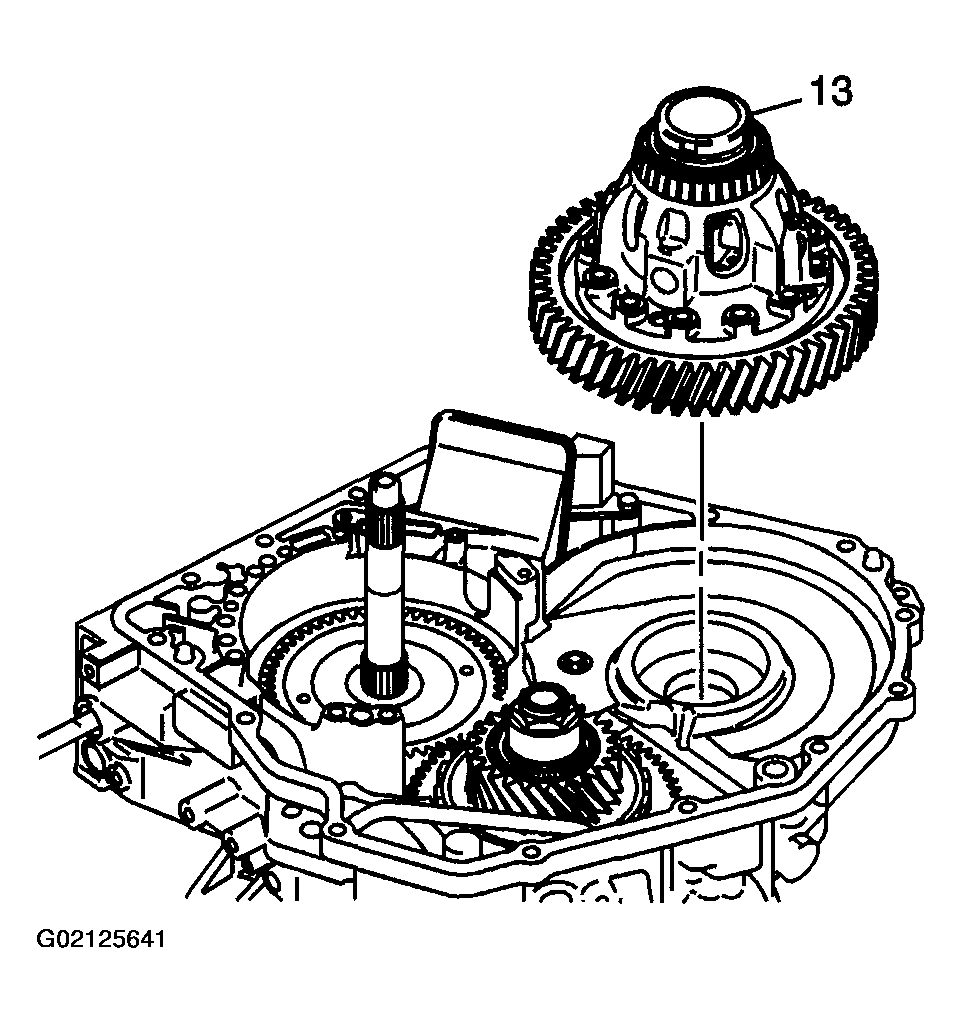

Install the front differential assembly (13) into the transmission case assembly.

Fig 1: Installing Front Differential Assembly

G02125641

Courtesy of GENERAL MOTORS CORP.
