Scan Tool Output Controls

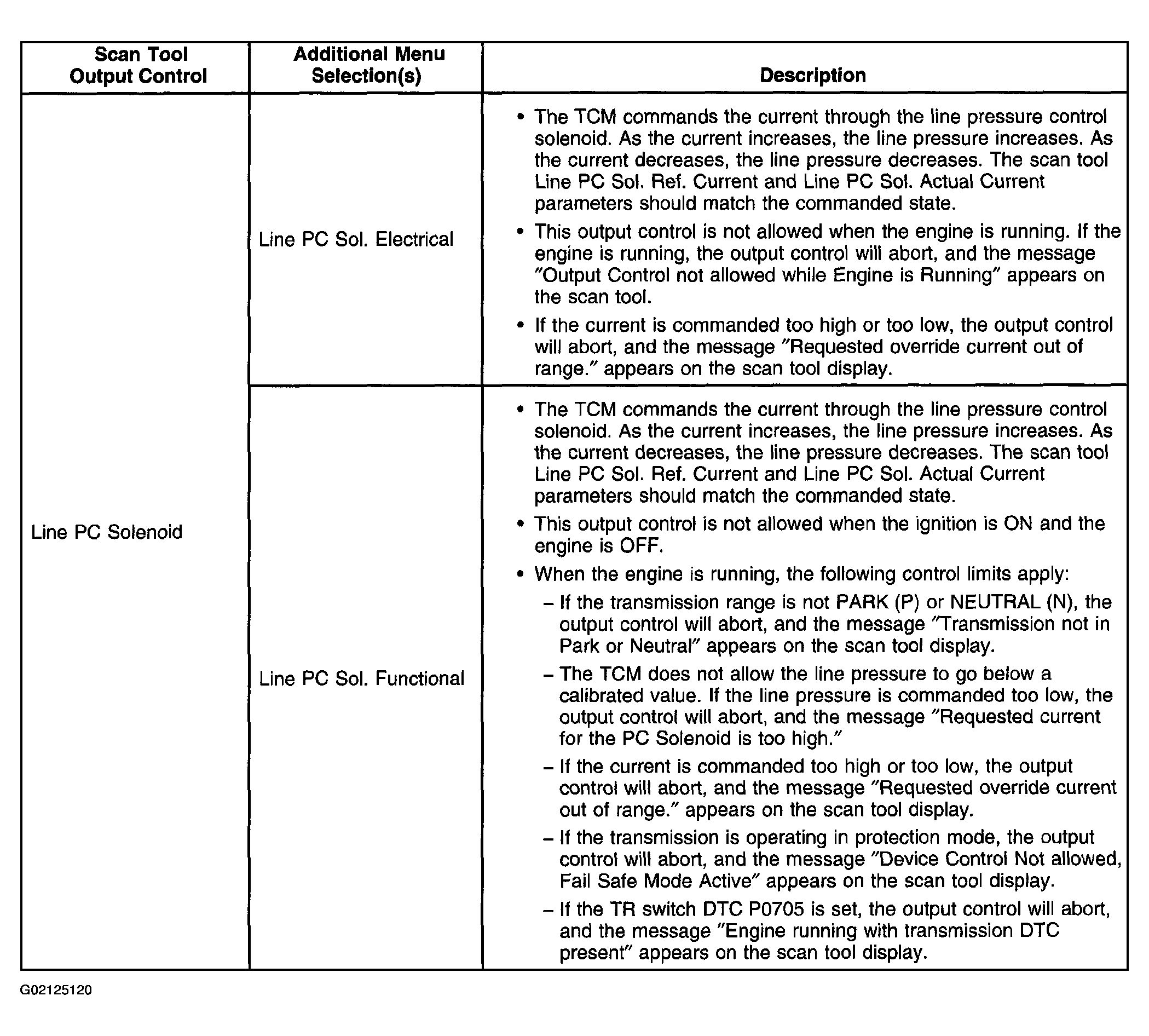

Fig 1: Scan Tool Output Controls (1 Of 4)
G02125120Courtesy of GENERAL MOTORS CORP.

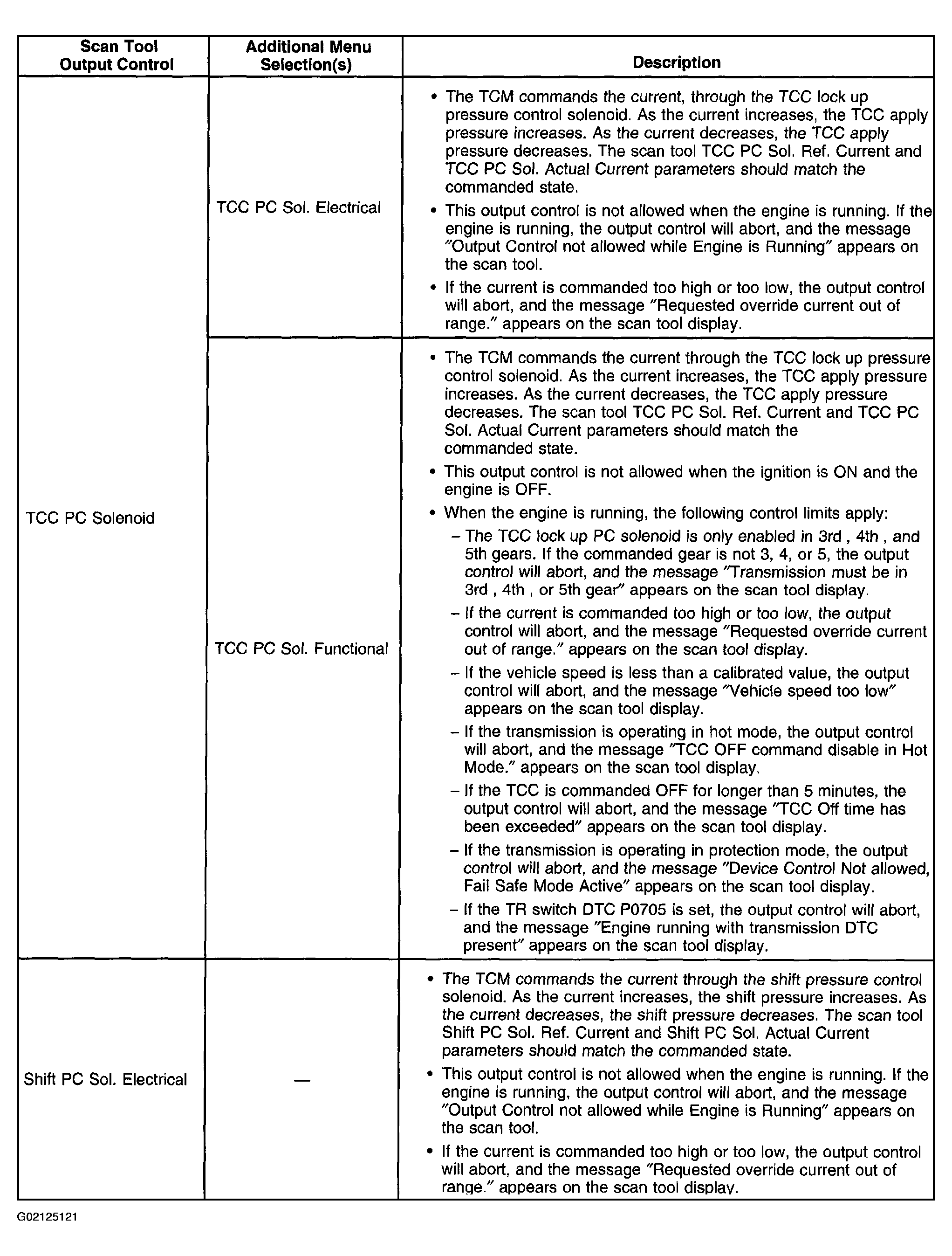

Fig 2: Scan Tool Output Controls (2 Of 4)
G02125121Courtesy of GENERAL MOTORS CORP.

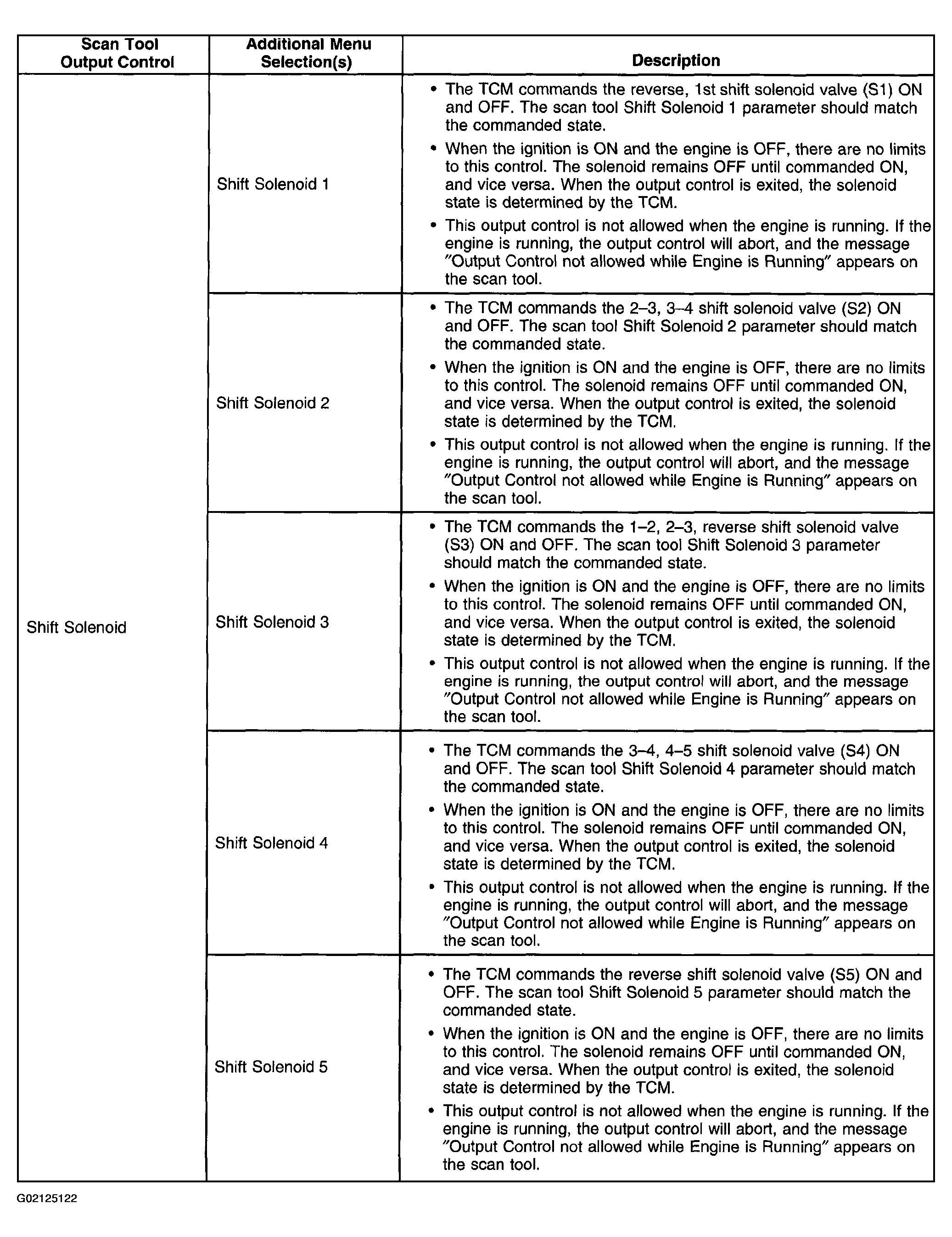

Fig 3: Scan Tool Output Controls (3 Of 4)
G02125122Courtesy of GENERAL MOTORS CORP.

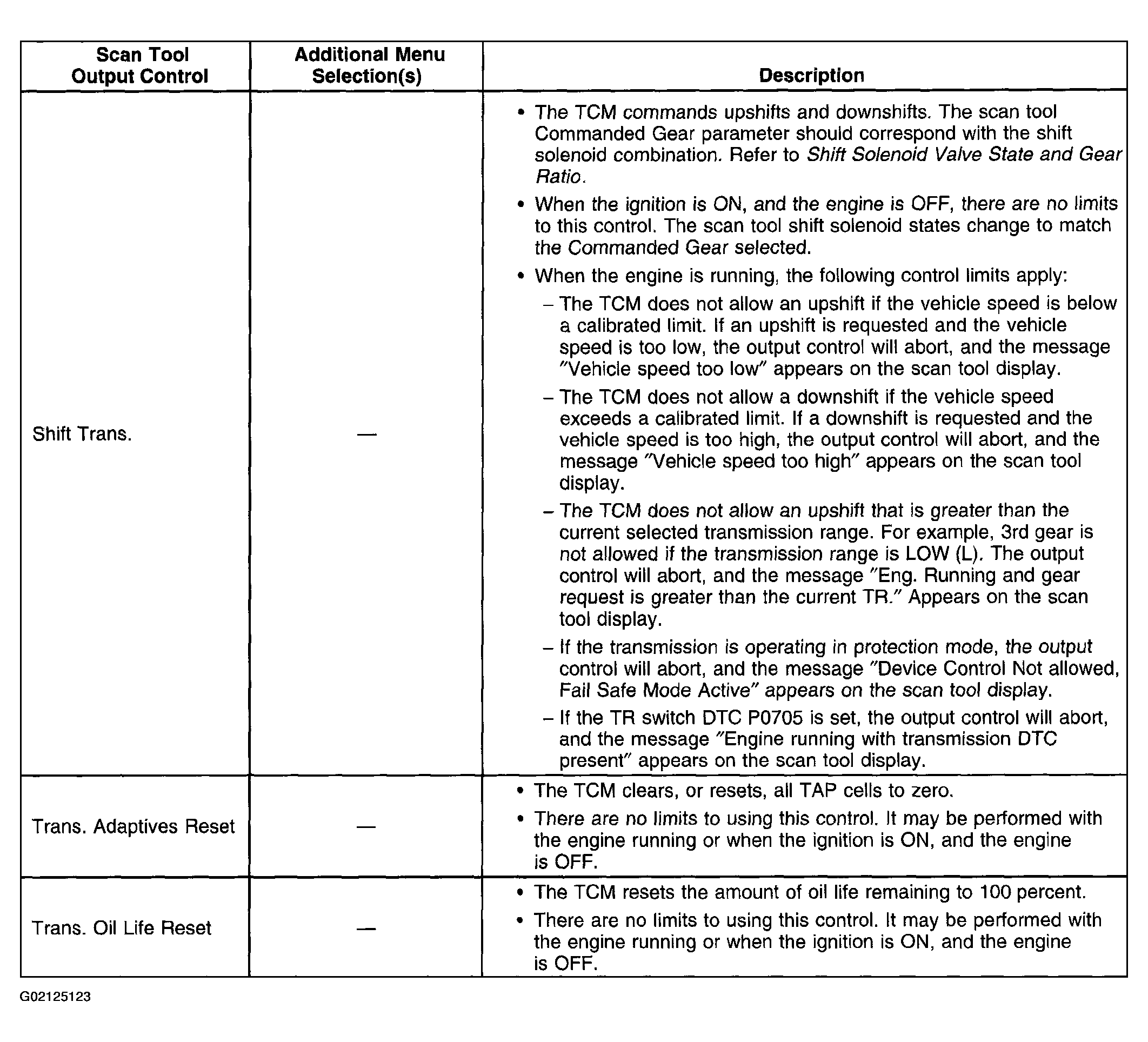

Fig 4: Scan Tool Output Controls (4 Of 4)
G02125123Courtesy of GENERAL MOTORS CORP.
