Automatic Transmission Electronic Component Views

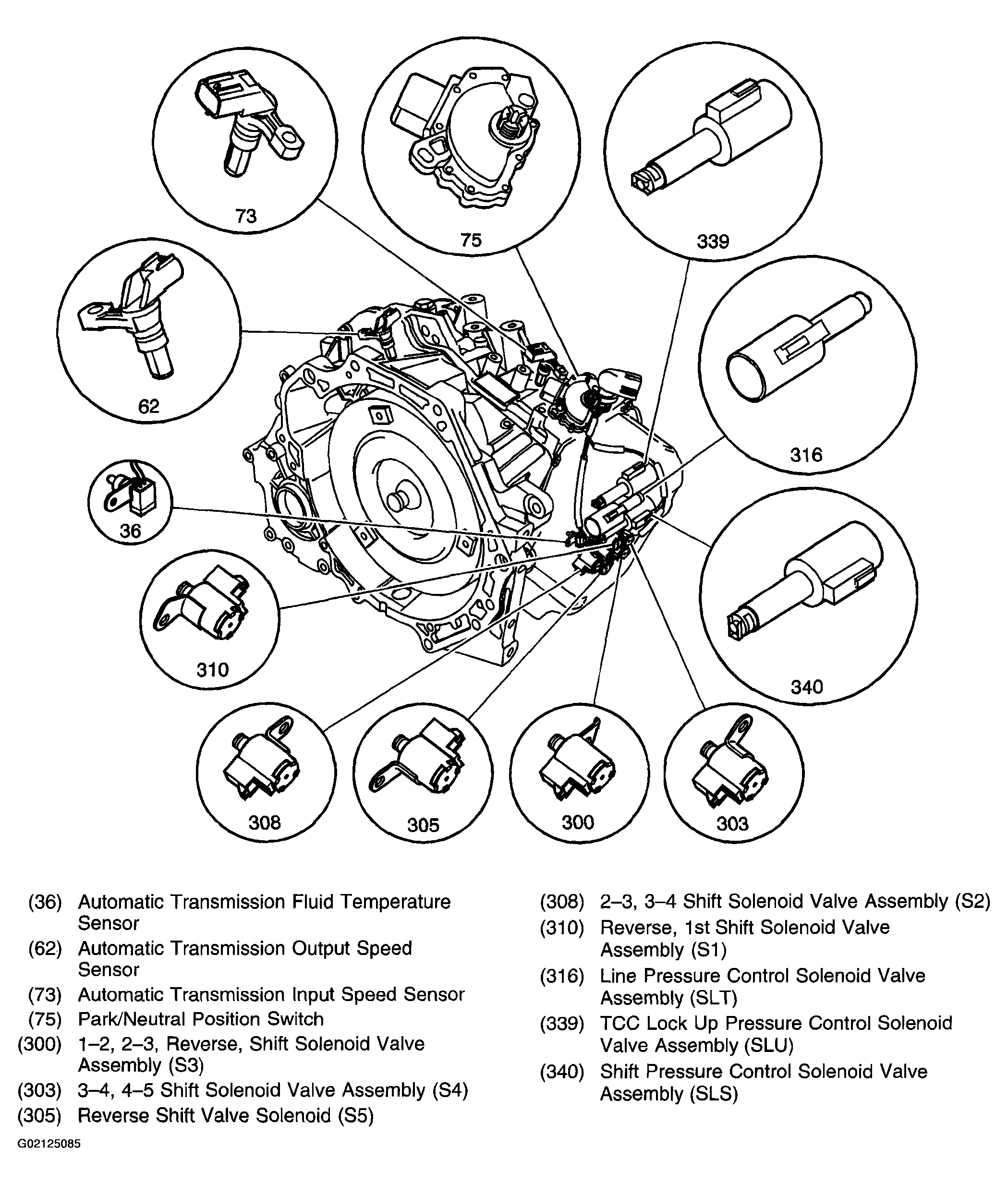

Fig 1: Electronic Component View

G02125085

Courtesy of GENERAL MOTORS CORP.
