Keyless Entry Schematics

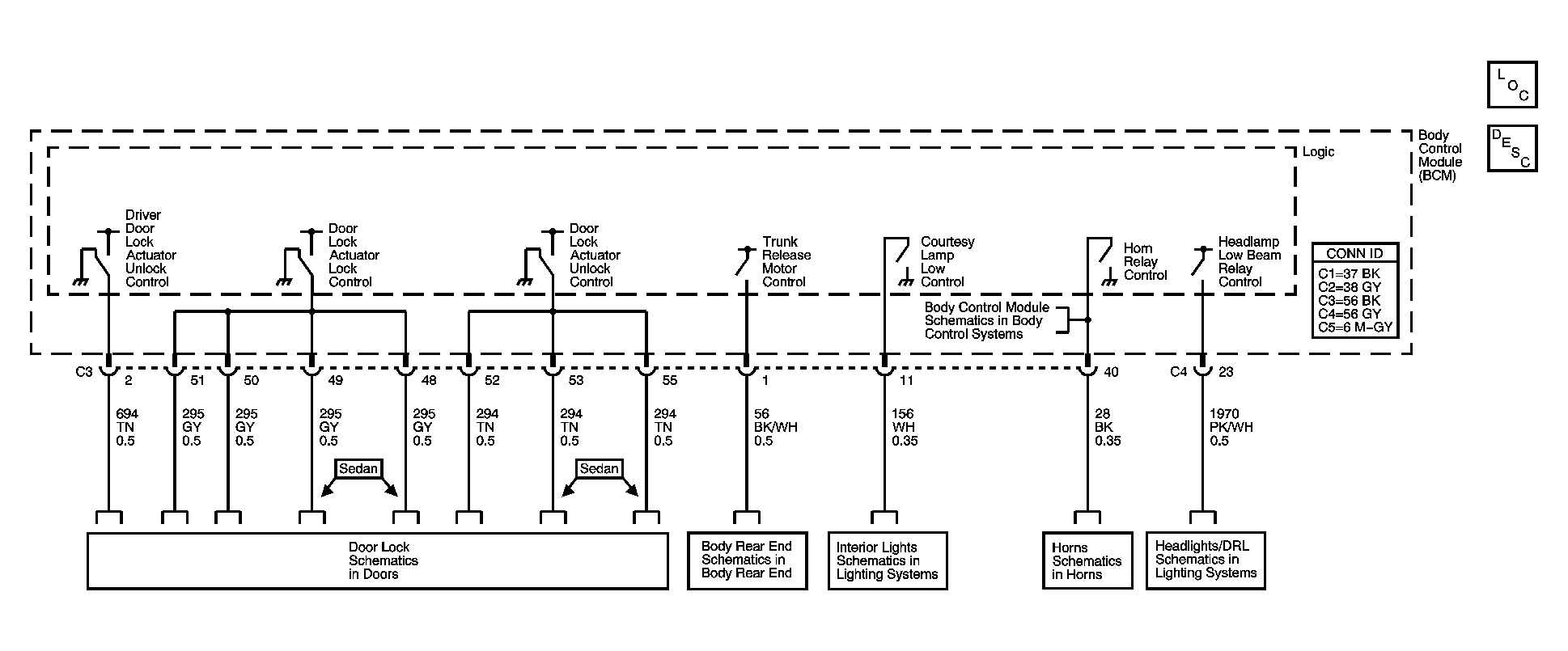

Fig 1: Keyless Entry Schematics

GM884116

Courtesy of GENERAL MOTORS CORP.
