Wiper/Washer Connector End View
Wiper/Washer Connector End View

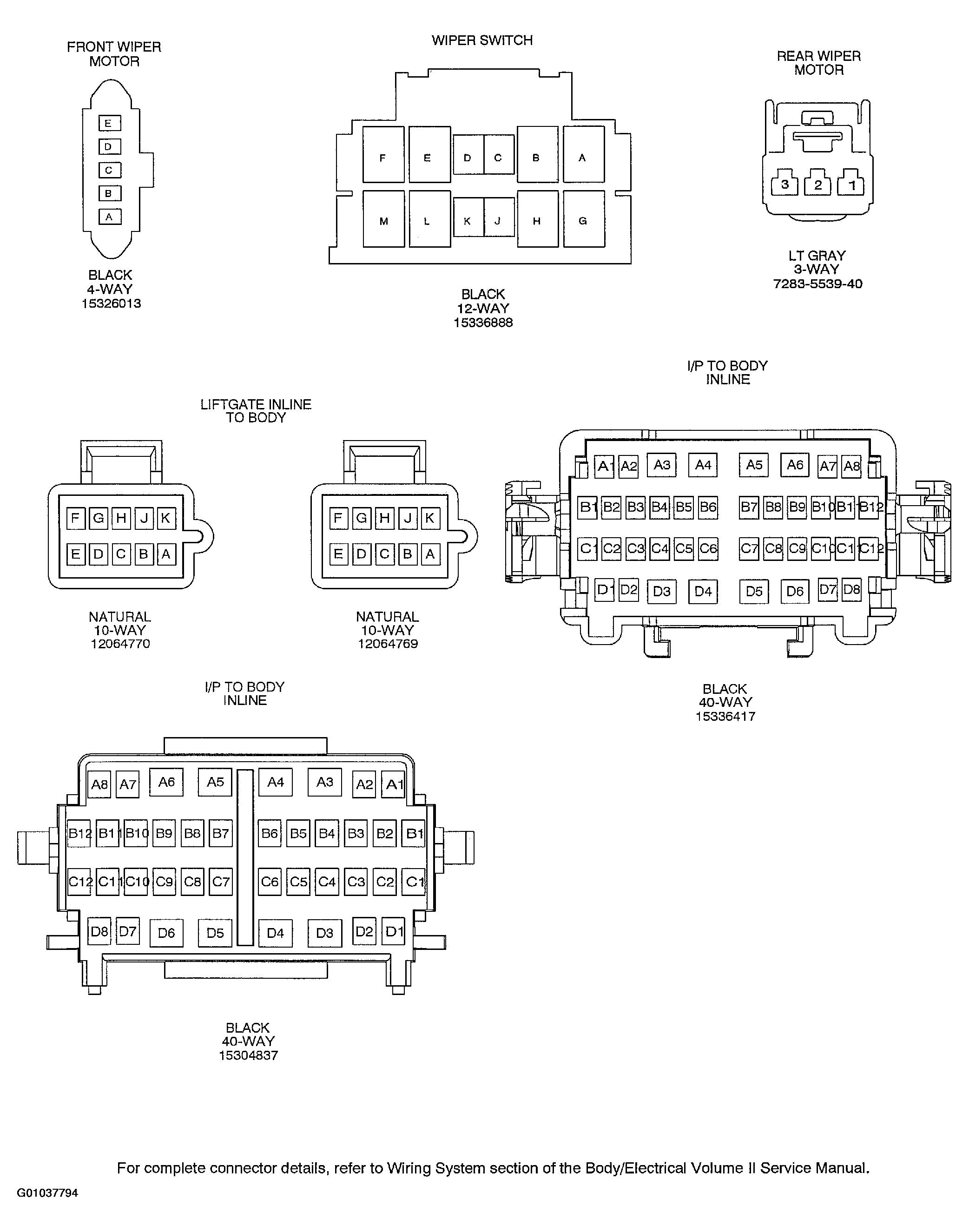

Fig 1: Wiper/Washer
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
