Cruise Control Connector End View (2.2L)

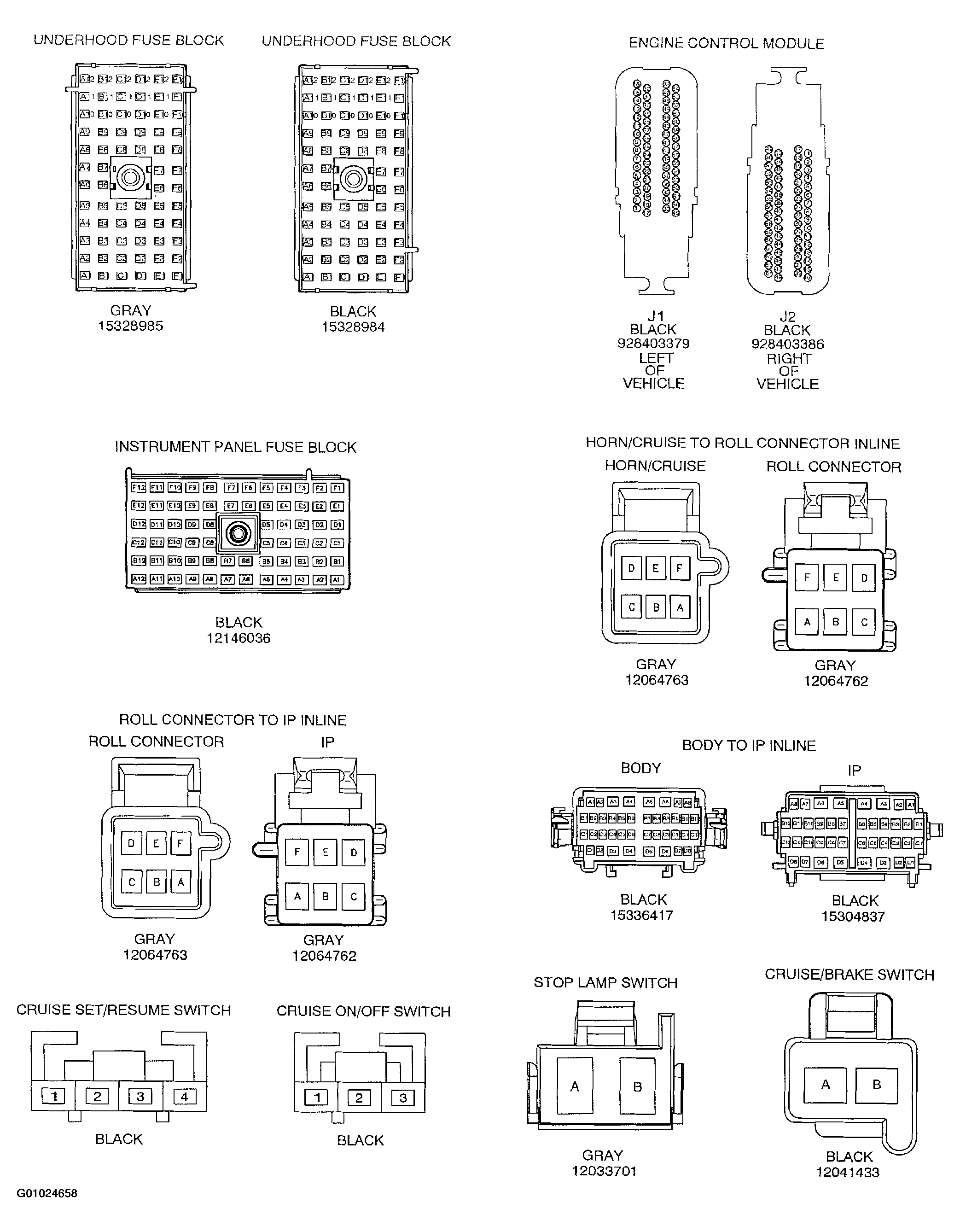

Fig 1: Cruise Control (2.2L)

G01024658

Courtesy of GENERAL MOTORS CORP.
