Checking Fluid Levels

WARNING: This page is about a different variant/trim than selected.
  1. Inspect fluid level only when engine is off. Ensure vehicle is level. The transaxle must be cold. Raise and support vehicle. Remove fluid level check plug. See Fig 1 .
  2. Verify fluid is level with opening. If transaxle is not properly filled, carefully add appropriate fluid until it begins to flow out of fill/check plug. See RECOMMENDED FLUIDS  .
  3. Reinstall fluid level check plug. Tighten fluid level check plug to specification. See TORQUE SPECIFICATIONS  . Lower vehicle.

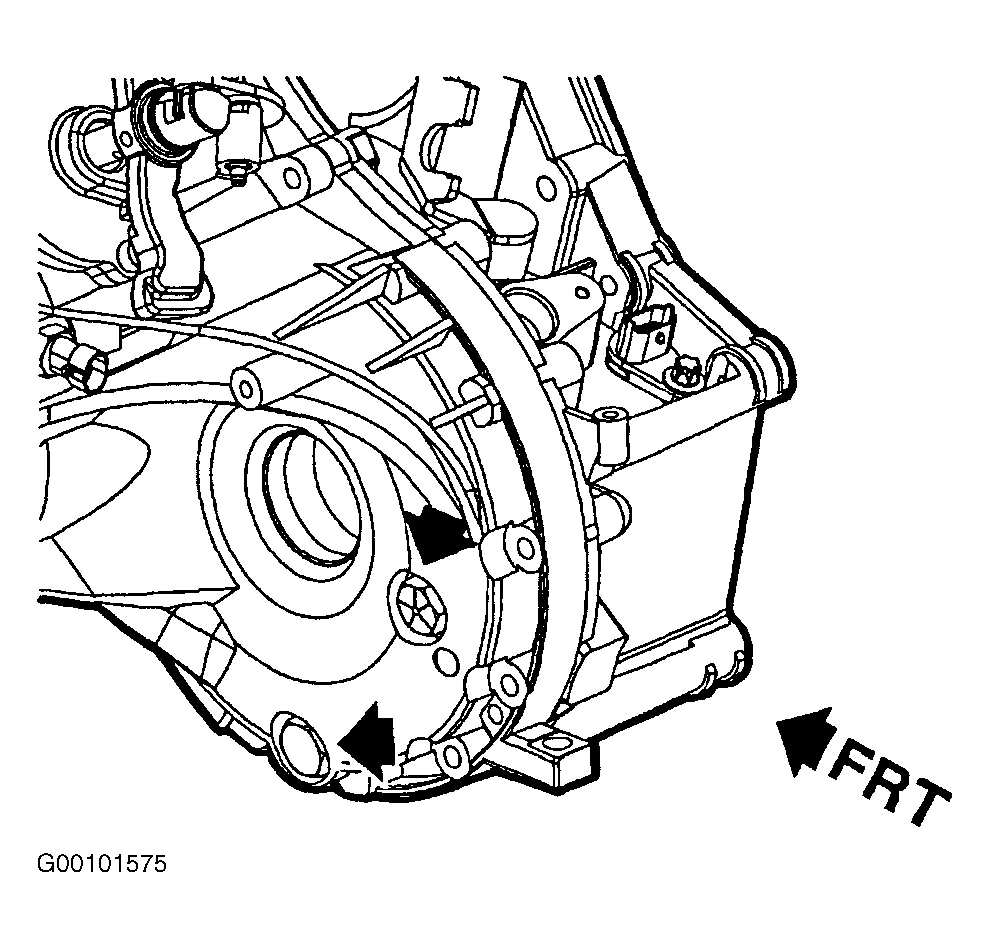

Fig 1: Locating Transaxle Drain Plug & Fill Plugs
G00101575Courtesy of GENERAL MOTORS CORP.
